Hirschmann RSP 25 User Manual

26
Installation RSP 20/25/30/35
Release 15 12/2017
1.5.4 100/1000 Mbit/s F/O port (optional)
This port is an SFP slot.
The 100/1000 Mbit/s F/O port allows you to connect network components
according to the IEEE 802.3 100BASE-FX/1000BASE-SX/1000BASE-LX
standard.
This port supports:
 1000 Mbit/s full duplex
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
State on delivery:
 1000 Mbit/s full duplex when using a Gigabit Ethernet SFP transceiver
 100 Mbit/s full duplex when using a Fast Ethernet SFP transceiver

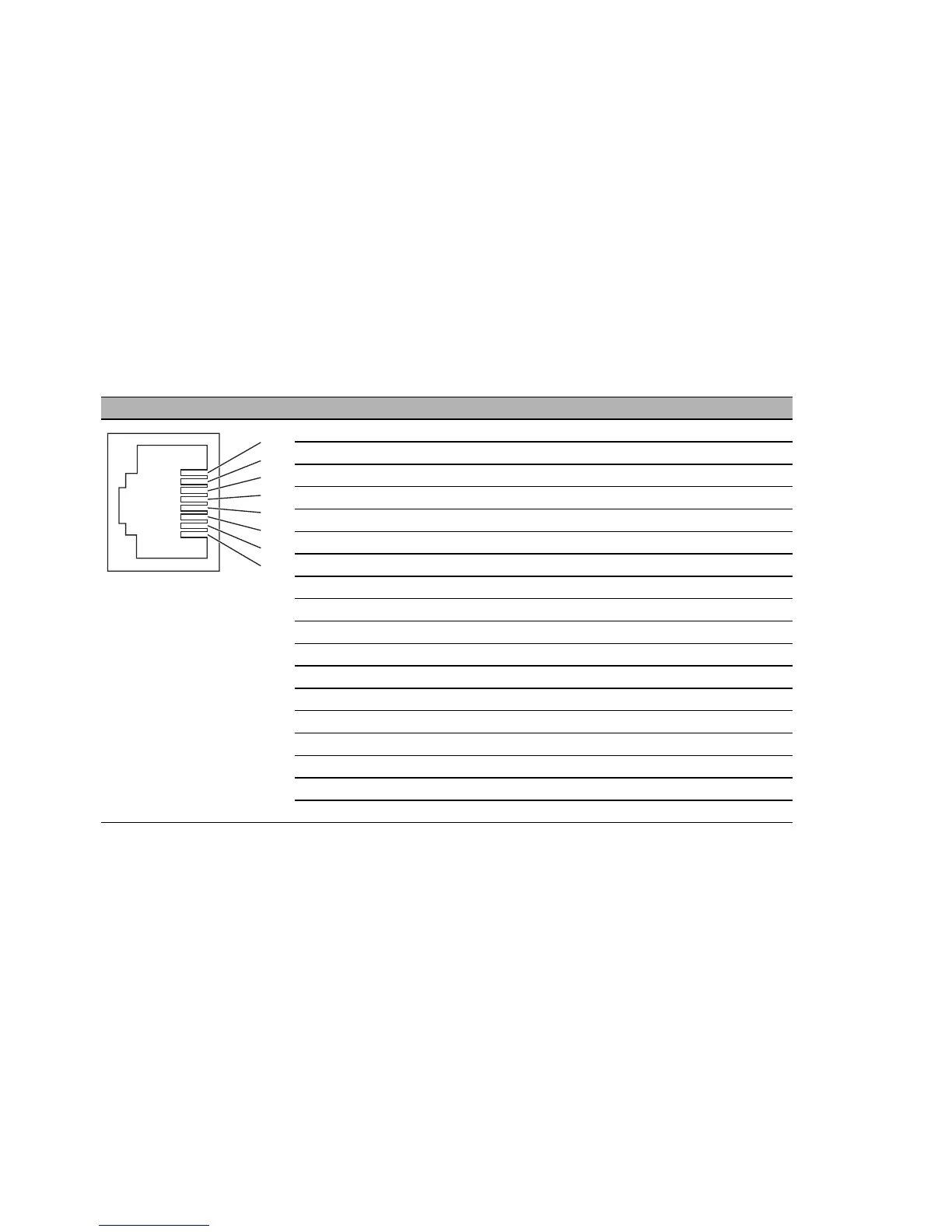

1.5.5 Pin assignments
RJ45 Pin 10/100 Mbit/s 1000 Mbit/s PoE
MDI mode
1 TX+ BI_DA+ Positive V
PSE
a
a. Phantom supply
2TX− BI_DA− Positive V
PSE
a
3 RX+ BI_DB+ Negative V
PSE
a
4 — BI_DC+ Positive V
PSE
b
b. Spare pair supply
5— BI_DC− Positive V
PSE
b
6RX− BI_DB− Negative V
PSE
a
7 — BI_DD+ Negative V
PSE
b
8— BI_DD− Negative V
PSE
b
MDI-X mode
1 RX+ BI_DB+ Negative V
PSE
a
2RX− BI_DB− Negative V
PSE
a
3 TX+ BI_DA+ Positive V
PSE
a
4 — BI_DD+ Positive V
PSE
b
5— BI_DD− Positive V
PSE
b
6TX− BI_DA− Positive V
PSE
a
7 — BI_DC+ Negative V
PSE
b
8— BI_DC− Negative V
PSE
b
1
2
3
4
5
6
7
8

Hirschmann RSP 25 Specifications

General

Brand	Hirschmann
Model	RSP 25
Category	Switch
Language	English
