Installation RSP 20/25/30/35
Release
15
12/2017
37
2.5.2 Supply voltage with the characteristic value KK
You will find information on the characteristic values here:
“Device name and product code” on page 19
You have the option of supplying the supply voltage redundantly, without
load distribution.
Both supply voltage inputs are uncoupled.
With a redundant supply, the supply voltage 1 (upper voltage input on the
device) has priority.

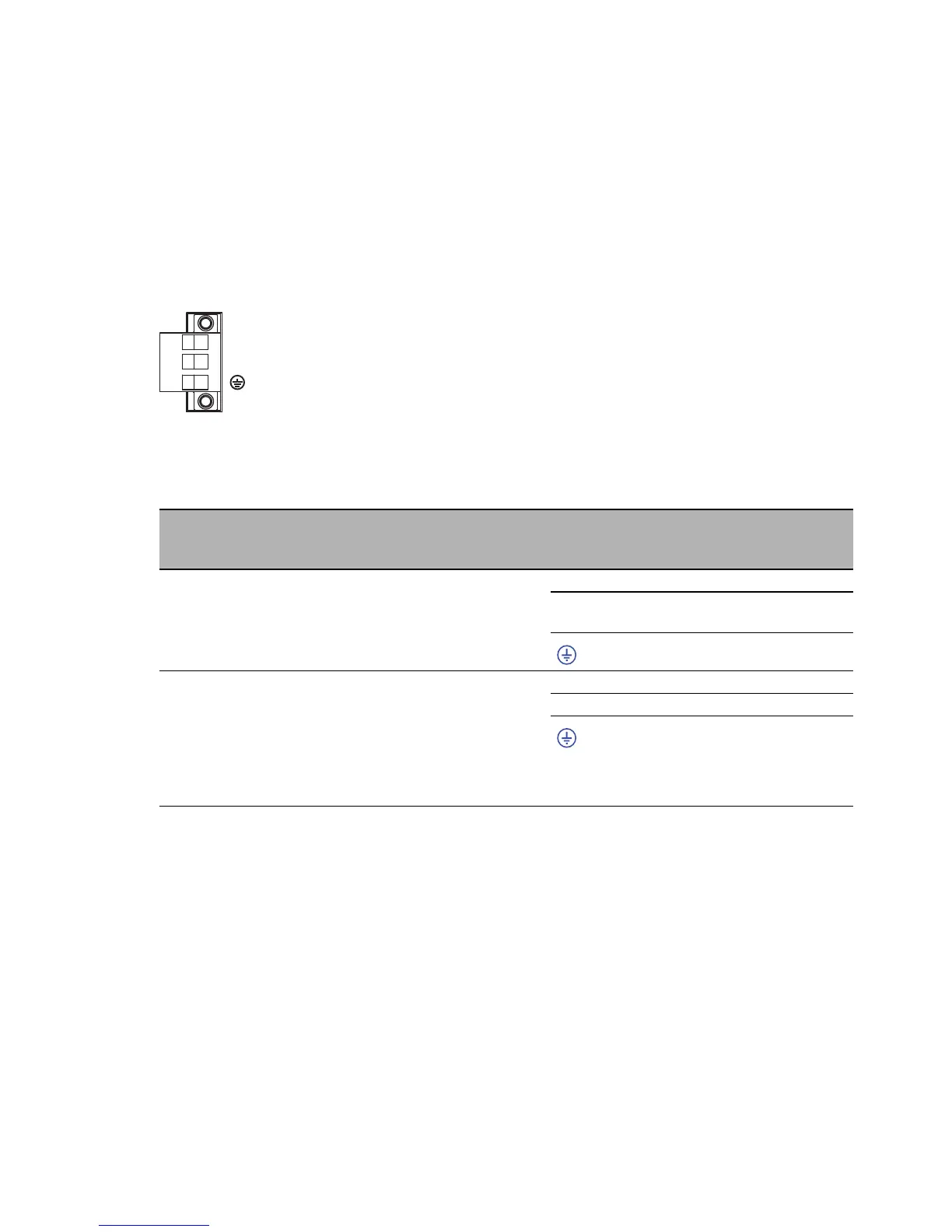

Figure 4: Supply voltage with the characteristic value KK: 3-pin terminal block with
screw locking
Type of the voltages
that can be
connected
Specification of the supply
voltage
Pin assignment
DC voltage Rated voltage range DC
60 V DC ... 250 V DC
Voltage range DC including
maximum tolerances
48 V DC ... 320 V DC
+/L Plus terminal of the supply voltage
−/N Minus terminal of the supply
voltage
Protective conductor
AC voltage Rated voltage range AC
110 V AC ... 230 V AC,
50 Hz ... 60 Hz
Voltage range AC including
maximum tolerances
88 V AC ... 265 V AC,
47 Hz ... 63 Hz
+/L Outer conductor
−/N Neutral conductor
Protective conductor
Table 7: Supply voltage with characteristic value KK: type and specification of the
supply voltage, pin assignment
N
L
