Installation and Maintenance
23
(1)
Prepare a polyvinyl chloride pipe with a 32mm outer diameter(24K,36K,42K,48K,60K).

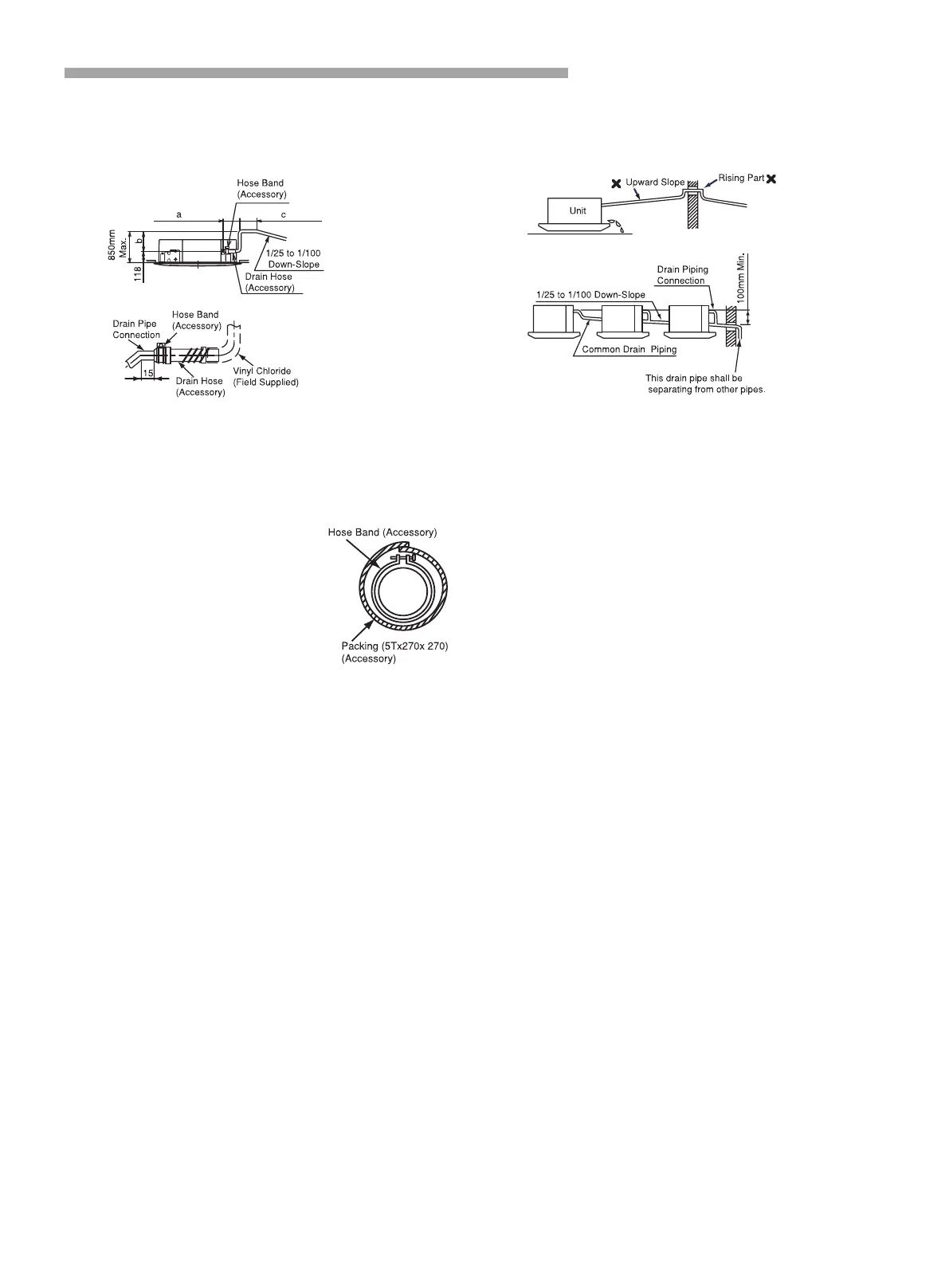

(2) Fasten the tubing to drain hose with the adhesive agent and factory-supplied clamp . The
drain piping must be performed with a down-slope pitch of 1/25 to 1/100.
*The total length of a+b+c :
For 12K,18K: a≤300，
*In case of lifting the drain pipe at outlet part, perform the drain piping work as shown in the
above figure.
(3) Insulate the drain pipe after connecting the drain hose.
Prepare a polyvinyl chloride pipe with a 21mm inside diameter(12K,18K).
b≤500，c≤50
For 24K,36K,42K,48K,60K: a≤300，b≤850，c≤50,a+b+c≤1100
