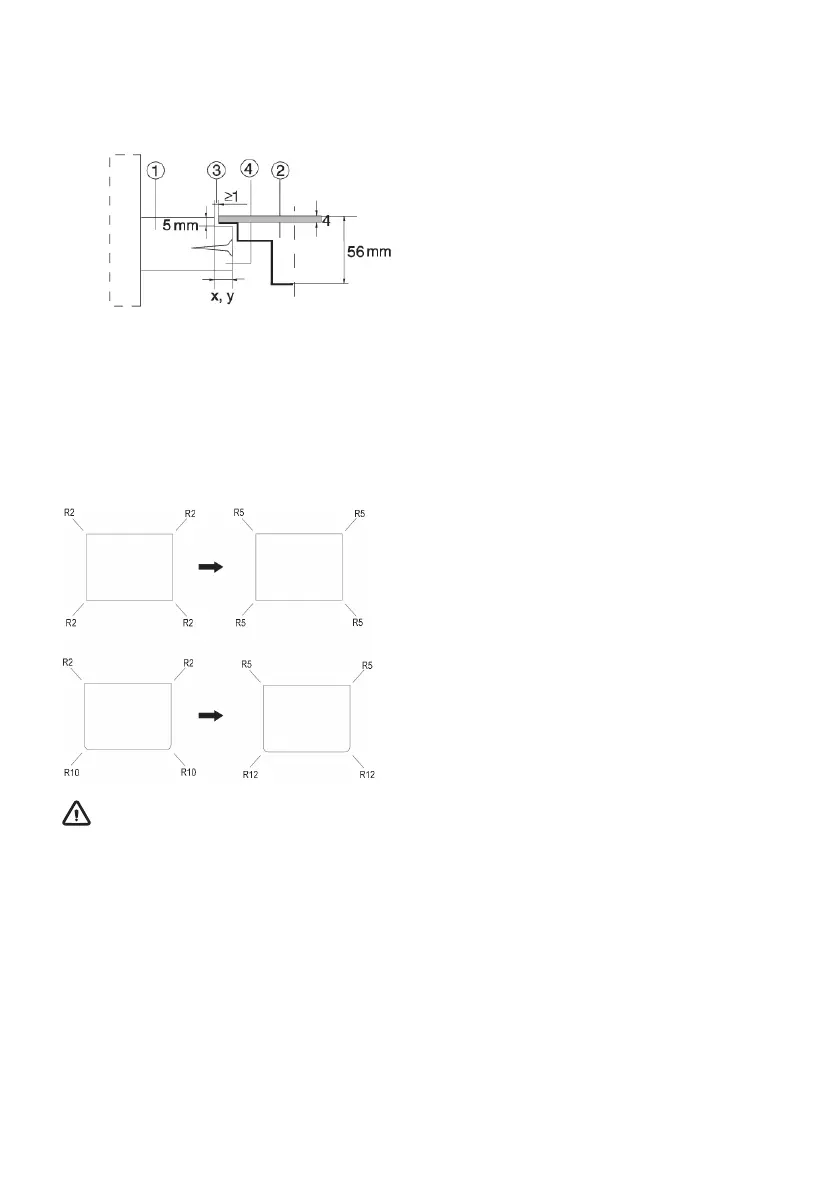

Given the margin of error (tolerance) for the glass ceramic plate of the appliance, and the cutout in
the countertop, the slot is adjustable (min.2 mm).
Ceramic, wooden or glass countertop
1. Countertop
2. Appliance
3. Slot
4. Wooden frame, thickness 16 mm
Given the margin of error (tolerance) for the glass ceramic plate of the appliance, and the cut-out in
the countertop, the slot is adjustable (min. 2mm). Install the wooden frame 5.5mm below the upper
edge of the countertop (see figure).
Observe the radii of glass edges (R10, R2) when making the cut-out.
CUT-OUTGLASS
WARNING!
If the oven is installed under a flush-mounted cooking hob, then the worktop thickness should
be at least 45 mm.
