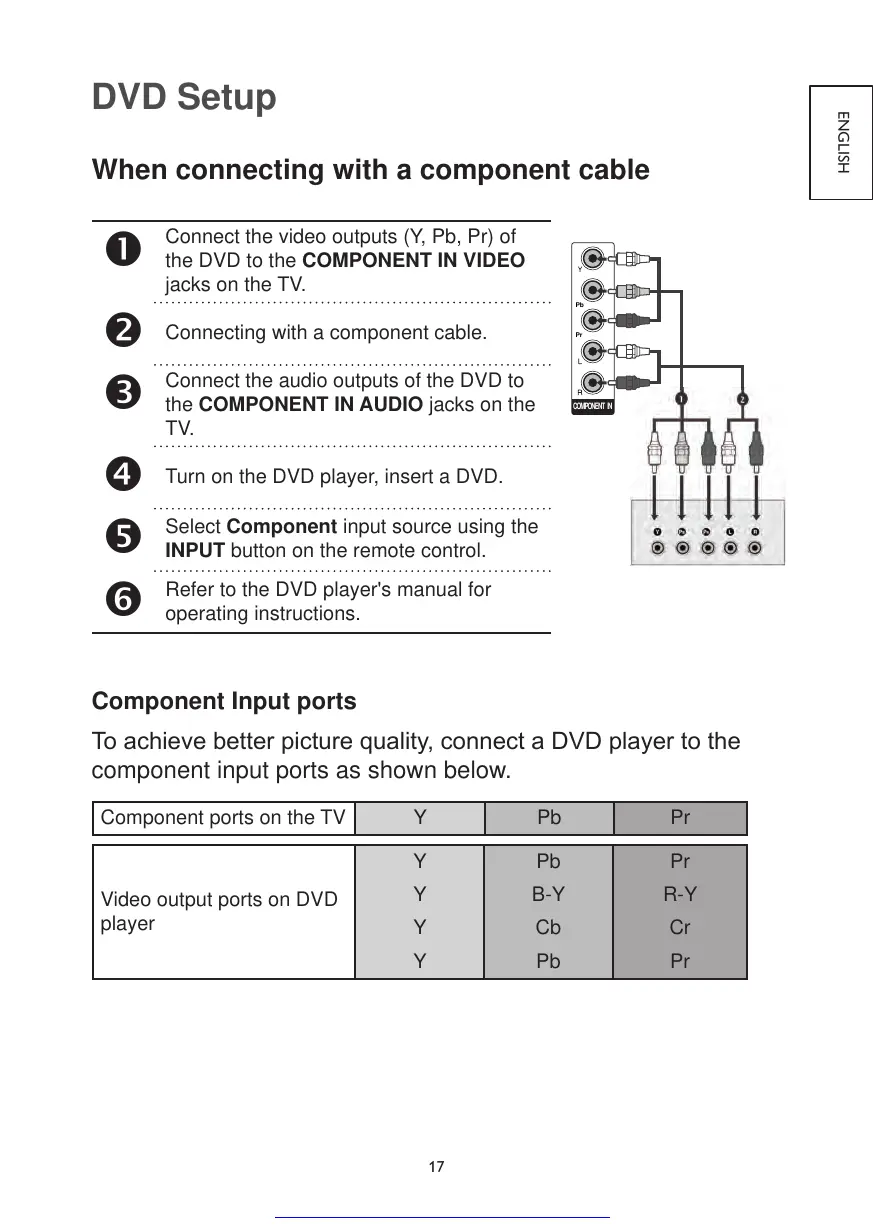

DVD Setup
When connecting with a component cable
Connect the video outputs (Y, Pb, Pr) of
the DVD to the COMPONENT IN VIDEO
jacks on the TV.
Connecting with a component cable.
Connect the audio outputs of the DVD to
the COMPONENT IN AUDIO jacks on the
TV.
Turn on the DVD player, insert a DVD.
Select Component input source using the
INPUT button on the remote control.
Refer to the DVD player's manual for
operating instructions.
Component Input ports
Toachievebetterpicturequality,connectaDVDplayertothe
component input ports as shown below.
Component ports on the TV Y Pb Pr
Video output ports on DVD
player
Y Pb Pr
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
