Hitachi C 10FCG User Manual

47

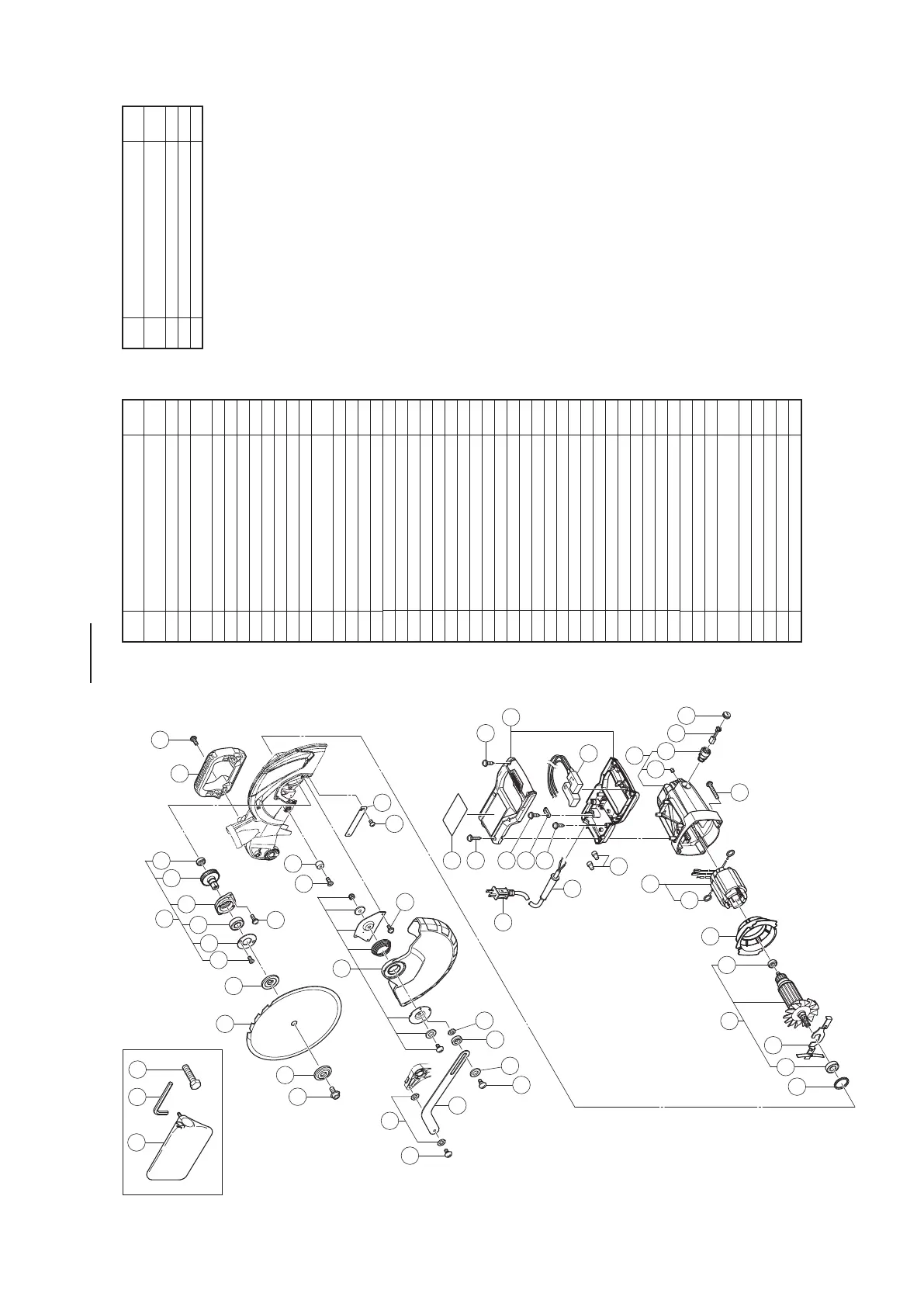

C10FCG
ITEM
NO.
PART NAME Q’TY
6
MACHINE SCREW (W/WASHERS)
M6X20
3
71 LEFT HEX. SOCKET BOLT M7 1
72 WASHER (E) 1 73
TCT SAW BLADE 255MM-D15.88 HOLE-NT24
1
74 WASHER (D) 1
75 SPINDLE ASS’Y 1
76 SEAL LOCK FLAT HD. SCREW M4X10 2
77 BEARING COVER 1
78 BALL BEARING 6003VVCMPS2L 1
79 BEARING HOLDER 1
80 SPINDLE AND GEAR SET 1
81 BALL BEARING 608VVC2PS2L 1
82
MACHINE SCREW (W/SP. WASHER) M5X16
2
83 HANDLE 1
84 SPECIAL SCREW M6 1
85 WASHER M7 2 86 LOWER GUARD 1
87 FLAT HD. SCREW M6X16 1
88 CUSHION 1
89 LINK 1
90 SPECIAL SCREW (C) M5 1
91 WASHER M10 1
92 SPACER (B) 1
93 SPRING WASHER M5 (10 PCS.) 1
94 MACHINE SCREW (W/WASHER) M4X8 3
95 MACHINE SCREW M4X8 2
96 SPINDLE COVER 1
97 CORD 1
98 NAME PLATE 1
99 TAPPING SCREW (W/FLANGE) D4X25 2
100 TAPPING SCREW (W/FLANGE) D4X16 2
101 CORD CLIP 1
102 TAPPING SCREW (W/FLANGE) D4X20 6
103 CORD ARMOR D10.1 1
104 CONNECTOR 50092 (10 PCS.) 2
105 RUBBER RING 1
106 ARMATURE ASS’Y 110V-127V 1
107 BALL BEARING 6002DDCMPS2L 1
108 LOCK LEVER 1
109 BALL BEARING 608VVC2PS2L 1
110 FAN GUIDE 1
111 BRUSH TERMINAL 2
112 STATOR (A) ASS’Y 120V 1
113 SWITCH HANDLE 1
114
SWITCH (3P FASTON TYPE) W/O
LOCK
1
115 HOUSING ASS’Y 1
116 HEX. SOCKET SET SCREW M5X8 2
117 BRUSH HOLDER 2
118 CARBON BRUSH (1 PAIR) 2
119 BRUSH CAP 2
ITEM
NO.
PART NAME Q’TY
120
MACHINE SCREW (W/WASHERS)
M5X45
4
501 DUST BAG 1
502 HEX. BAR WRENCH 5MM 1
503 BOLT M10X35 1
501
503
91
71
72
73
74
75
77
76
78
79
80
81
82
83
6
84
85
89
90
92
93
86
87
88
94
95
96
98 99
97
100 101 102
102
113
114
103
104
115
116
117
118
119
105
106
107
108
109
110
112
111
120
502
0000BookC10FCG.indb470000BookC10FCG.indb47 2017/03/0814:01:122017/03/0814:01:12
