7
English
ACCESSORIES
WARNING:
Accessories for this power tool are mentioned in this Instruction Manual.
The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

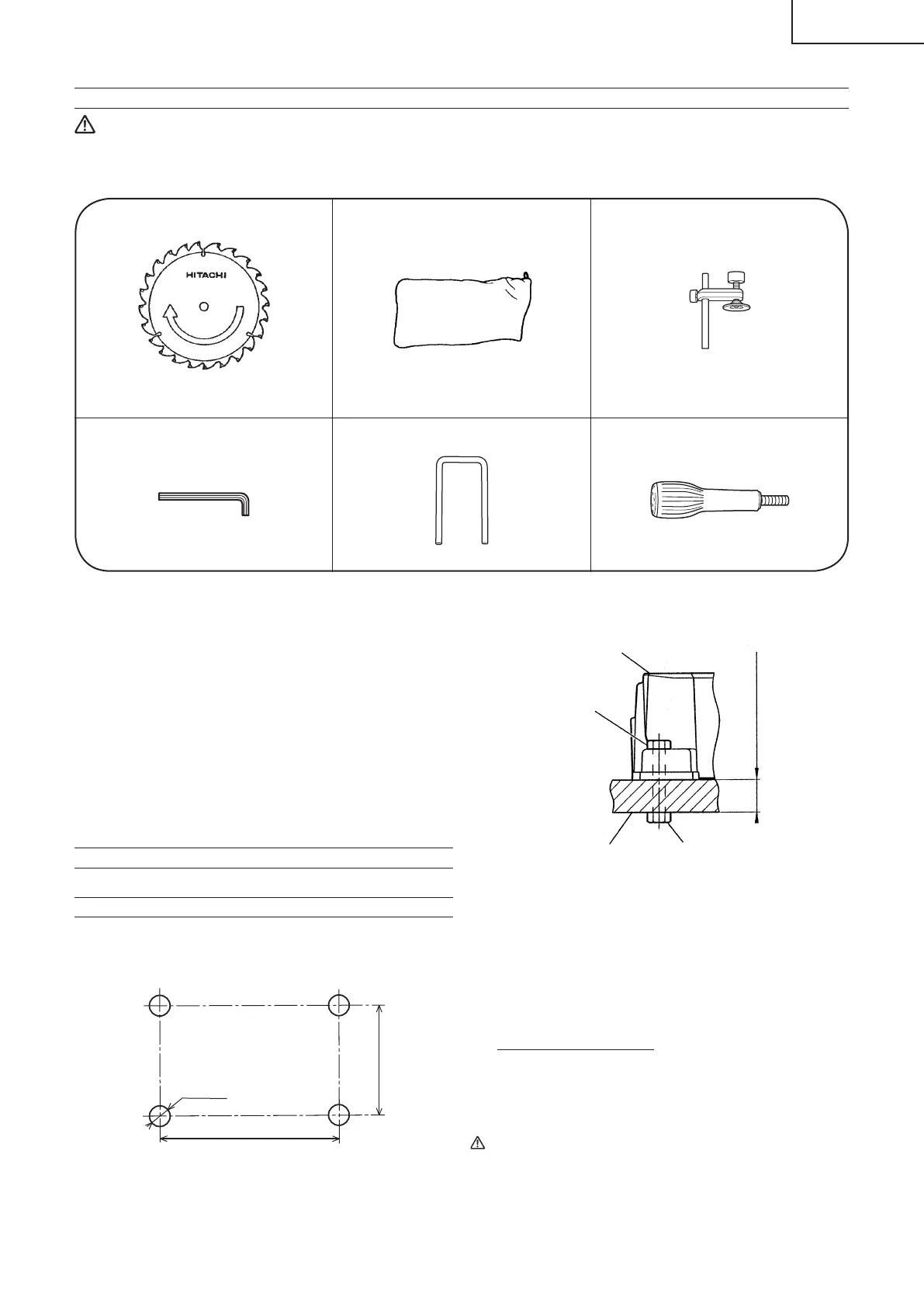

STANDARD ACCESSORIES
1
10 in. (255mm) TCT Saw blade
(1 piece) (For wood)
(No. of teeth 24 Code No. 318963)
2
Dust bag (1 piece)
For how to use, refer to page 13.
3
Vise Assembly w/knob bolt (1 piece)
For how to use, refer to page 10.
4
5mm Hex. bar wrench
5
Holder (1 piece)
6
Side handle (1 piece)
Fig. 3
1 in. (25mm) Thick bench
5/16 in. (8mm)
Bolt
Base
Work bench
5/16 in. (8mm) Nut
Fig. 4
Attach the power tool to a level, horizontal work bench in accordance with
Fig. 4.
Select 5/16 in. (8mm) diameter bolts suitable in length for the thickness
of the work bench.
Bolt length should be at least 1-3/8 in. (35mm) plus the thickness of the
work bench.
For example, use 2-11/32 in. (60mm) or larger bolts for a 1 in. (25mm)
thick work bench.
The holder attached to the rear of the base helps stabilize the power tool.
Holder, clamp lever adjustment:
Attach the included holder in the position as shown in fi gure 5 and adjust
the holder until its bottom surface contacts the work bench surface. After
adjustments, securely tighten the 6mm bolt. Loosen the M6 × 20 screw
on the clamp lever and attach to a position where the clamp lever can be
easily operated.
CAUTION:
Attach the power tool to a work bench with bolts (6mm), and if the
turntable has been swiveled 45° degrees or more, be careful not
to let the hand that is holding the side handle get caught between
the side handle and heads of bolts (6mm). Injuries could result.
OPTIONAL ACCESSORIES
...
sold separately
1
Holder (Code No. 974562)
2
6 mm machine screw (Code No. 949258)
3
Extension Holder and Stopper (Code No. 322710)
4
Saw blade 10 in. (255mm) TCT Saw blade for wood cut (Total teeth: 60)
(Code No. 976472)
5
Saw blade 10 in. (255mm) TCT Saw blade for aluminum cut (Total teeth:
100) (Code No. 319658)
6
Crown molding Vise Ass’y (Code No. 322712) (Include Crown molding
Stopper (L))
7
Crown molding Stopper (L) (Code No. 322713)
8
Crown molding Stopper (R) (Code No. 322714)
NOTE:
Accessories are subject to change without any obligation on the
part of the HITACHI.
APPLICATIONS
Wood and aluminum sash.
PREPARATION BEFORE OPERATION
Make the following preparations before operating the power tool:
1. Remove all packing materials attached or connected to the tool before
attempting to operate it.
2. Installation
11/32 in. (9mm)
4 Holes
8-9/16 in.
(217mm)
14-1/6 in. (360mm)
0000BookC10FCG.indb70000BookC10FCG.indb7 2017/03/0814:01:062017/03/0814:01:06
