Hitachi C 10FCG User Manual

6
English

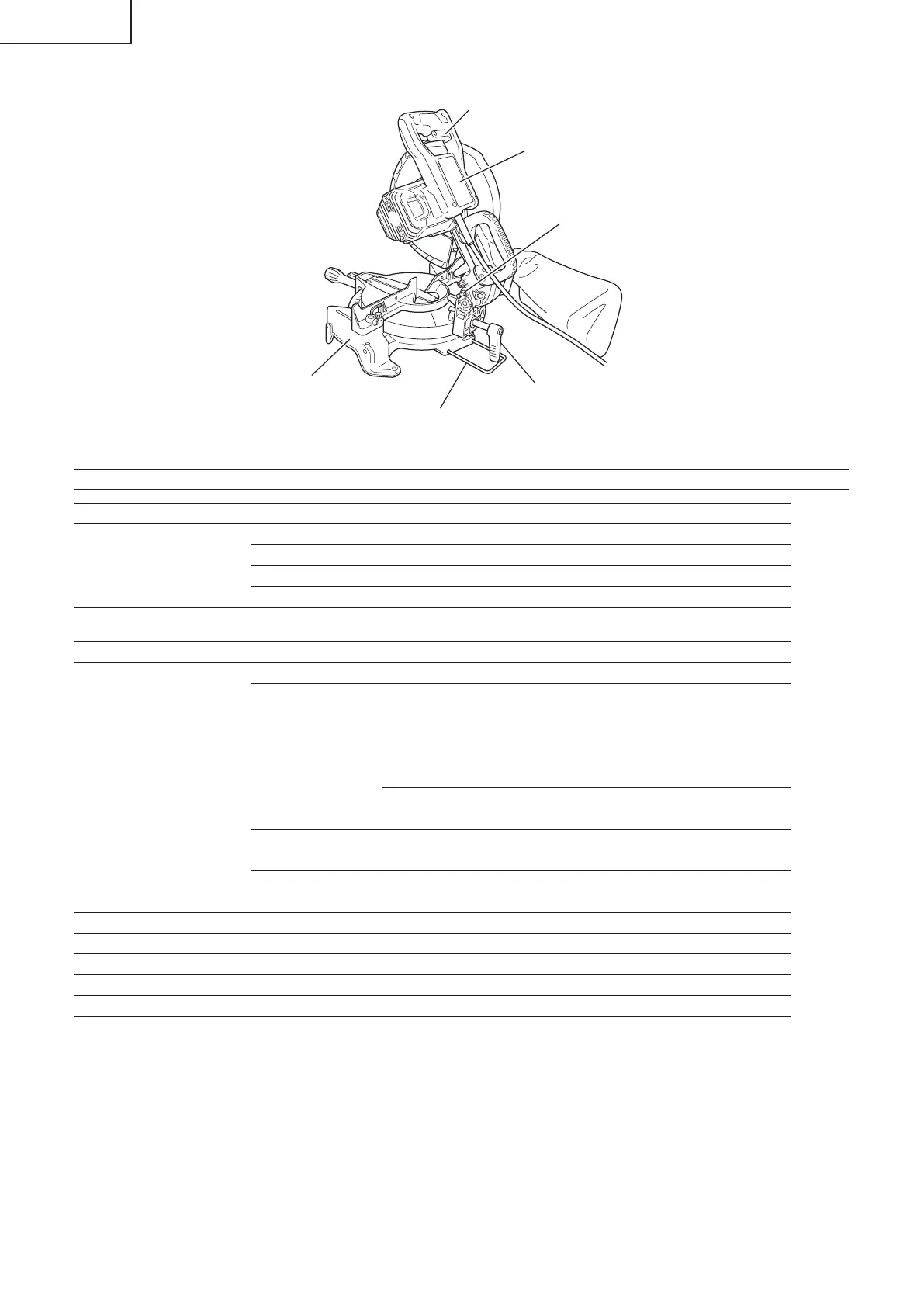

Trigger switch
Locking pin
Nameplate
Base
Clamp lever
Holder
Fig. 2
SPECIFICATIONS
Item Model C10FCG
Motor Type Series commutator motor
Power source Single-phase AC 60Hz
Voltage (Volts) 120
Full-load current (Amp) 15
Applicable
saw blade
Outside Dia. 10 in. (255mm)
Hole Dia. 5/8 in. (15.9mm)
No load speed 5000/min
Max. sawing dimension Head Turntable Max. sawing dimension
Miter 0 0 Max. Height 2-5/16 in. (59mm)
Max. Width 5-21/32 in. (144mm)
or
Max. Height 3-1/2 in. (89mm)
Max. Width 3-31/32 in. (101mm)
0 Left 45° Max. Height 2-5/16 in. (59mm)
Max. Width 4 in. (102mm)
Bevel Left 45° 0 Max. Height 1-5/8 in. (41mm)
Max. Width 5-21/32 in. (144mm)
Compound Left 45° Left 45° Max. Height 1-5/8 in. (41mm)
Max. Width 4 in. (102mm)
Miter sawing range Left 0° – 52° Right 0° – 52°
Bevel sawing range Left 0° – 45°
Compound sawing range Left (Bevel) 0° – 45°, Left and Right (Miter) 0° – 45°
Net weight 24.2 lbs. (11 kg)
Cord 2 Conductor type cable 6 ft. (1.8 m)
