5
English
DOUBLE INSULATION FOR SAFER OPERATION
To ensure safer operation of this power tool, HITACHI has adopted a double insulation design. “Double insulation” means that two physically separated
insulation systems have been used to insulate the electrically conductive materials connected to the power supply from the outer frame handled by the
operator. Therefore, either the symbol “
” or the words and “Double insulation” appear on the power tool or on the nameplate.
Although this system has no external grounding, you must still follow the normal electrical safety precautions given in this Instruction Manual, including not
using the power tool in wet environments.
To keep the double insulation system eff ective, follow these precautions:
∗
Only HITACHI AUTHORIZED SERVICE CENTER should disassemble or assemble this power tool, and only genuine HITACHI replacement parts should
be installed.
∗
Clean the exterior of the power tool only with a soft cloth moistened with soapy water and dry thoroughly.
∗
Never use solvents, gasoline or thinners on plastic components; otherwise the plastic may dissolve.
SAVE THESE INSTRUCTIONS
AND
MAKE THEM AVAILABLE TO OTHER USERS
AND
OWNERS OF THIS TOOL!
OPERATION AND MAINTENANCE
NOTE:
The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool.
Some illustrations in this Instruction Manual may show details or attachments that diff er from those on your own power tool.

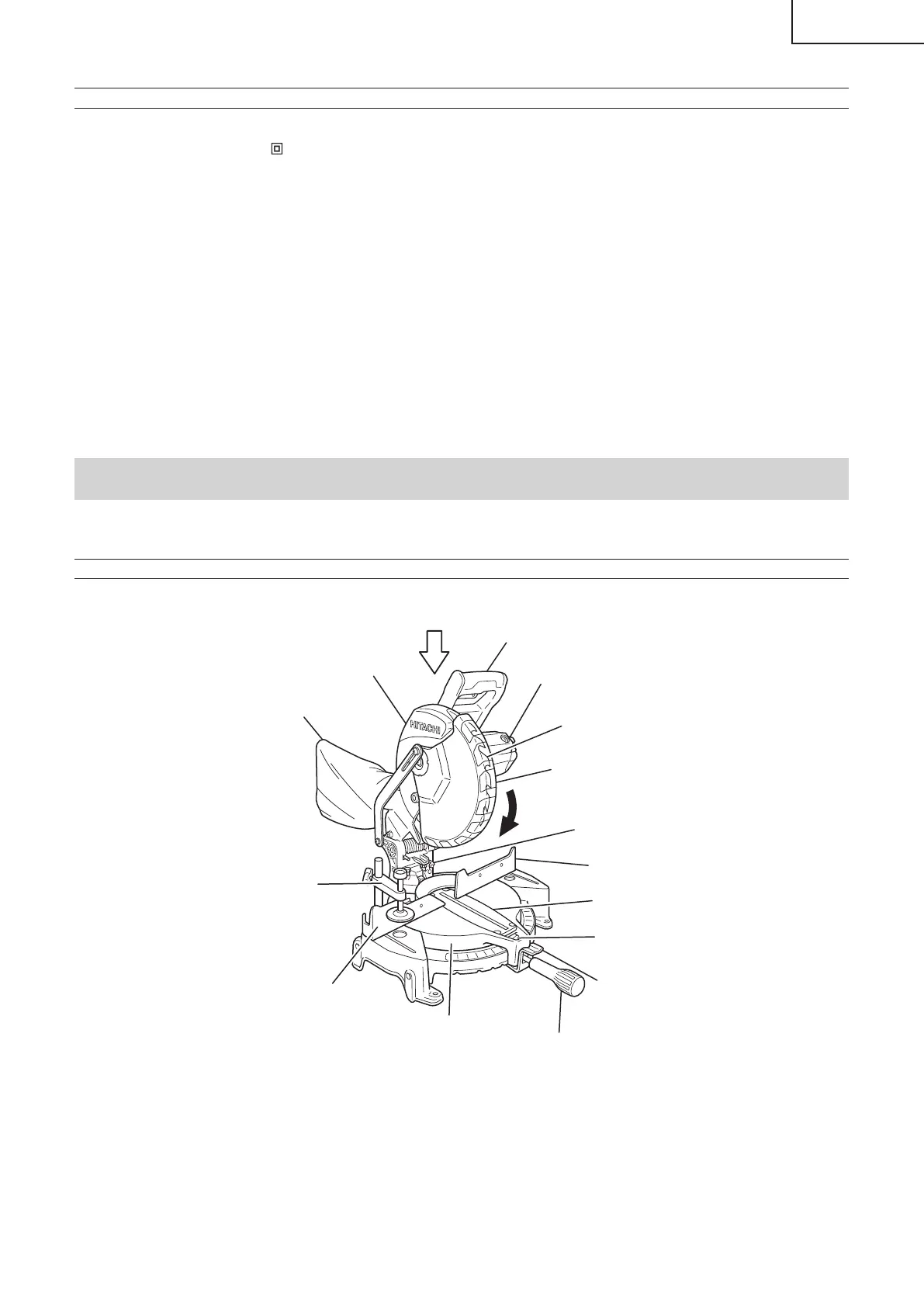

NAME OF PARTS
MODEL C10FCG
Dust bag
Handle
Lower guard
Fence
(Right side)
Table insert
Side handle
Saw blade
Fence
(Left side)
Motor head
Indicator (A)
(For miter scale)
Rotation
direction
Motor
Lever
Vise assembly
Indicator (B)
(For bevel scale)
Gear case
Turn table
Fig. 1
