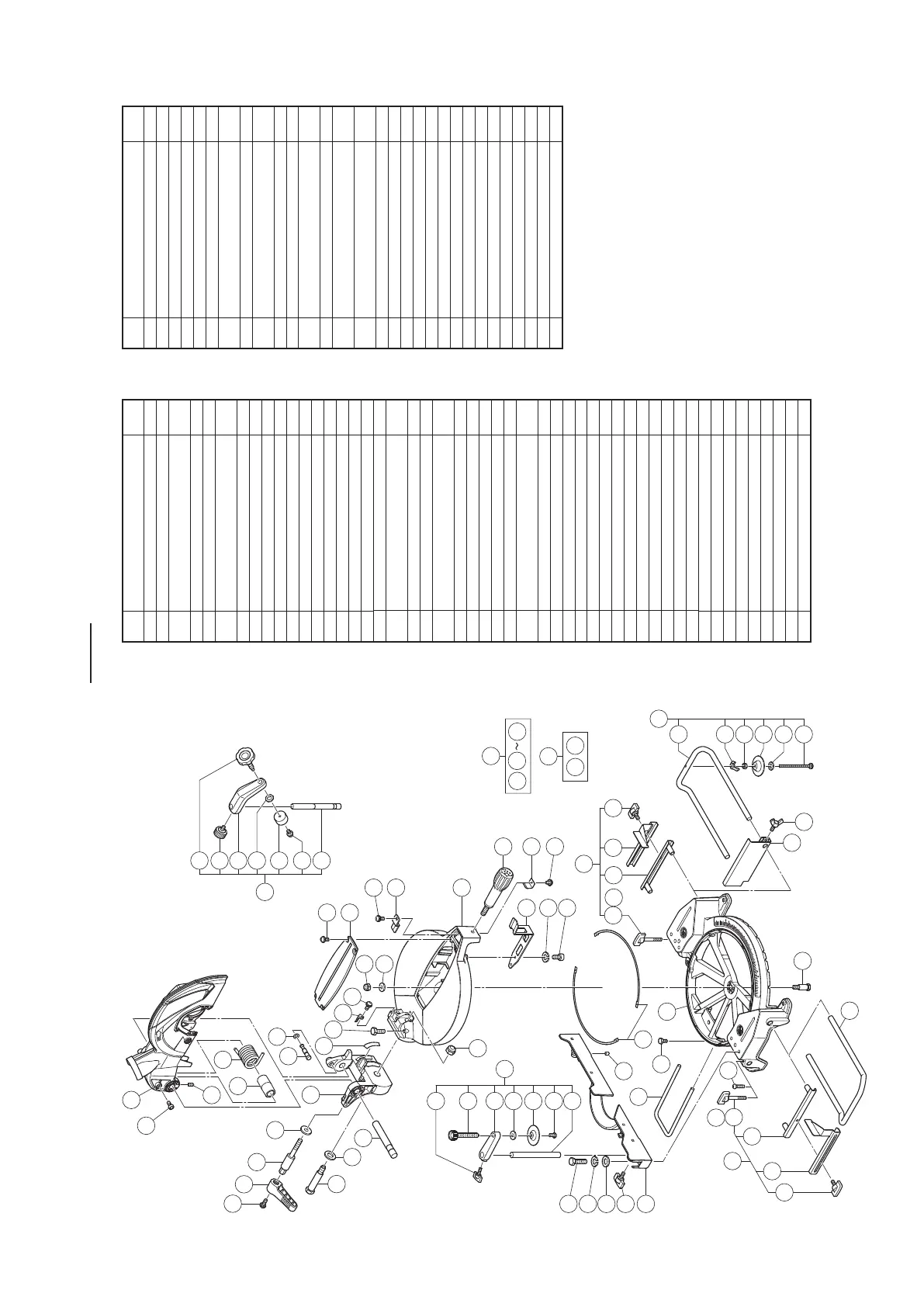

Hitachi C 10FCG User Manual

46
C10FCG
ITEM
NO.
PART NAME Q’TY
1 HEX. SOCKET HD. BOLT M5X10 1 2 GEAR CASE 1 3
SEAL LOCK HEX. SOCKET SET SCREW M6X10
1
4SLEEVE 1 5SPRING 1 6
MACHINE SCREW (W/WASHERS)
M6X20
3
7CLAMP LEVER 1 8BOLT (LEFT HAND) M10 1 9SPECIAL WASHER 1
10 SHAFT (D) 1
11 WASHER M16 1
12 SHAFT (C) 1
13 HINGE 1
14 STOPPER PIN ASS’Y 1
15 O-RING (P-6) 1
16 SCALE (B) 1
17 NYLOCK BOLT M8X25 2
18 INDICATOR 1
19
MACHINE SCREW (W/WASHERS)
M4X10
2
20 NYLON NUT M8 1
21 WASHER (F) 1
22
MACHINE SCREW (W/WASHER)
M4X12
4
23 TABLE INSERT 1
24 INDICATOR (A) 1
25 TURN TABLE 1
26 SIDE HANDLE 1
27 SPACER (A) 1
28
MACHINE SCREW (W/WASHERS)
M4X8
1
29 SPRING PLATE 1
30 SPRING WASHER M8 5
31 HEX. SOCKET HD. BOLT M8X16 2
32 NYLON NUT M12 1
33 VISE ASS’Y 1
34 WING BOLT M6X15 1
35 KNOB BOLT M10X66 1
36 SCREW HOLDER 1
37 BOLT WASHER M6 1
38 VISE PLATE 1
39 MACHINE SCREW M4X10 1
40 VISE SHAFT 1
41 BOLT M8X35 3
42 BOLT WASHER M8 3
43 WING BOLT M6X15 1
44 FENCE 1
45 HOLDER 1
46 BEARING LOCK 1
47 BOLT M6X12 1
48 LINER (A) 2
49 BASE 1 50 SHAFT (B) 1
ITEM
NO.
PART NAME Q’TY
601 VISE (B) ASS’Y 1
602 KNOB BOLT M10X54 1
603 KNOB BOLT M6X11 1
604 SCREW HOLDER (B) 1
605 WASHER (H) 1
606 BASE RUBBER 1
607
MACHINE SCREW (W/WASHERS)
M4X10
1
608 VISE SHAFT 1
609
CROWN MOLDING STOPPER (L)
ASS’Y
1
610 WING BOLT M6X15 2
611 CROWN MOLDING STOPPER (L) 1
612
CROWN MOLDING STOPPER HOLDER
1
613 WING BOLT M6X52 2
614
CROWN MOLDING STOPPER (R) ASS’Y
1
615
CROWN MOLDING STOPPER HOLDER
1
616 CROWN MOLDING STOPPER (R) 1
617 HOLDER ASS’Y 1
618 HOLDER 1
619 WING NUT M6 1
620 NUT M6 1
621 VISE PLATE 1
622 WASHER M6 1
623 HIGH TENSION BOLT M6X80 1
624 STOPPER 1
625 WING BOLT M6X20 1
626 WING BOLT M6X85 2
627 GUIDE ASS’Y 1
628 CROWN MOLDING VISE ASS’Y 1
629 MACHINE SCREW M6X20 1
630 HOLDER 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20 21
22
23
24 25
26 27 28
19
29 30 31
32
41 30 42 43 44
45
33
34 35 36 37 38 39 40
46
48
47
49
50
601
603 604 605 606 607 608 602
609
610
611
612
613
614
613
615
616 610
617
618 619 620 621 622 623
624
625
627
617
624
626
628
601 609
626
626
629
630
