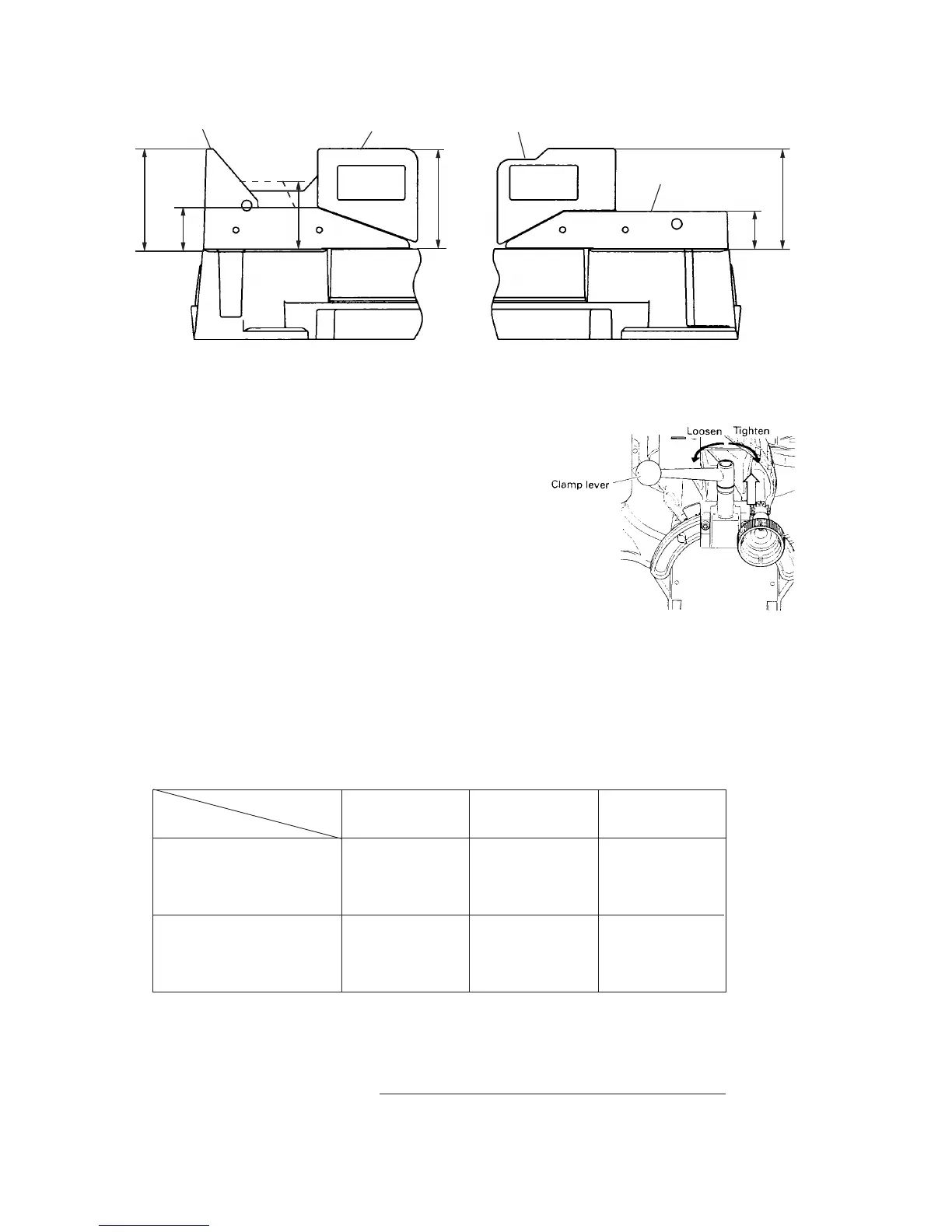

Fig. 5-a Fig. 5-b
Fixation fence
High sub fence
High sub fence
Fixation fence
D
C
A
F
E
Left
Right
(6) Aggressive tool design
The tool color is gunmetallic silver to give a sturdier image. The circular
saw portion is of a powerful, original and aggressive design.
Fig. 6
(7) Conveniently positioned bevel angle locking mechanism
In the case of the conventional slide compound miter saws, the
clamp lever is positioned at the rear of the main unit. The Models
C 12LSH and C 12RSH are equipped with the clamp lever
conveniently positioned at the upper position for easier bevel angle
locking.
*1: This is a method to cut a workpiece by shaking the motor head.
*2: This is a method to cut a workpiece by sliding the motor head from the front.
The dust collecting performance may vary depending on the workpiece and operating conditions.
The dust collecting performance is obtained from the following formula:
66.6
Maker
Model
Cutting
method
HITACHI
C 12LSH
C 12RSH
Press cutting *
1
(Size of the workpiece:
105 mm x 105 mm
(4-1/8" x 4-1/8"))
Table 3
(%)
C
P
Slide cutting *
2
(Size of the workpiece:
105 mm x 105 mm
(4-1/8" x 4-1/8"))
91.2
8
40.2
84.8 11.0
Weight of sawdust accumulated in the dust bag (g)
Weight of all sawdust during cutting (g)
x 100
(8) High dust collecting performance
The dust collecting performance of the Models C 12LSH and C 12RSH are remarkably higher than the other
models thanks to the adoption of new dust guide and gear case.
B
Dust collecting performance (%) =
