--- 38 ---
Packing (F)
Carton box
(4) How to install the top pad
Put the top pad on packing (D), packing (E) and packing (F). Close the lids of the carton box and bind them
together (Fig. 56).
Fig. 55
Packing (E)
Sleeve
Packing (D)

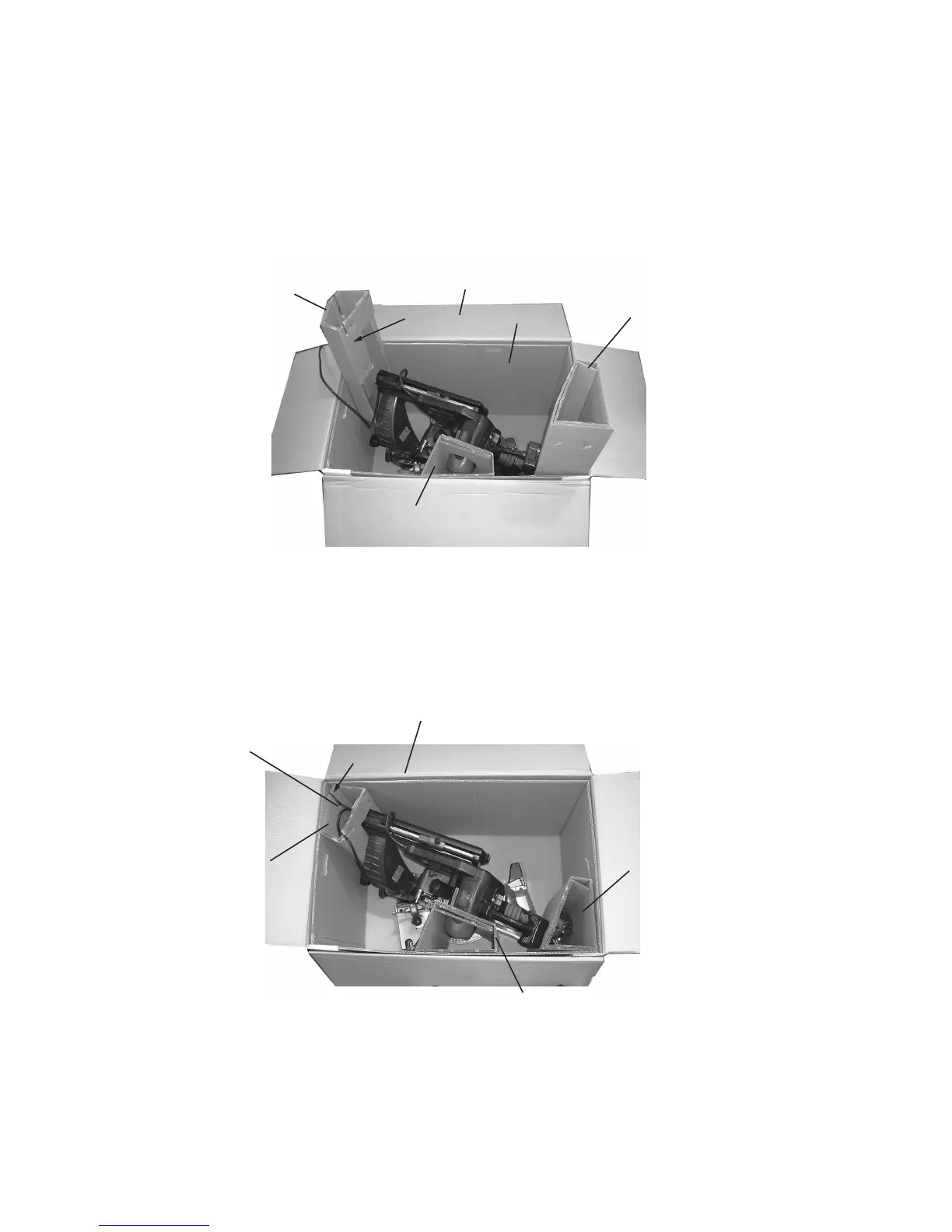

(3) How to install packings (E) and (F)
Put the main body mounted with packing (B) and packing (D) in the carton box aligning with the base packing.
Cover the support at the rear of the main unit, housing and switch handle with two poly sheets. Insert packing
(F) into the clearance near the switch handle at the front of the main unit and packing (E) into the clearance
near the support at the rear of the main unit from above. Put the cord through the groove "A" of packing (E)
and insert the tip of the cord into the clearance "B" between the sleeve and packing (E). (Check that cable tag
(B) is securely placed in "B" portion.) Place the accessories in the space of packing (F) (Fig. 55).
A
Packing (F)
Cord
Fig. 56
Packing (D)
Top pad
Packing (E)
B
To Next Page
