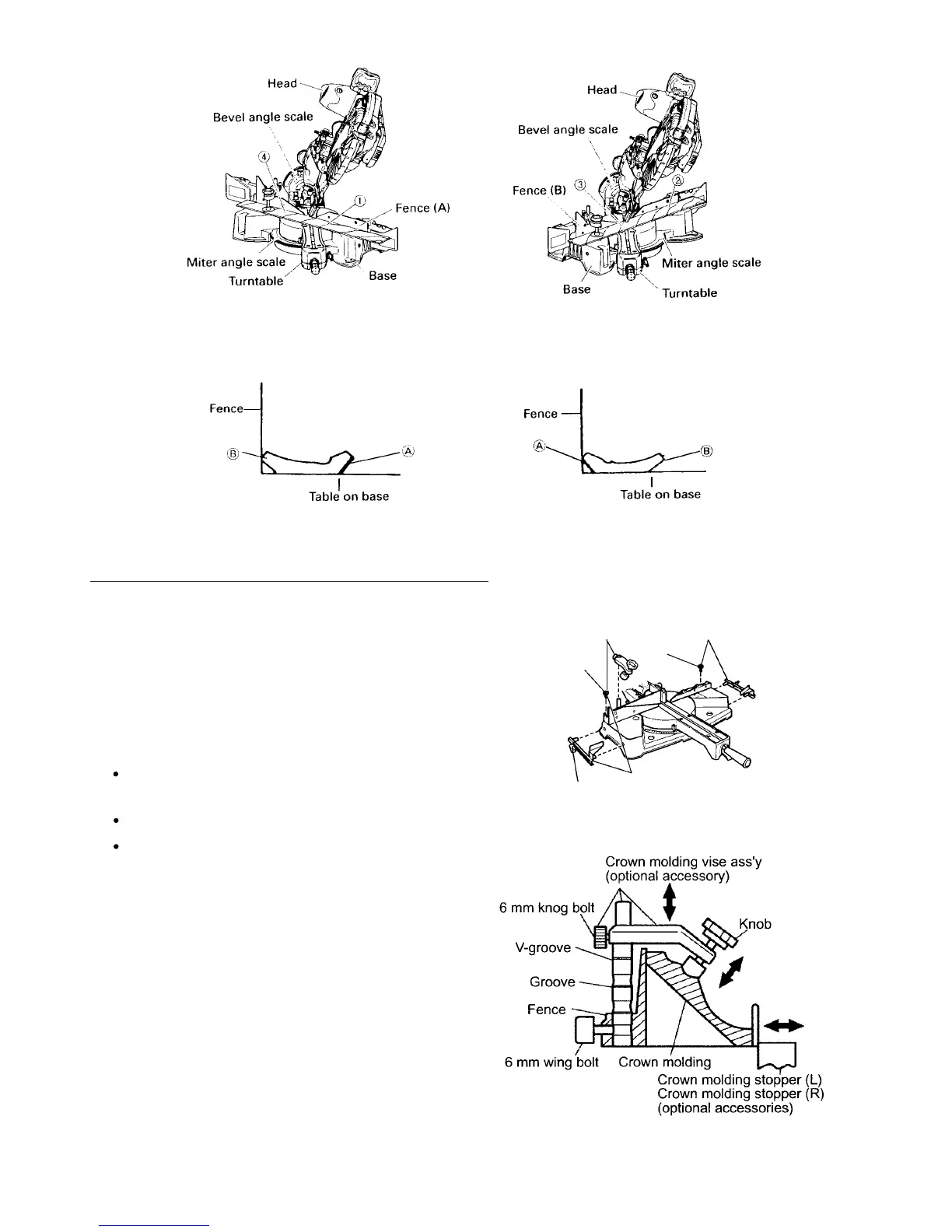

Fig. 44
Fig. 45
Fig. 46 Fig. 47
Cutting method of crown molding without tilting the saw blade
Fig. 48-a
Fig. 48-b
(1) Crown molding stoppers (L) and (R) (optional
accessories) allow easier cuts of crown molding without
tilting the saw blade. Install them to both sides of the
base as shown in Fig. 48-a. After inserting, tighten the
6 mm knob bolts to secure the crown molding guides.
[ Optional accessories used ]
Crown molding vise ass'y
(Including crown molding stopper (L))
Crown molding stopper (L)
Crown molding stopper (R)
(2) The crown molding vise ass'y (optional accessory) can
be mounted on either the left fence (fence (B)) or the
right fence (fence (A)). It can unite with the slope of the
crown molding and the vise can be pressed down.
Then turn the upper knob, as necessary, to securely
attach the crown molding in position. To raise or lower
the vise assembly, first loosen the 6 mm knob bolt.
As shown in Fig. 48-b, the vise shaft has three locking
grooves into which the tip of the 6 mm wing bolt is
designed to fit in order to lock the screw holder in the
desired position.
Crown molding vise ass'y
(optional accessory)
Crown molding stopper (R)
(optional accessory)
6 mm knob
bolt
6 mm knob bolt
Crown molding stopper (L)
(optional accessory)
6 mm wing bolt
