Fig. 40 Fig. 41
Fig. 42
Fig. 43

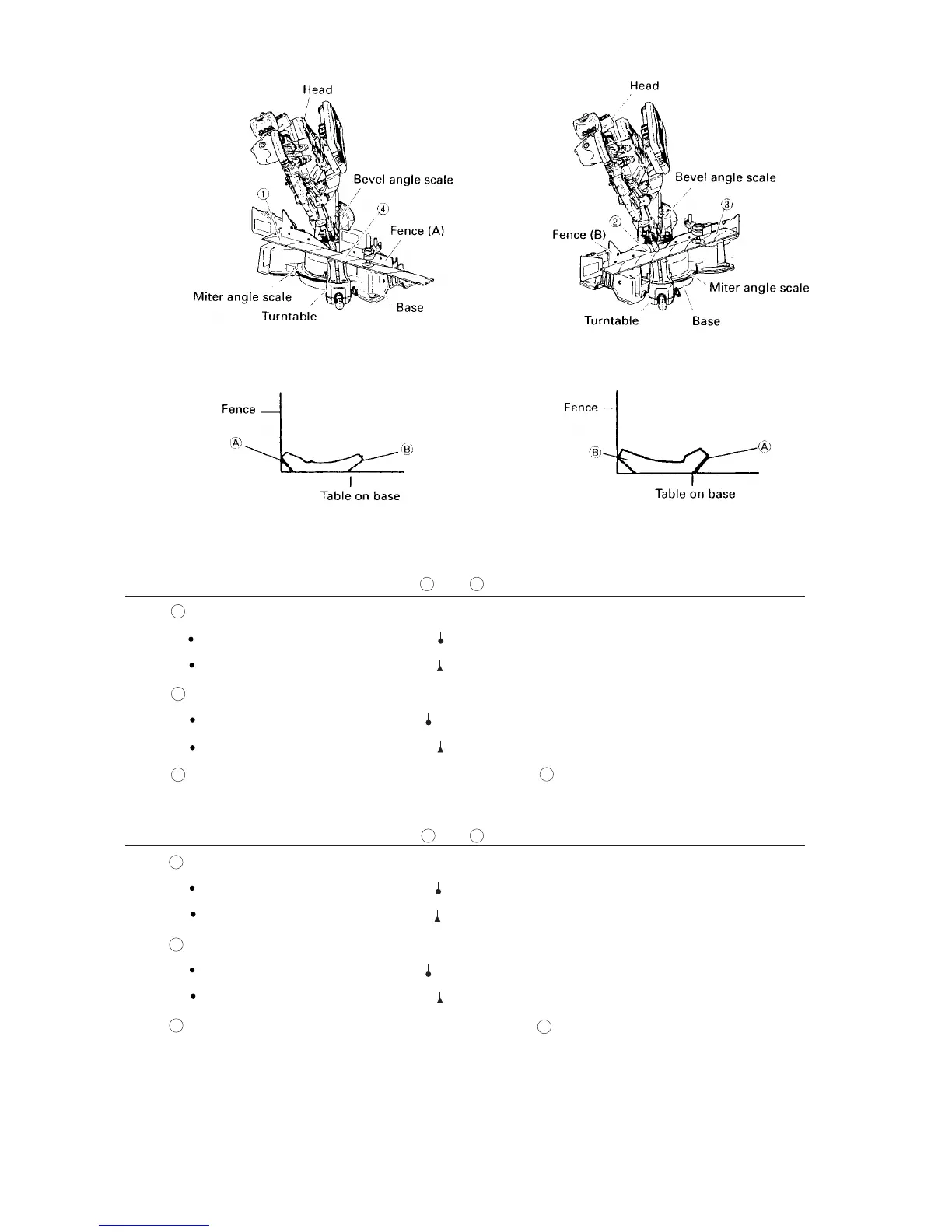

(3) Setting to cut crown moldings at positions and in Fig. 39 (See Fig. 44, tilt the head to the right.):
Turn the turn table to the right and set the miter angle as follows:
For 45û type crown moldings: 35.3û ( mark)
For 38û type crown moldings: 31.6û ( mark)
Tilt the head to the right and set the bevel angle as follows:
For 45û type crown moldings: 30û ( mark)
For 38û type crown moldings: 33.9û ( mark)
Position the crown molding so that the upper surface ( in Fig. 38) contacts the fence as indicated in
Fig. 46 .
(4) Setting to cut crown moldings at positions and in Fig. 39 (See Fig. 45, tilt the head to the right.):
Turn the turn table to the left and set the miter angle as follows:
For 45û type crown moldings: 35.3û ( mark)
For 38û type crown moldings: 31.6û ( mark)
Tilt the head to the right and set the bevel angle as follows:
For 45û type crown moldings: 30û ( mark)
For 38û type crown moldings: 33.9û ( mark)
Position the crown molding so that the lower surface ( in Fig. 38) contacts the fence as indicated in
Fig. 47.
