--- 21 ---
WARNING: In the case of left bevel cutting, turn sub fence (B) counterclockwise. Unless it is turned
counterclockwise, the main body or saw blade may contact sub fence (B), resulting in an
injury. Be sure to instruct the customers to turn sub fence (B) counterclockwise in the
case of left bevel cutting. In the case of right bevel cutting, turn sub fence (A) clockwise.
Unless it is turned clockwise, the main body or the saw blade may contact sub fence (A),
resulting in an injury. Be sure to instruct the customers to turn sub fence (A) clockwise in
the case of right bevel cutting.
8-2. Confirmation for Use of Sub Fence (A) and Sub Fence (B)
The Models C 12LSH and C 12RSH are equipped with sub fence (A) and sub fence (B).
Use sub fence (A) and sub fence (B) for miter cutting, left and right bevel cutting.

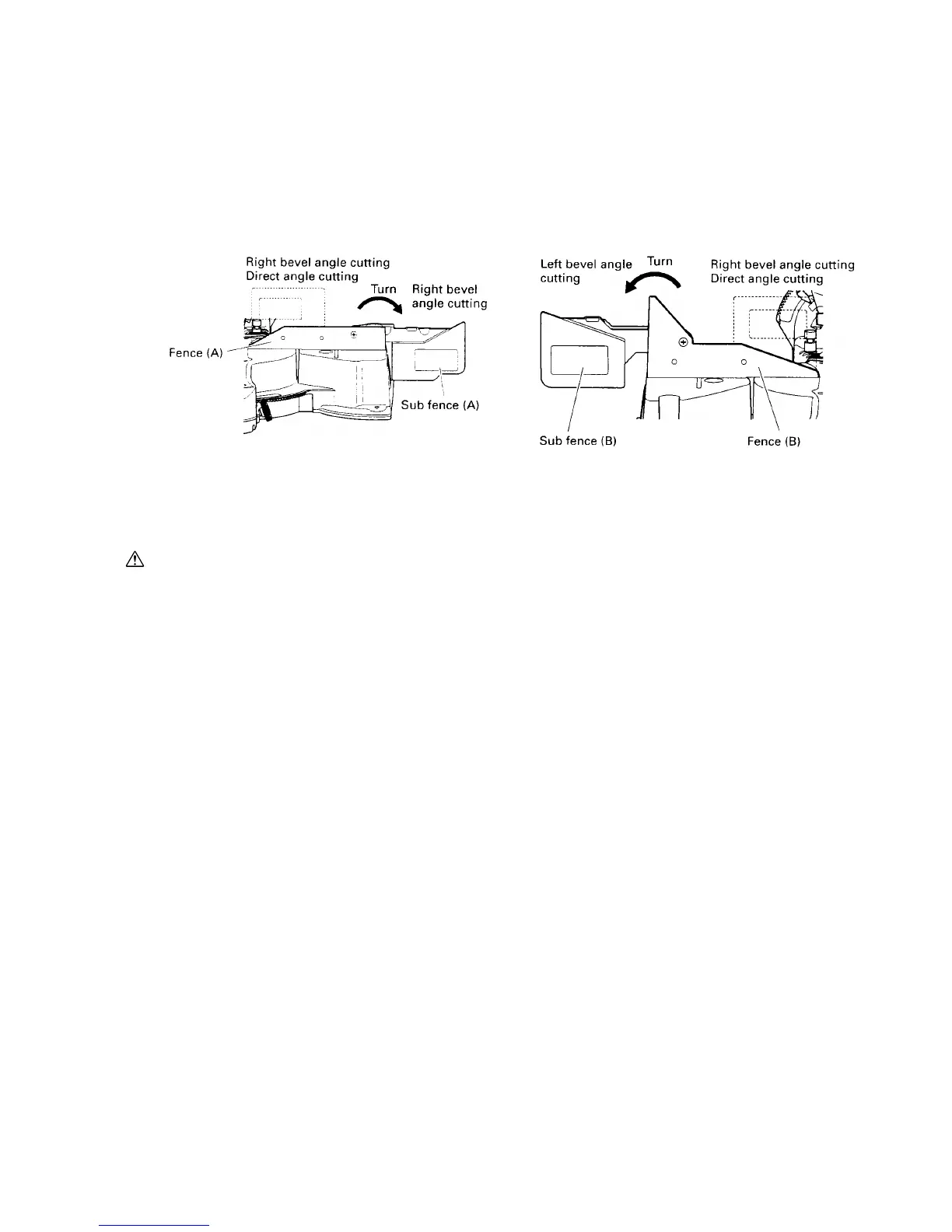

Sub fence (A) and sub fence (B) support the workpiece widely for stable cutting. In the case of right bevel cutting,
raise sub fence (A) as illustrated in Fig. 27-a and turn it clockwise. In the case of left bevel cutting, raise sub
fence (B) as illustrated in Fig. 27-b and turn it counterclockwise.
Fig. 27-a Fig. 27-b
