--- 70 ---
a Inaccurate
squareness between
the turn table and the
saw blade causes the
saw blade to cut into
the workpiece at an
angle.
b Excessive deflection
of the saw blade
(Excessive vibration)
c Inaccurate
squareness between
fence (A) and fence
(B) and the saw blade
d Surfaces of fence (A)
and fence (B) are not
accurately aligned,
causing workpiece to
deviate from proper
squareness.
e Inaccurate surface
flatness of the turn
table.
f Squareness between
the saw blade and the
turn table is changed
when sliding.
• Readjust squareness with the
Nylock Hex. Socket Set
Screw M8 x 16 [17].
• Replace Hinge (A) [173] or
Gear Case [275] or Turn
Table [26] or Base Ass'y [59]
(if deformed).
• Replace the TCT Saw Blade
[286].
• Check for surface defects on
Washer (A) [287] or Washer
(B) [285B] and repair with a
file as necessary.
• Replace Washers (A) [287] or
Washer (B) [285B].
• Loosen the Bolt (W/Washers)
M8 x 35 (Black) [50] and
adjust as necessary.
• Replace Fence (A) [96] and
Fence (B) [51].
• Loosen the Bolt (W/Washers)
M8 x 35 (Black) [50] and
adjust surface alignment of
Fence (A) [96] and Fence (B)
[51] as necessary.
• Replace Fence (A) [96] or
Fence (B) [51].
• Replace the Turn Table [26].
• Press-fit Slide Pipe (A) [149]
and Slide Pipe (B) [166] into
the Support [134]. Tighten
the Hex. Socket Set Screw
M8 x 10 [135] and check the
accuracy (maximum torsion
level 0.05/100). If it is not
accurate, replace Slide Pipe
(A) [149] and Slide Pipe (B)
[166] with new ones (Fig. 80).
0.15/100
(Dummy disc)
(Fig. 77)
When sliding (tip)
0.25/100
(Dummy disc)
0.2/ φ 295
(Dummy disc)
0.15/100
(Fig. 78)
0.15 or less
(Fig. 79)
0.15/ φ 250
Same as a
(Fig. 80)
1
Inaccurate cutting
•••
Inaccurate
squareness of the cut
surface
•••
Cut surfaces do not
fit together properly.

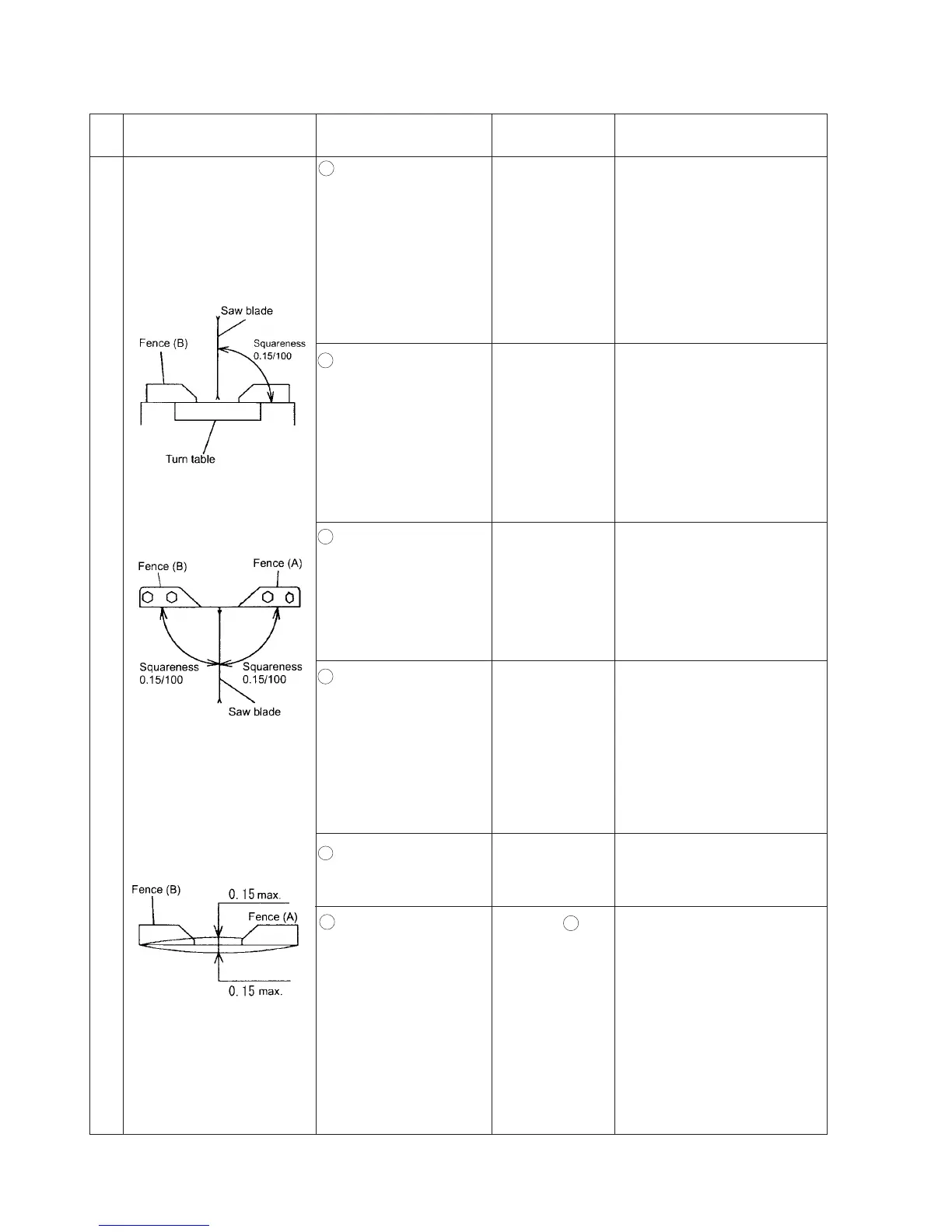

Fig. 77
Fig. 78
Fig. 79
Item Phenomenon Cause (s)
Factory
standard
12. REPAIR GUIDE
Inspection, repair or adjustment
To Next Page
