Disassembly procedure
Disassembly
spots
Item
No.
Necessary tools
Protective cover,
link

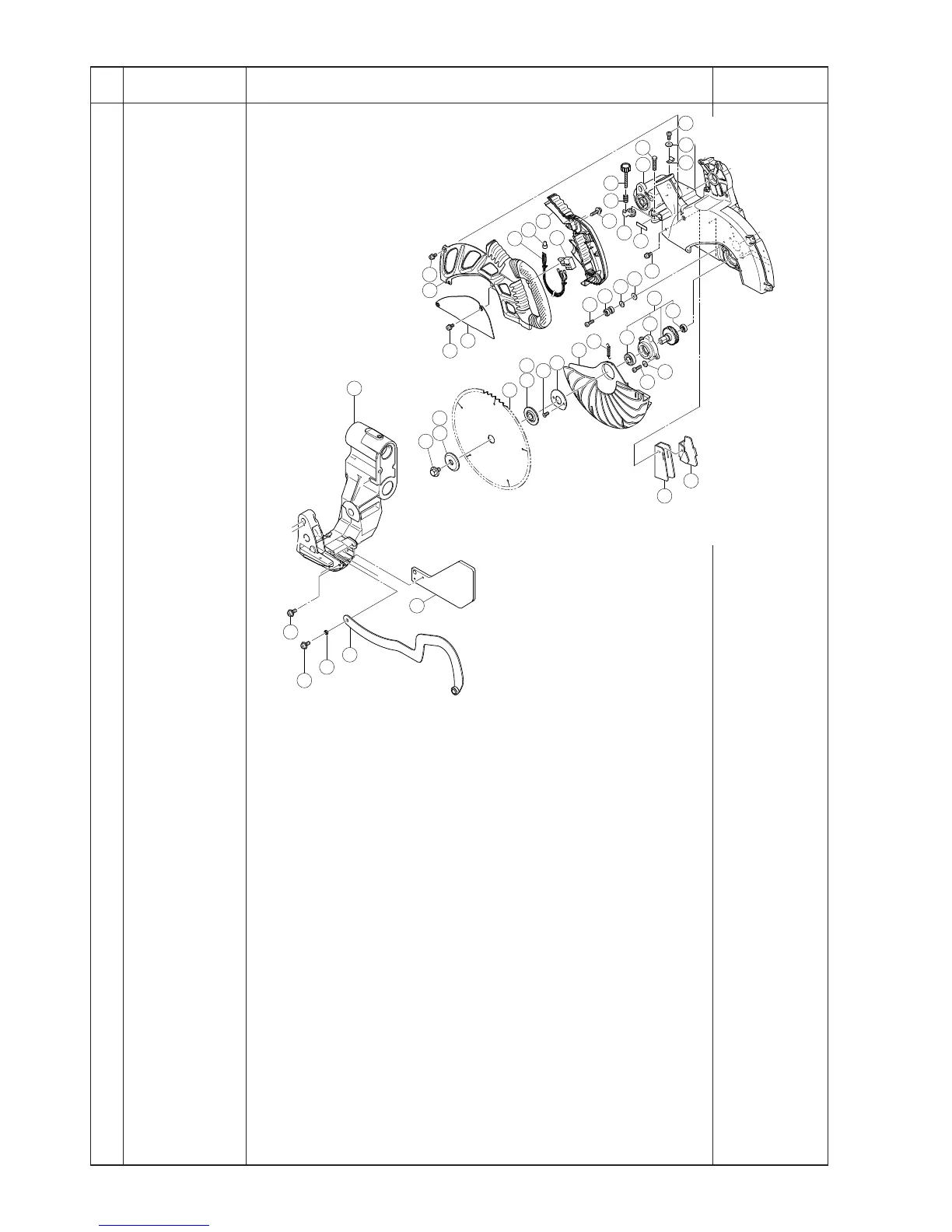

Fig. 59
(1) Remove the two Machine Screws (W/Washers) M5 x 12 (Black)
[264] and remove the Spindle Cover [265] from the Gear Case
[275].
(2) Remove Bolt (A) M10 [284] with the Box Wrench 17 mm [501].
Remove the Washer (B) [285B] or Washer (D) [348], TCT Saw
Blade [286] and Washer (A) [287] or Washer (C) [349] in this
order from the Spindle Ass'y [292].
(3) Remove the two Flat Hd. Screws M4 x 10 [288]. Remove the
Cover [289] and the Protective Cover [290] from the Bearing
Holder [294].
NOTE: Be sure to release the hook of Return Spring (B) [291A]
from the groove of the Protective Cover [290] then
remove the Protective Cover [290] from the Bearing
Holder [294].
(4) Remove the Machine Screw M5 x 12 [188] and remove the
Spacer [189] and the Link [190] from Hinge (A) [173].
2
Phillips
screwdriver
17-mm box
wrench
(standard
accessory)
348
349
262
263
264
265
266
267
268
269
241
270
271
272
275
274
273
279
280
281
282
284
285B
286
287
288
289
290
291A
292
293
294
295
296
297
298
299
276
277
278
283
173
188
189
190
338
346
