--- 52 ---

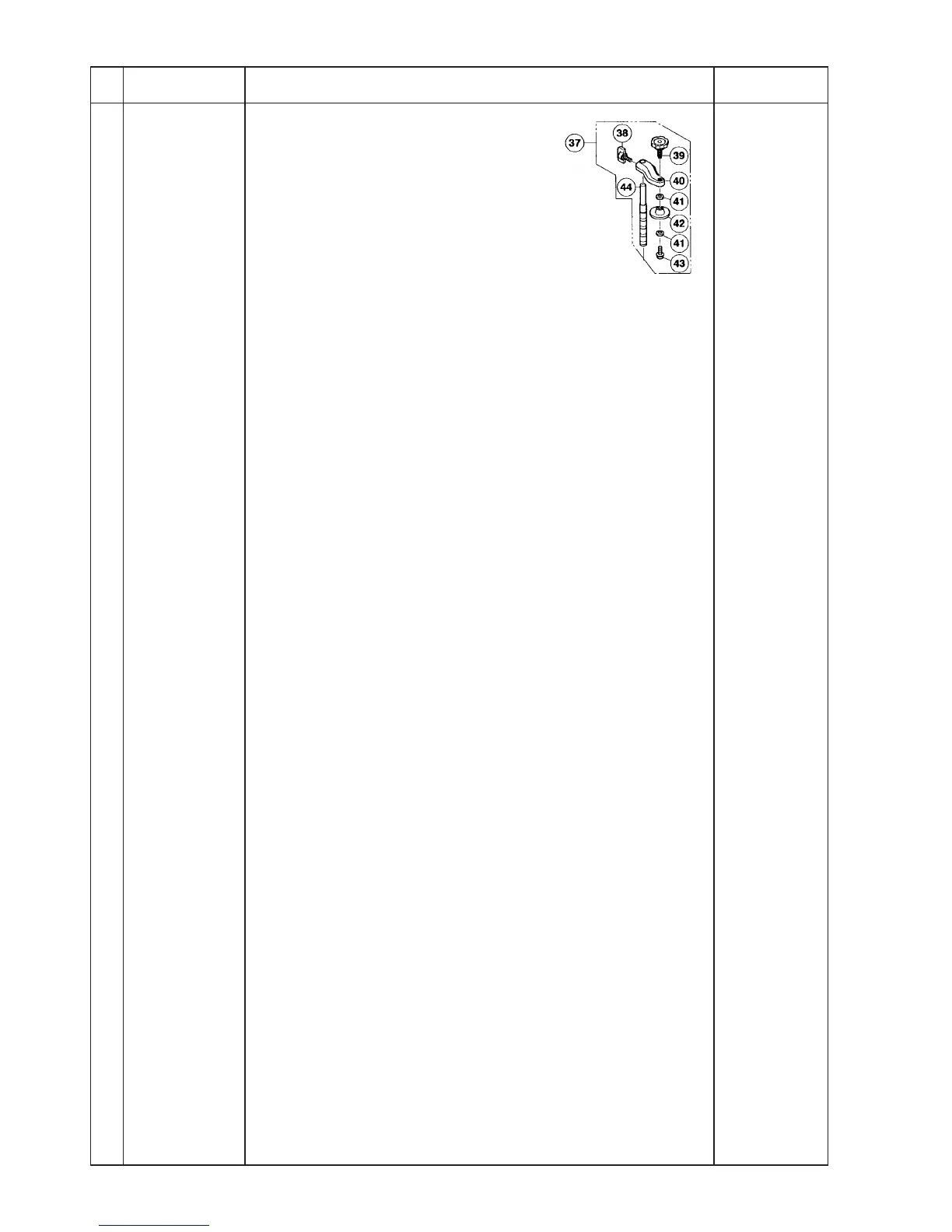

Disassembly procedure
Disassembly
spots
Item
No.
Necessary tools
Phillips
screwdriver
7
Vise ass'y
(1) Remove the Wing Bolt M6 x 12 [38] to
remove the Vise Shaft [44].
(2) Remove the Machine Screw (W/Washers)
M5 x 12 (Black) [43] to remove the Vise
Plate [42] and the Washers [41].
(3) Remove the Knob Bolt M10 [39] from the
Screw Holder [40].
Fig. 64
