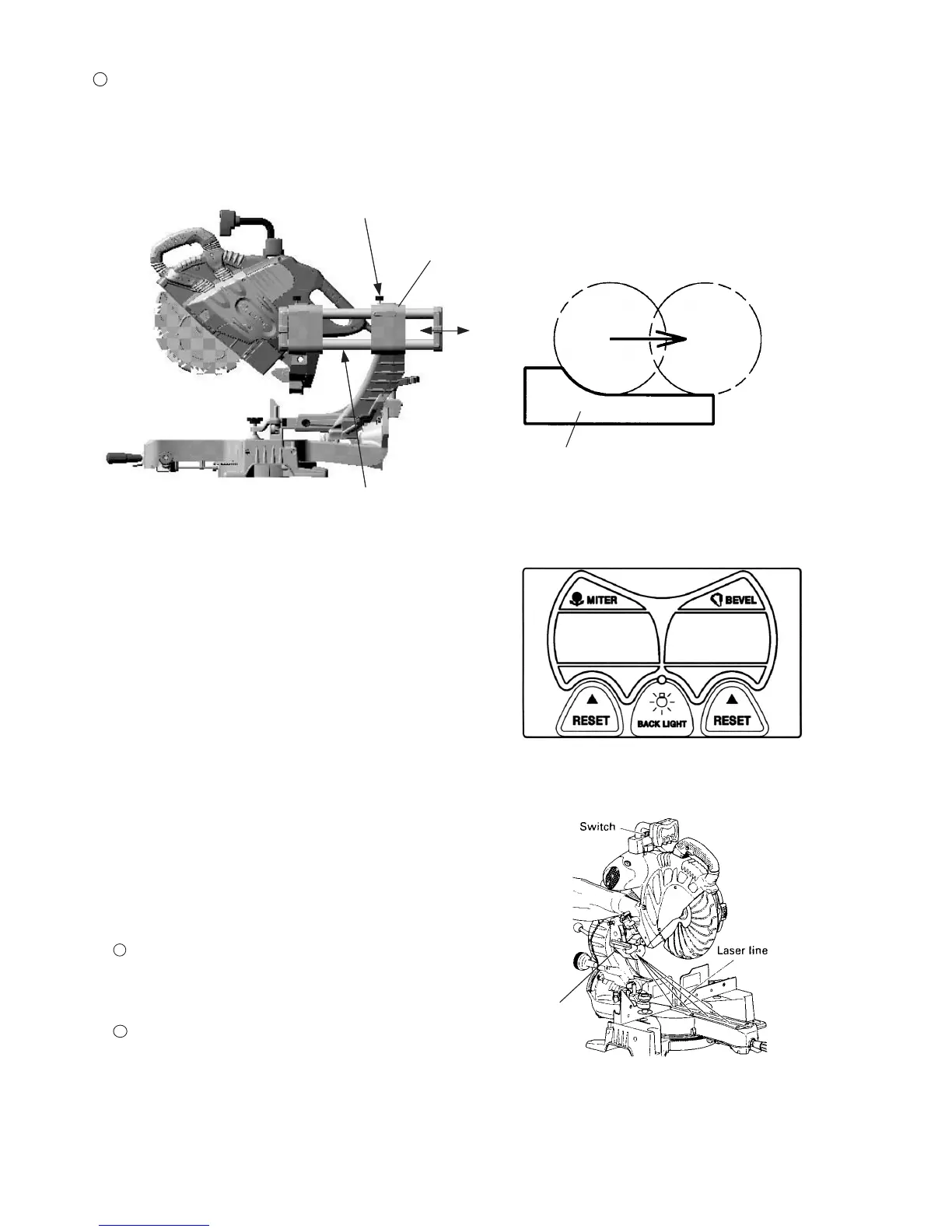

Adjustable sliding amount
The sliding amount of the motor head is adjustable by loosening the slide lock knob at holder (A) side and
changing the slide pipe position (Fig. 2-a). It is convenient for making continuous grooves halfway through the
sliding operation (Fig. 2-b).
2
Slide pipe
Slide lock knob
(Be sure to lock the knob after adjustment.)
Workpiece
Slide
Holder (A)
Adjust
Fig. 2-a Fig. 2-b
(2) Digital display panel that indicates miter/bevel angles
(Only the Model C 12LSH)
Use the digital display panel when cutting a workpiece at
an optional angle. The digital display panel indicates a
miter/bevel cutting angle with a numeric value. There is
no reading error caused by visual check between the
indicator and the scale. The digital display indicates a
miter angle or a bevel angle in increments of 0.5û. The
digital display is equipped with the convenient back light
ON/OFF switch that makes the display easily readable
even in a dimly lit place (Fig. 3).
Fig. 3
Fig. 4-a
(3) Laser marker
Use the laser marker for aligning with the ink line on the
workpiece.
Cutting position can be properly adjusted by aligning the
positioning ink line with the laser line. There is no need to
make a long ink line on the workpiece.
There is no need to lower the motor head to align with the
ink line because the laser marker makes a laser line on the
workpiece. In addition, cutting position can be easily
adjusted because the operator can hold the workpiece with
both hands to move.
1
2
Laser
marker
To Next Page
