Hitachi E-Compact Medium Power Series User Manual

30 | 106
E-Compact Medium Power
H
G
F
E
D
C
B
A
8 7 6 5 4 3 2 1
H
G
F
E
D
C
B
A
8 7 6 5 4 3 2 1

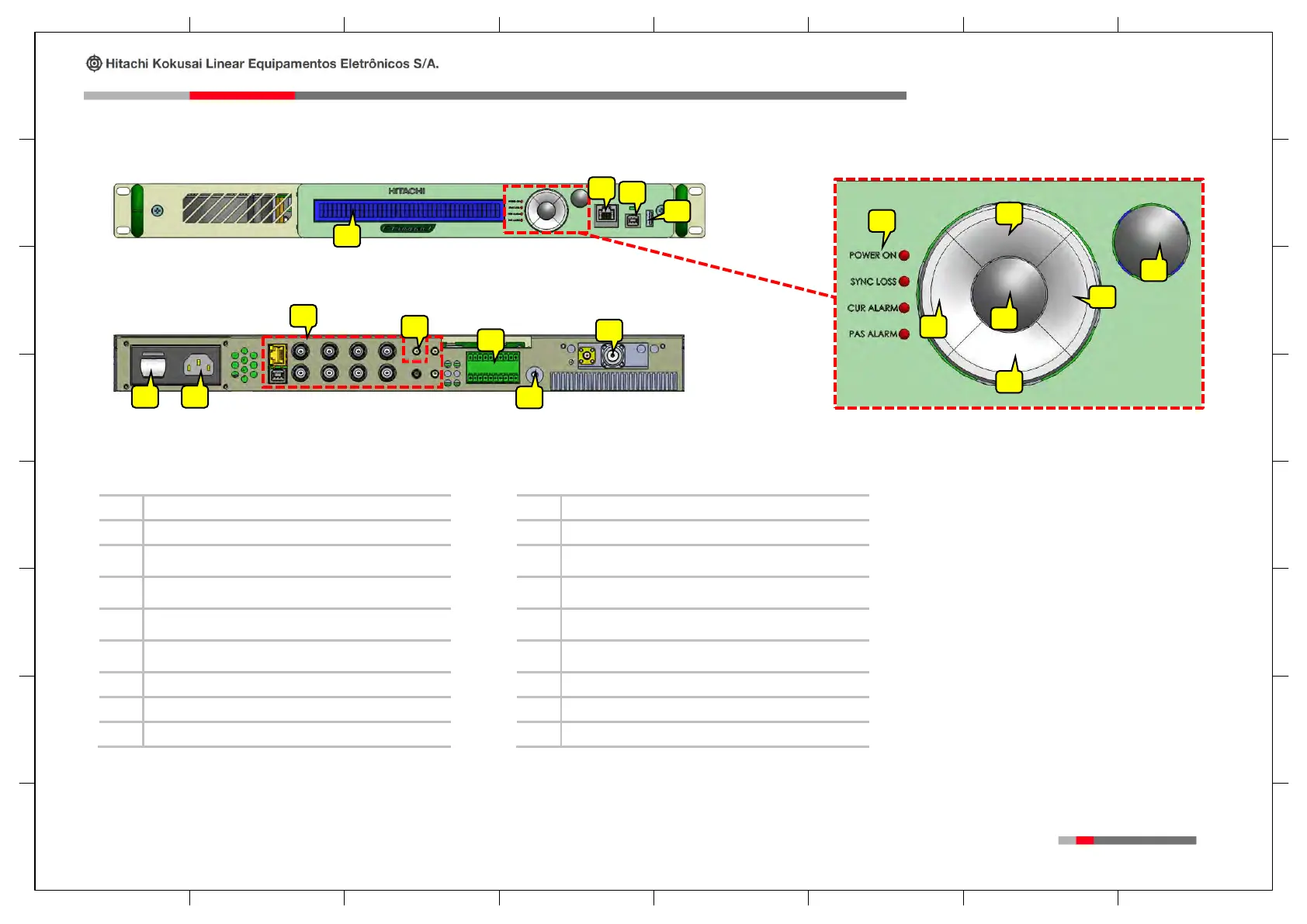

6.1.2. Interfaces
01
LCD Display (2 Lines x 40 Coluns)
10
USB 2.0 Port Type B Jack
02
Signaling LEDs
11
USB 2.0 Port Type A Jack
03
Up Key (▲)
12
Power On Key
04
Down Key (▼)
13
AC Input
05
Left Key (◀)
14
NOT USED / NOT APPLY
06
Right Key (▶)
15
“Tuner IN” – RF Input From Exciter
07
Enter Key (Enter)
16
Interface Control I/O
08
Esc Key (Esc)
17
Grounding
09
Ethernet Port
18
RF Output
Front Panel
Rear Panel
01
02
03
06
05
04
07
08
12
17
13
14
15
16
18
09
10
11
