Chapter 2 Specifications
2 – 16

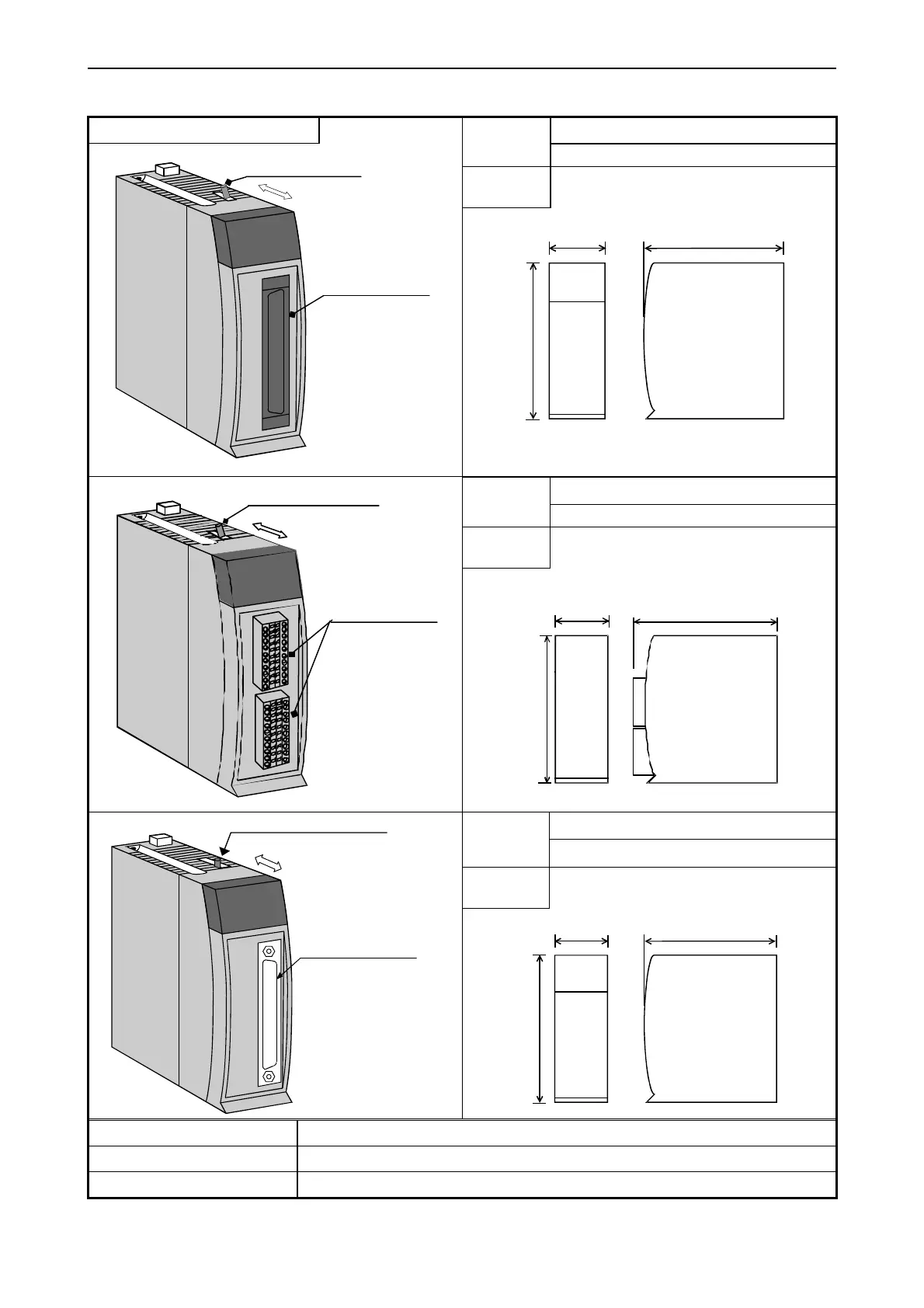

(2) 32-point I/O module
Module features
EH-XD32, XDL32 (Approx. 0.15kg (0.3lb.))
Type
(Weight)
EH-YT32, YTP32 (Approx. 0.15kg (0.3lb.))
Dimensions
(mm (in.))
LED dis
p
la
y
switch
External wirin
g
connecto
r
ON
OFF
30 (1.18)
100 (3.94)
95 (3.74)
EH-XD32E, XDL32E (Approx. (0.15kg (0.3lb.))
Type
(Weight)
EH-YT32E, YTP32E (Approx. 0.15kg (0.3lb.))
Dimensions
(mm (in.))
LED display switch
External wiring connector
ON
OFF
30 (1.18)
100 (3.94)
104 (4.09)
EH-XD32H (Approx. (0.12kg(0.26lb.))
Type
(Weight)
EH-YT32H (Approx. (0.12kg(0.26lb.))
Dimensions
(mm (in.))
LED display switch
External wiring connector
(Compatible with EM/H-200
series)
ON
OFF
30
(
1.18
)
100
(
3.94
)
95 (3.74)
Name Specification
LED display switch This is to switch I/O groups to be displayed.
External wiring connector This is a connector for connecting I/O signals.
