Hitachi EHV+ Series User Manual

Chapter 2 Specifications
2 – 17
Front view Indicated contents
When signal status is ON, LED lights up accordingly.
Displayed group can be selected by the LED display switch.
SW LED +16 Displayed group
OFF OFF 0 to 15
ON ON 16 to 31
0 1 2 3
DC INPUT EH-XD32
4 5 6 7
8 9 10 11
12 13 14 15
+16

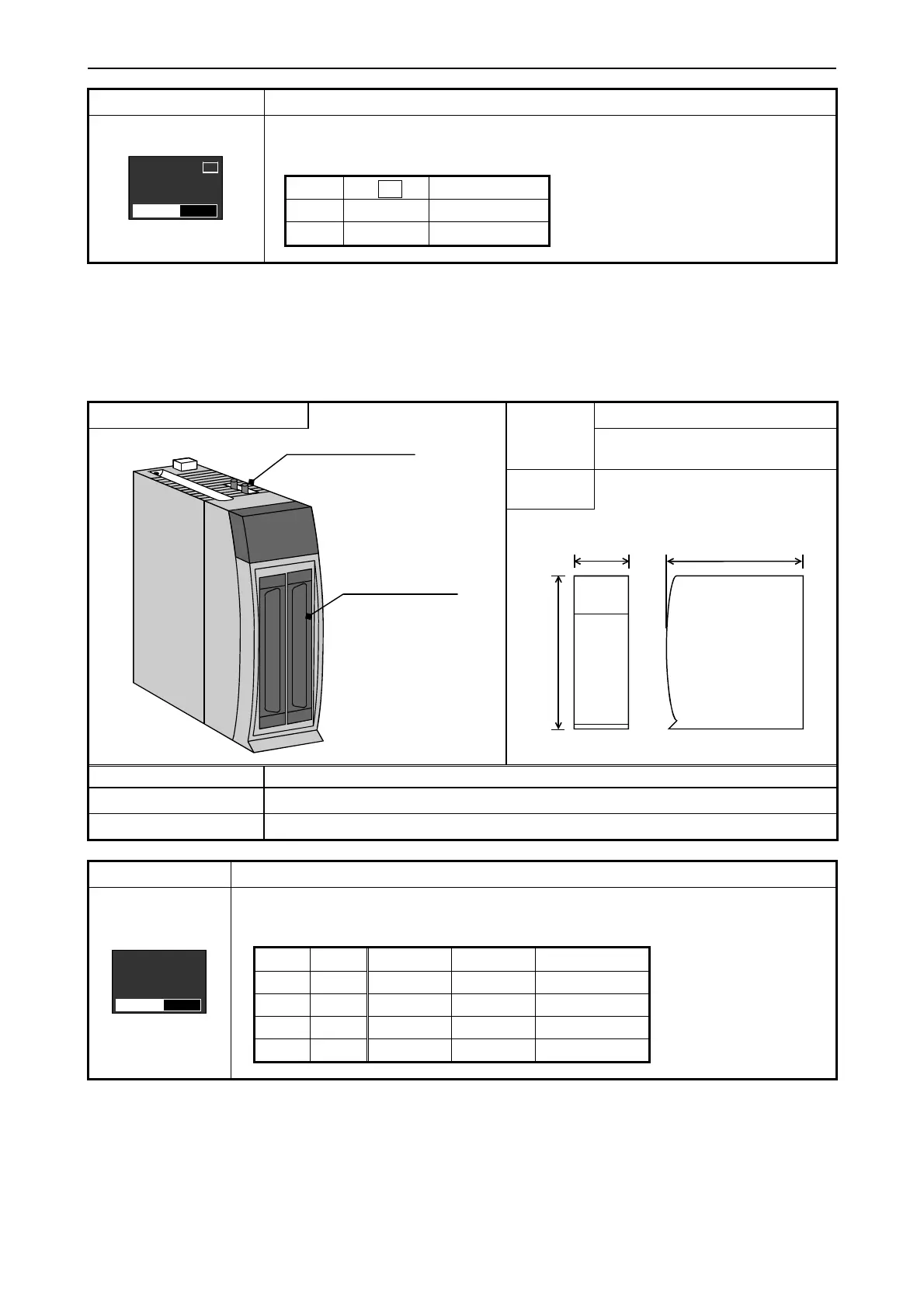

(3) 64-point I/O module
Module features
EH-XD64 (Approx. 0.14kg (0.31lb.))
Type
(Weight)
EH-YT64, YTP64 (Approx. 0.13kg
(0.29lb.))
Dimensions
(mm (in.))
LED display switch
External wiring connector
SW2
SW1
30 (1.18)
100 (3.94)
95 (3.74)
Item Description
LED display switch This is to switch I/O groups to be displayed.
External wiring connector This is a connector for connecting I/O signals.
Front view Indicated contents
When signal status is ON, LED lights up accordingly.
Displayed group can be selected by the LED display switch.
SW1 SW2 LED 16 LED 32 Displayed group
OFF OFF OFF OFF 0 to 15
ON OFF ON OFF 16 to 31
OFF ON OFF ON 32 to 47
ON ON ON ON 48 to 63
0 1 2 3
DC INPUT EH-XD64
4 5 6 7
8 9 10 11
12 13 14 15
16
32
