Chapter 2 Specifications
2 – 26

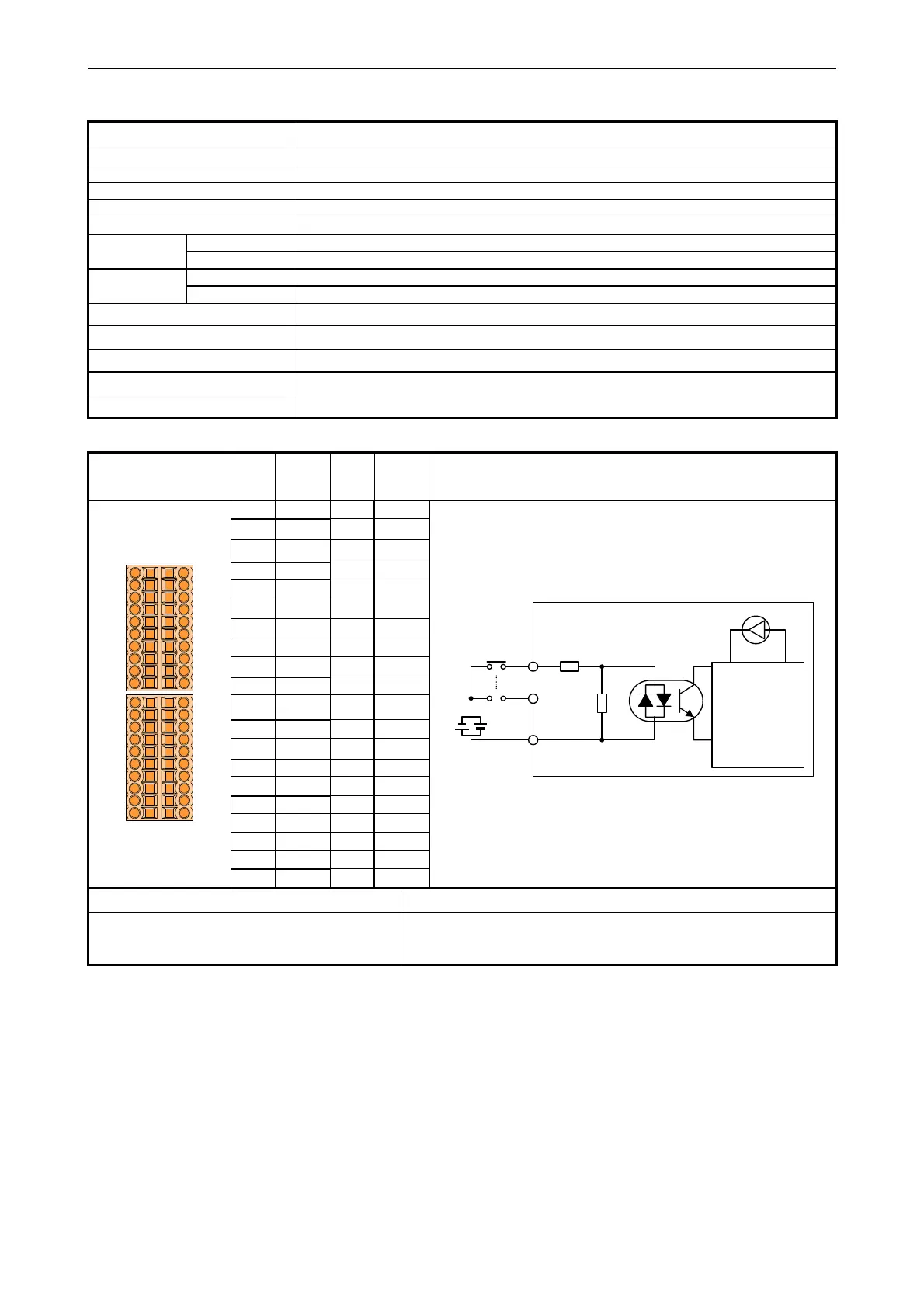

(9) EH-XDL32E
Specification
EH-XDL32E
Input type DC input (Common for sink and source)
Number of inputs 32
Input voltage 24V DC (20.4 to 28.8 V DC)
Input current Approx. 4.3mA
Input impedance Approx. 5.6kΩ
Operating ON voltage 15V minimum
voltage OFF voltage 5V maximum
Input response OFFÎON 16ms maximum
time ON ÎOFF 16ms maximum
Insulation system
Photo-coupler insulation
Input display
Green LED
External connection
Spring type terminal block (removable type)
Number of inputs / common
8 (4 commons, 8 terminals)
Internal current consumption
60 mA maximum
Terminal
configuration
No.
Signal
name
No.
Signal
name
Diagram of Internal circuit
[1] 0 [21] 16
[2] 1 [22] 17
[3] 2 [23] 18
[4] 3 [24] 19
[5] 4 [25] 20
[6] 5 [26] 21
[7] 6 [27] 22
[8] 7 [28] 23
[9] C1 [29] C3
[10] C1 [30] C3
[11] 8 [31] 24
[12] 9 [32] 25
[13] 10 [33] 26
[14] 11 [34] 27
[15] 12 [35] 28
[16] 13 [36] 29
[17] 14 [37] 30
[18] 15 [38] 31
[19] C2 [39] C4
[10]
[1]
[11]
[20]
[21]
[30]
[31]
[40]
[20] C2 [40] C4
0
C1
7
LED
Internal circuit
Applicable connectors Applicable cable
Manufacturer: Weidmuller
Type: B2L3.5/20AUOR
Product No.175736
0.5mm
2
– 1.0mm
2
(Shared at a twisted pair cable and a single core cable.)
AWG 28 - 18
Crimping terminal cannot be used.
