Hitachi EHV+ Series User Manual

Chapter 2 Specifications
2 – 39

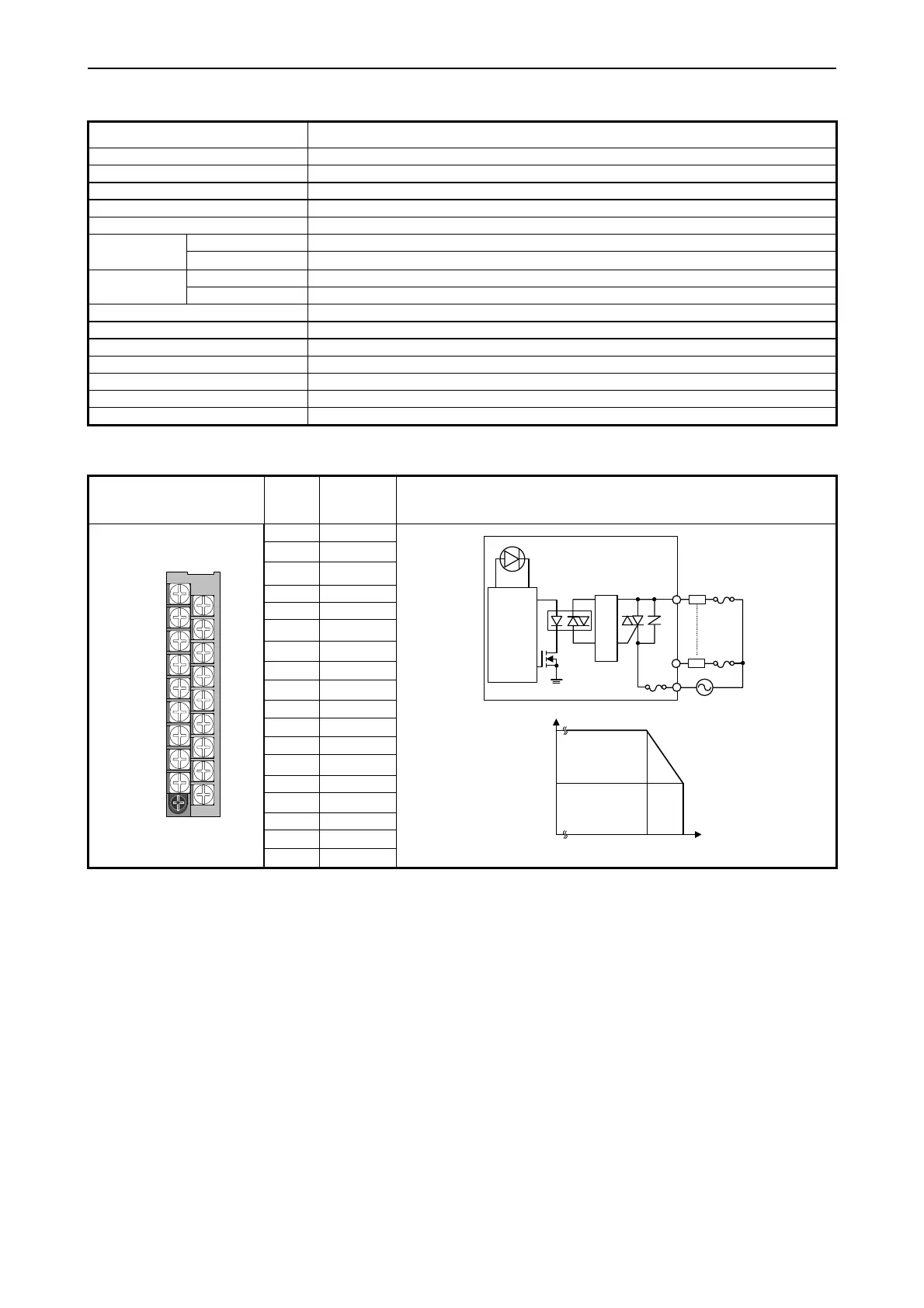

(21) EH-YS16
Specification
EH-YS16
Output specification Triac output
Number of outputs 16
Rated load voltage 100/240V AC (85 to 250V AC)
Minimum switching current 10mA
Leak current 2mA
1 circuit 0.3A
Maximum load
current
1 common
4A (Ambient temperature 45
°C), see the following derating table
OFFÎON 1ms maximum Output
response time
ON
ÎOFF 1ms + 1/2 cycle maximum
Insulation system Photo-coupler triac insulation
Output display Green LED
External connection Removable type screw terminal block (M3)
Number of output points / commons 16 (1 common, 2 terminals)
Surge removal circuit Varistor
Fuse *
1
6.3A (Be sure to install external fuse)
Internal current consumption 250 mA maximum
*1 The fuse is not replaced by users. Please contact your local supplier to repair.
Terminal configuration
No.
Signal
name
Diagram of Internal output
[1] 0
[2] 1
[3] 2
[4] 3
[5] 4
[6] 5
[7] 6
[8] 7
[9] C
[10] 8
[11] 9
[12] 10
[13] 11
[14] 12
[15] 13
[16] 14
[17] 15
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
Screw fo
r
fixing
[18] C
LED
Internal
circuit
0
15
C
Trigger circuit
Maximum common current (A)
4
3
2
1
0
20 30 40 45 50 55
Ambient temperature (
°
C)
Derating table
