Chapter 2 Specifications
2 – 40

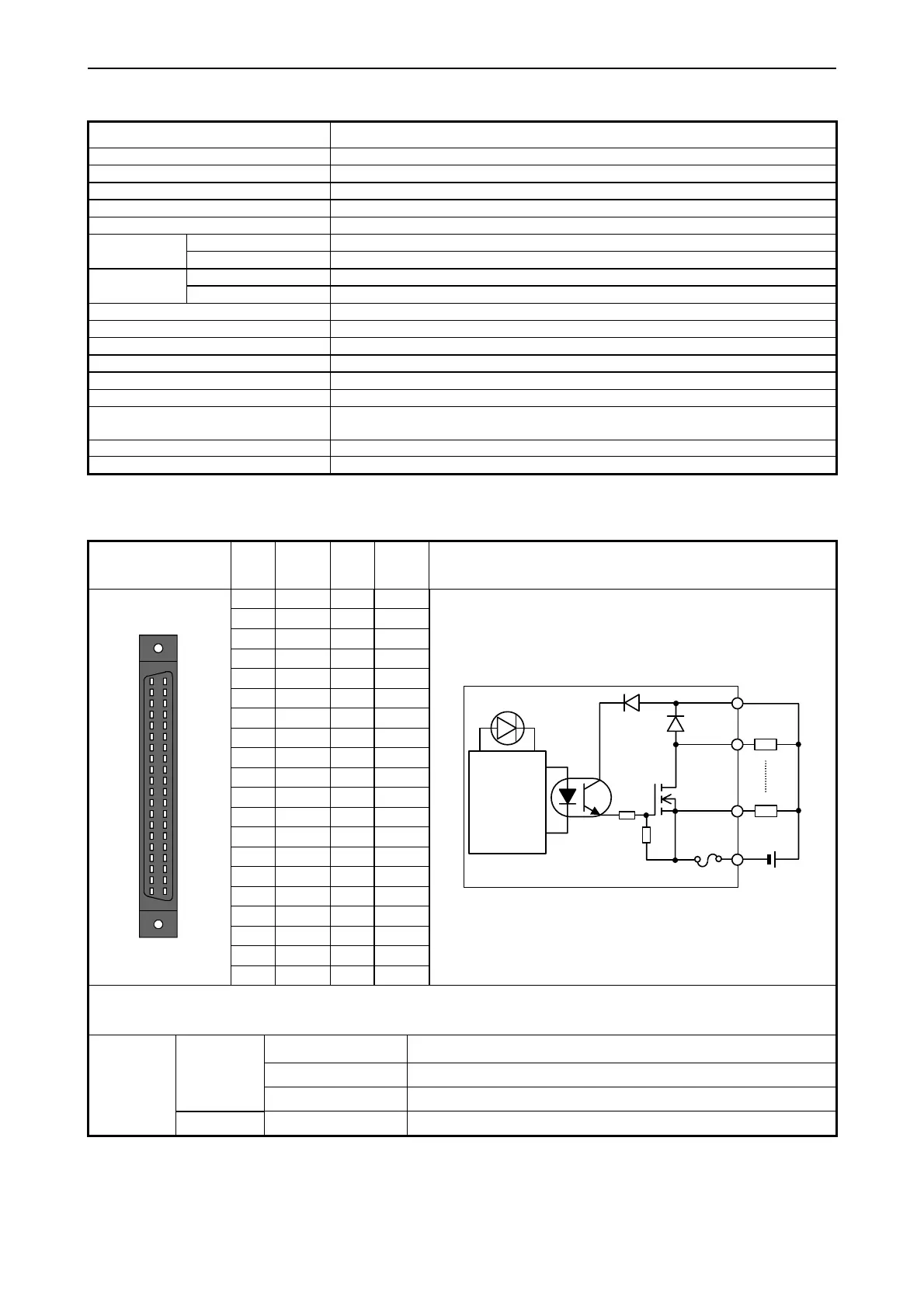

(22) EH-YT32
Specification
EH-YT32
Output specification Transistor output (sink type)
Number of outputs 32
Rated load voltage 12/24V DC (+10%, -15%)
Minimum switching current 1mA
Leak current 0.1mA
1 circuit 0.2A Maximum load
current
1 common 4A *
1
OFFÎON 0.3ms maximum Output
response time
ON
ÎOFF 1ms maximum
Insulation system Photo-coupler insulation
Output display Green LED
External connection Connector
Number of outputs / common 32 (1 common, 4 terminals)
Surge removal circuit Diode
Fuse *
2
10A / 1 common
External connection (for supplying
power to S-terminal)
12/24V DC (+10%, -15%) (30mA at the maximum)
Internal current consumption (5V DC) 90 mA maximum
Short-circuit protection function Available
*1 Total current of 4 common pins. The maximum current for single common terminal is 3A.
*2 The fuse is not replaced by users. Please contact your local supplier to repair.
Terminal
configuration
No.
Signal
name
No.
Signal
name
Diagram of Internal circuit
[1] 0 [21] 16
[2] 1 [22] 17
[3] 2 [23] 18
[4] 3 [24] 19
[5] 4 [25] 20
[6] 5 [26] 21
[7] 6 [27] 22
[8] 7 [28] 23
[9] C [29] C
[10] S [30] S
[11] 8 [31] 24
[12] 9 [32] 25
[13] 10 [33] 26
[14] 11 [34] 27
[15] 12 [35] 28
[16] 13 [36] 39
[17] 14 [37] 30
[18] 15 [38] 31
[19] C [39] C
[40]
[21]
[20]
[1]
[20] S [40] S
LED
Internal
circuit
S
0
C
31
Applicable connectors
- 120mm (4.73in.) space is required in front of the module. Be sure to consider this space in installation location.
- Use a shield cable with class D grounding.
Solder type Socket: FCN-361J040-AU, Cover: FCN-360C040-E
Crimp type Housing: FCN-363J040, Contact: FCN-363J-AU
Fujitsu
Takamizawa
Crimp type (flat cable) FCN-367J040-AU/F
Manufac-
turers
AMP Solder type 1473381-1
To Next Page
