Chapter 2 Specifications
2 – 43

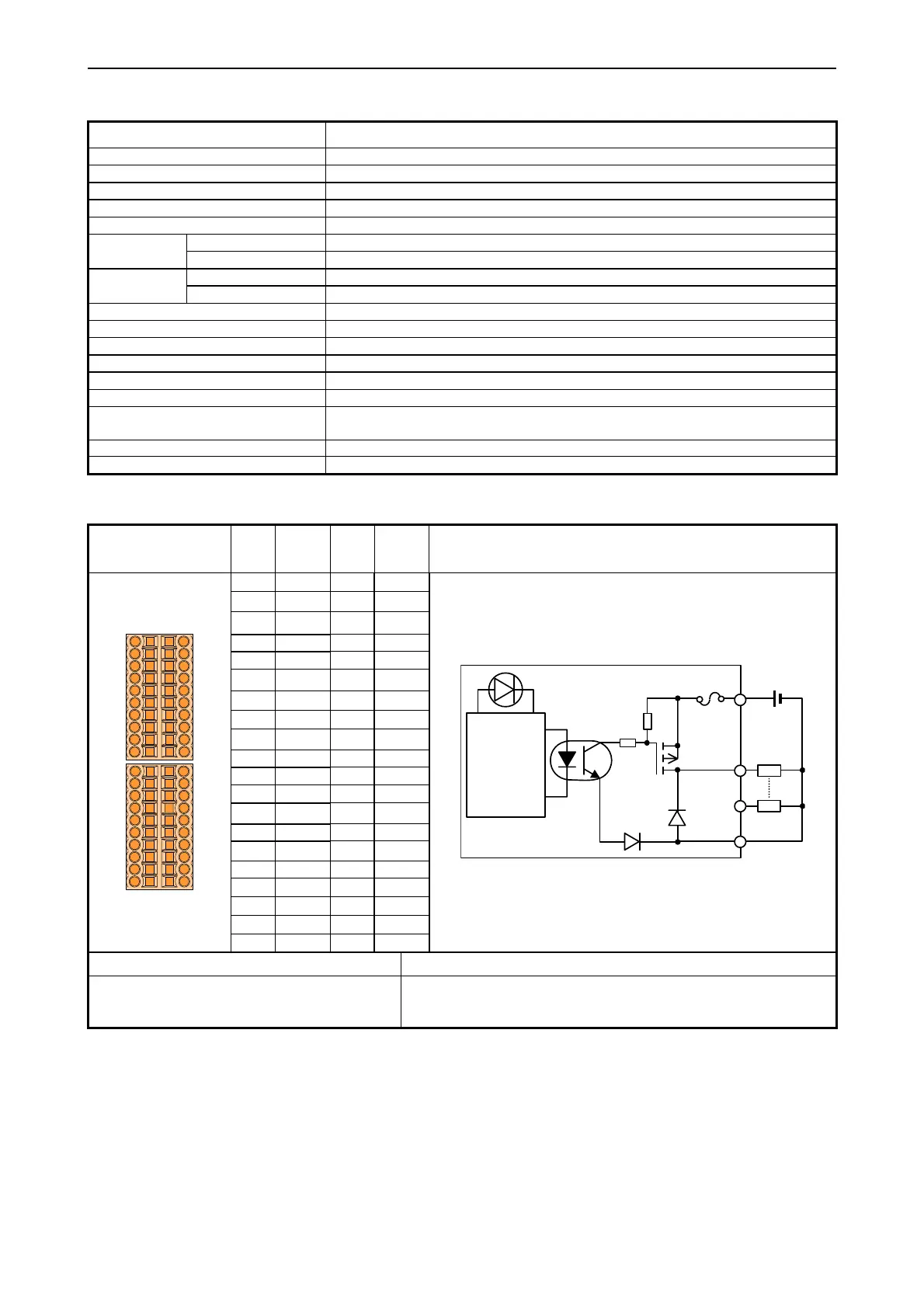

(25) EH-YTP32E
Specification
EH-YTP32E
Output specification Transistor output (source type)
Number of outputs 32
Rated load voltage 12/24V DC (+10%, -15%)
Minimum switching current 1mA
Leak current 0.1mA
1 circuit 0.2A Maximum load
current
1 common 1A
OFFÎON 0.3ms maximum Output
response time
ON
ÎOFF 1ms maximum
Insulation system Photo-coupler insulation
Output display Green LED
External connection Spring type terminal block
Number of outputs / common 8 (4 commons, 4 terminals)
Surge removal circuit Diode
Fuse *
1
10A / 1 common
External power supply (for supplying
power to S-terminal)
12/24V DC (+10%, -15%) (30mA at the maximum)
Internal current consumption (5V DC) 90 mA maximum
Short-circuit protection function Available
*1 The fuse is not replaced by users. Please contact your local supplier to repair.
Terminal
configuration
No.
Signal
name
No.
Signal
name
Diagram of Internal circuit
[1] 0 [21] 16
[2] 1 [22] 17
[3] 2 [23] 18
[4] 3 [24] 19
[5] 4 [25] 20
[6] 5 [26] 21
[7] 6 [27] 22
[8] 7 [28] 23
[9] C1 [29] C3
[10] S1 [30] S3
[11] 8 [31] 24
[12] 9 [32] 25
[13] 10 [33] 26
[14] 11 [34] 27
[15] 12 [35] 28
[16] 13 [36] 29
[17] 14 [37] 30
[18] 15 [38] 31
[19] C2 [39] C4
[10]
[1]
[11]
[20]
[21]
[30]
[31]
[40]
[20] S2 [40] S4
LED
Internal
circuit
S1
0
C1
7
Applicable connectors Applicable cable
Manufacturer: Weidmuller
Type: B2L3.5/20AUOR
Product No.: 175736
0.5mm
2
– 1.0mm
2
(shared at a twisted pair cable and a single core cable.
AWG 28 - 18
A crimp terminal cannot be used.
