Hitachi RPI-5.0FSN4E - Procedure for Checking Fan Motors in Indoor Units

8 Troubleshooting
256
SMGB0077 rev.0 - 01/2013

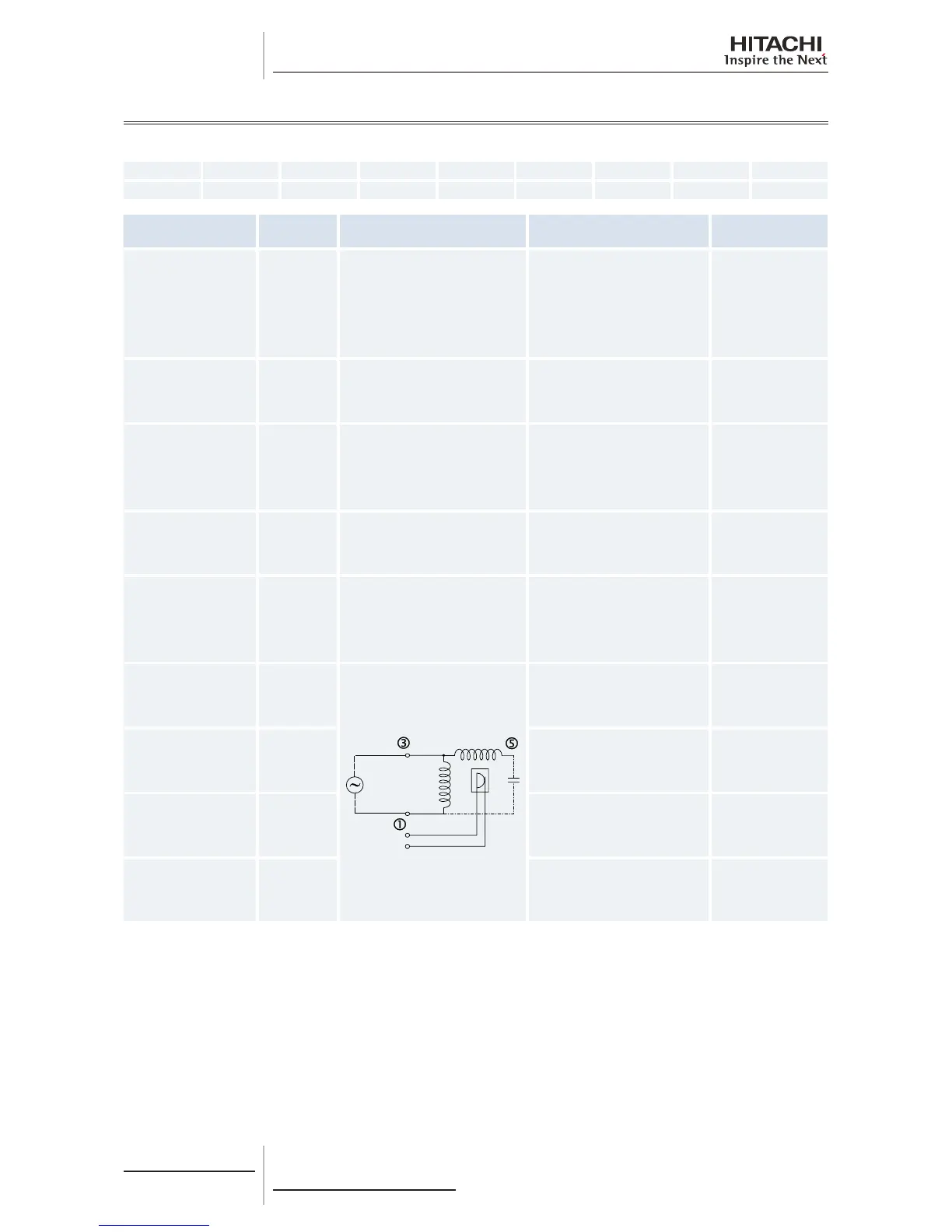

8.3 Procedure for checking fan motors in indoor units
Name and abbreviation of the cable colours used:
Black Brown Red Yellow Green Blue Grey Orange White
BLK BRN RED YEL GRN BLU GRY ORN WHT
Indoor units
Power
output
Wiring diagram Cable no. Resistance (Ω)
RCI-1.0FSN3
RCI-1.5FSN3
RCI-2.0FSN3
RCI-2.5FSN3
RCI-3.0FSN3
57 W DC motor — —
RCI-4.0FSN3
RCI-5.0FSN3
RCI-6.0FSN3
127 W DC MOTOR — —
RCI-1.0FSN3Ei
RCI-1.5FSN3Ei
RCI-2.0FSN3Ei
RCI-3.0FSN3Ei
56 W DC motor — —
RCI-4.0FSN3Ei
RCI-5.0FSN3Ei
RCI-6.0FSN3Ei
108 W DC motor — —
RCIM-0.8FSN2
RCIM-1.0FSN2
RCIM-1.5FSN2
RCIM-2.0FSN2
52 W DC motor — —
RCD-1.0FSN2
RCD-1.5FSN2
RCD-2.0FSN2
35 W
BLK1-3RED
RED3-5WHT
159.00
92.00
to 20 °C
RCD-2.5FSN2
RCD-3.0FSN2
55 W
BLK1-3RED
RED3-5WHT
70.90
81.70
to 20 °C
RCD-4.0FSN2 35 W x 2
BLK1-3RED
RED3-5WHT
159.00
92.00
to 20 °C
RCD-5.0FSN2 55 W x 2
BLK1-3RED
RED3-5WHT
70.90
81.70
to 20 °C
