10 Servicing
390
SMGB0077 rev.0 - 01/2013

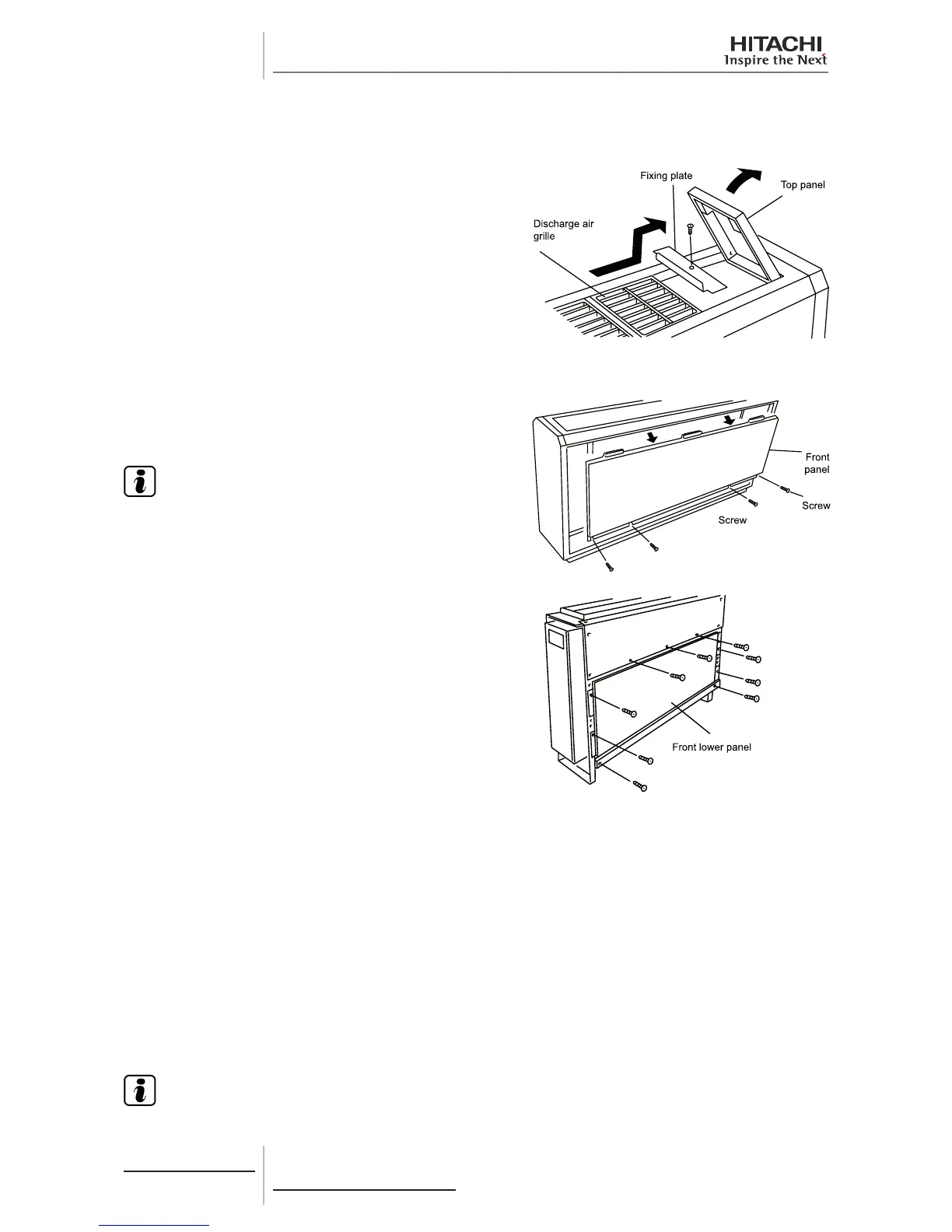

10.10.3 Removal of the air outlet grille
RPF-(1.0-2.5)FSN2E
Remove the screw holding the securing plate.
Open the upper panel so that it is vertical.
Slide and remove the air outlet grille.
10.10.4 Removal of the front panel
Remove the central panel air lter in line with the instructions given
in chapter Removal of the air lter.
Remove the screws from the lower part of the front panel.
N O T E
• RPF-(1.0-2.5)FSN2E: 4 screws.
• RPFI -1.0FSN2E: 9 screws.
• RPFI -1.5FSN2E: 10 screws.
Remove the 11 set screws and remove the front panel.
10.10.5 Removal of the fan motor
Remove the air inlet grille as indicated in chapter Removal of the air inlet grille.
Remove the air lter as indicated in section Removal of the air lter.
Remove the four set screws from the fan motor assembly plate and remove it.
Disconnect the wiring from the fan motor connector. Remove the wiring board and the connector.
Remove the cover by pressing the four attachment points inwards.
Loosen the bolts using a wrench.
Remove the securing plate.
Remove the fan motor by sliding it backwards.
N O T E
Be careful when releasing the fan motor, as it could fall.
