10 Servicing
392
SMGB0077 rev.0 - 01/2013
C A U T I O N
• Do not touch the electrical components of the PCB.
• Do not apply force to the PCB, as this could damage it.
• Pay special attention to the position of the connectors on the PCB. An incorrect position during installation
may damage the PCB.
10.10.7 Removal of the thermistors from the liquid and gas piping
Remove the air inlet grille as indicated in section Removal of the
air inlet grille.
Remove the air lter as indicated in section Removal of the air
lter.
Remove the front panel as indicated in section Removal of the
front panel.

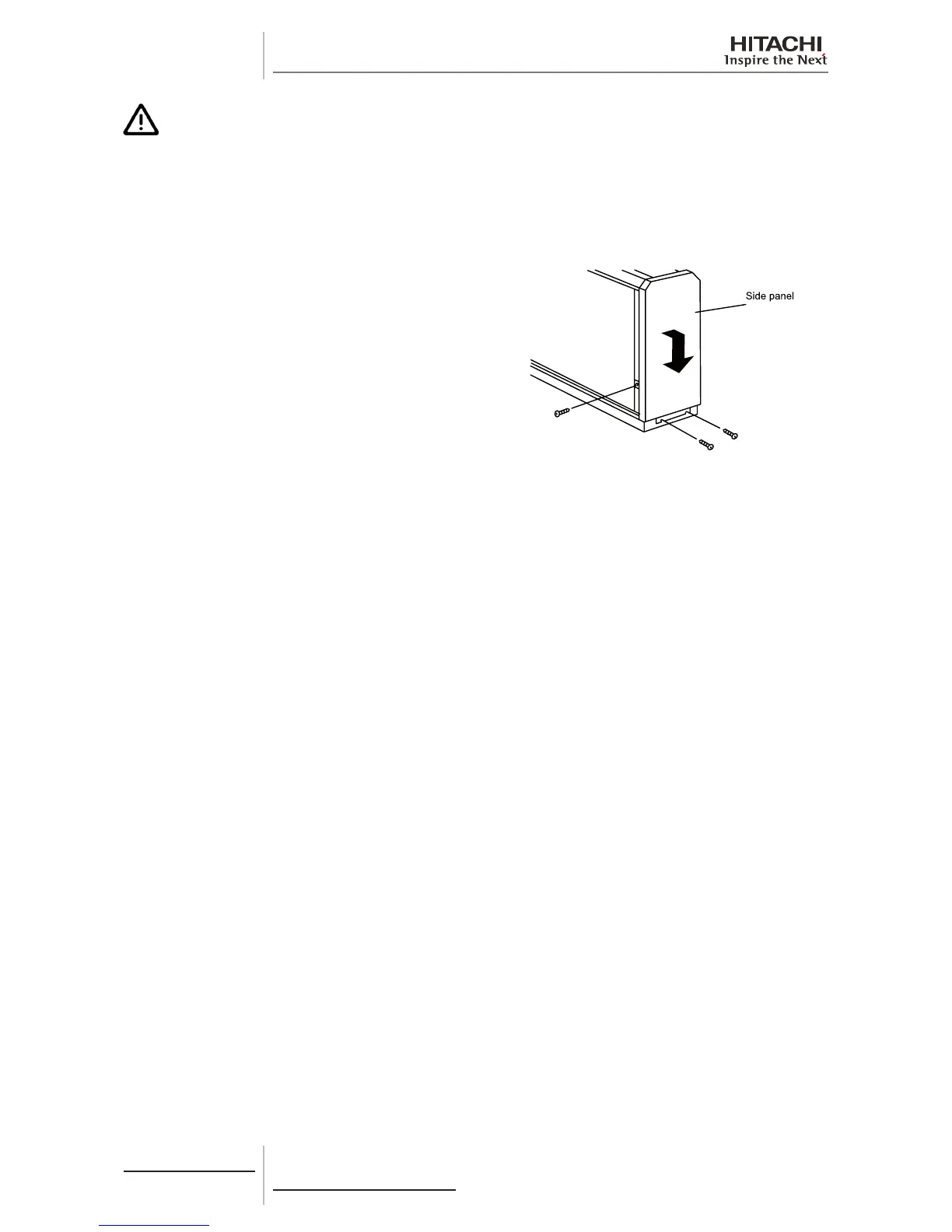

Remove the side panel, removing the 3 set screws and pulling the
panel downwards.
Disconnect the wiring from the thermistor and remove the
thermistor.
