2.5.4 Maintenance of the suction air lter

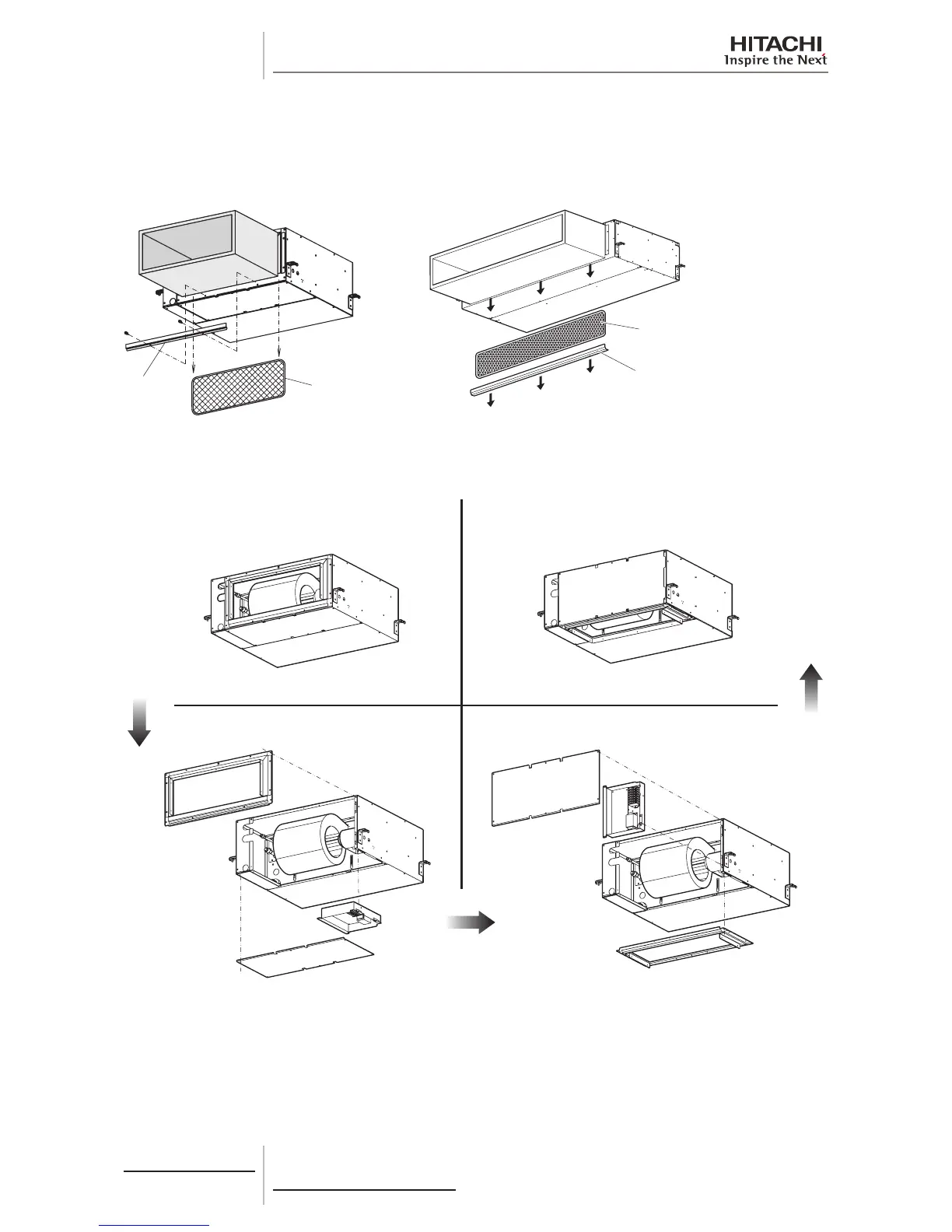

Simply remove the set screws from the bar -1- (RPIM units: 2 screws, RPI units: 3 screws) and remove it to pull the lter
downwards.
RPIM RPI
2
1
Change in the air suction direction RPIM-(0.8-1.5)FSN2E (-DU)
Change in position of the air inlet on RPIM-(0.8-1.5)FSN2E(-DU) models: the position of the air inlet and, therefore, its
direction can be modied by changing the position of the rear cover, as shown in the illustrations.
1
2
4
3
1. Initial position of the air inlet (factory-supplied).
2. Remove the front and rear covers and the electrical box from the unit.
3. Switch the position of the front and rear covers. Change the position of the electrical box on the unit as indicated in the illustration.
4. Final position of the air inlet.
