Hitachi RPI-5.0FSN4E Service Manual

2 Unit installation
SMGB0077 rev.0 - 01/2013
83
2
S
2.11.2 Filters

Filter box
For RCI-FSN3 indoor units: B-160H2

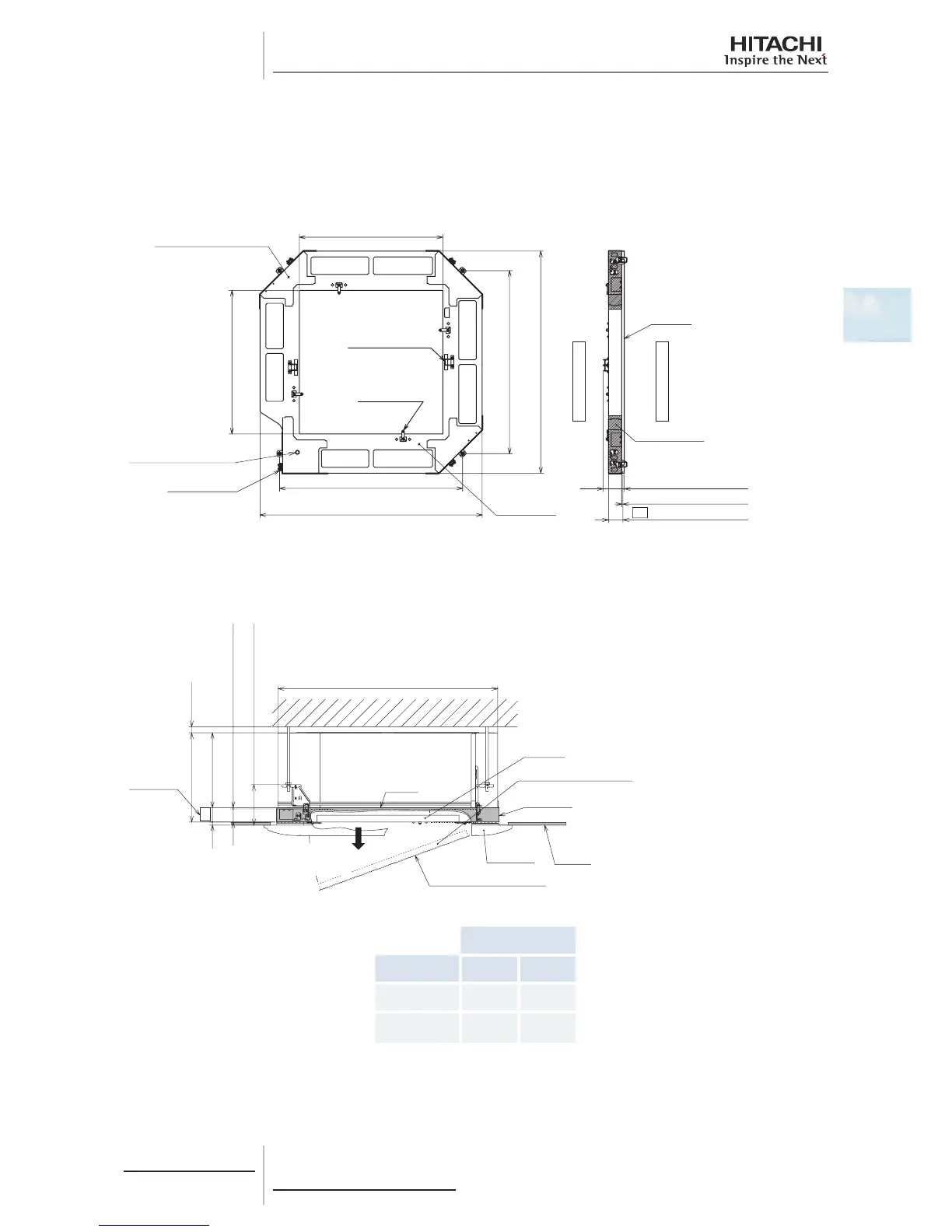

The dimensions of the lter box are shown in the following gure.
Air Panel Side
Indoor Unit Side
20 50
10 (Before Compression)
5 (After Compression)
55
(Installation Height)
549
549 700 800
700
800
(Installation Dimension)
Filter Holder
(Resin)
(Opening Dimension)
(Installation Dimension)
(Opening Dimension)
Fixing Plate
(4 Portions)
Packing
(EPDM)
U-Shaped Hook
(2 Portions)
Insulation
(Polyethylene)
Corner Frame
(Galvanized Steel Plate)
Polystyrene
Counter Mark
(Refrigerant Pipe Side)
When the lter box is installed, the total height of the unit increases by approximately 55 mm. Therefore, pay attention to
the installation space.
Bear in mind that the size before compression is 10 mm, but the size is reduced after compression to 5mm.
840
< Service Space >
Installation
Height
5512
50
a
b
5 (after Compression)
Indoor Unit
Air Inlet Grille
Air Panel
Ceiling
Filter Box
Long Life Filter
Air Filter
Packing
155 (Suspending Position)
Min.10
Direction
to remove
the filter.
(Attached with Air Panel)
(Attached with Air Panel)
Dimensions
Model a b
1.0 - 2.5 291 236
3.0 - 6.0 341 286
