Hitachi RPI-5.0FSN4E - Removal of the Float Switch; Removal of the Air Filter

10 Servicing
357
10
SMGB0077 rev.0 - 01/2013

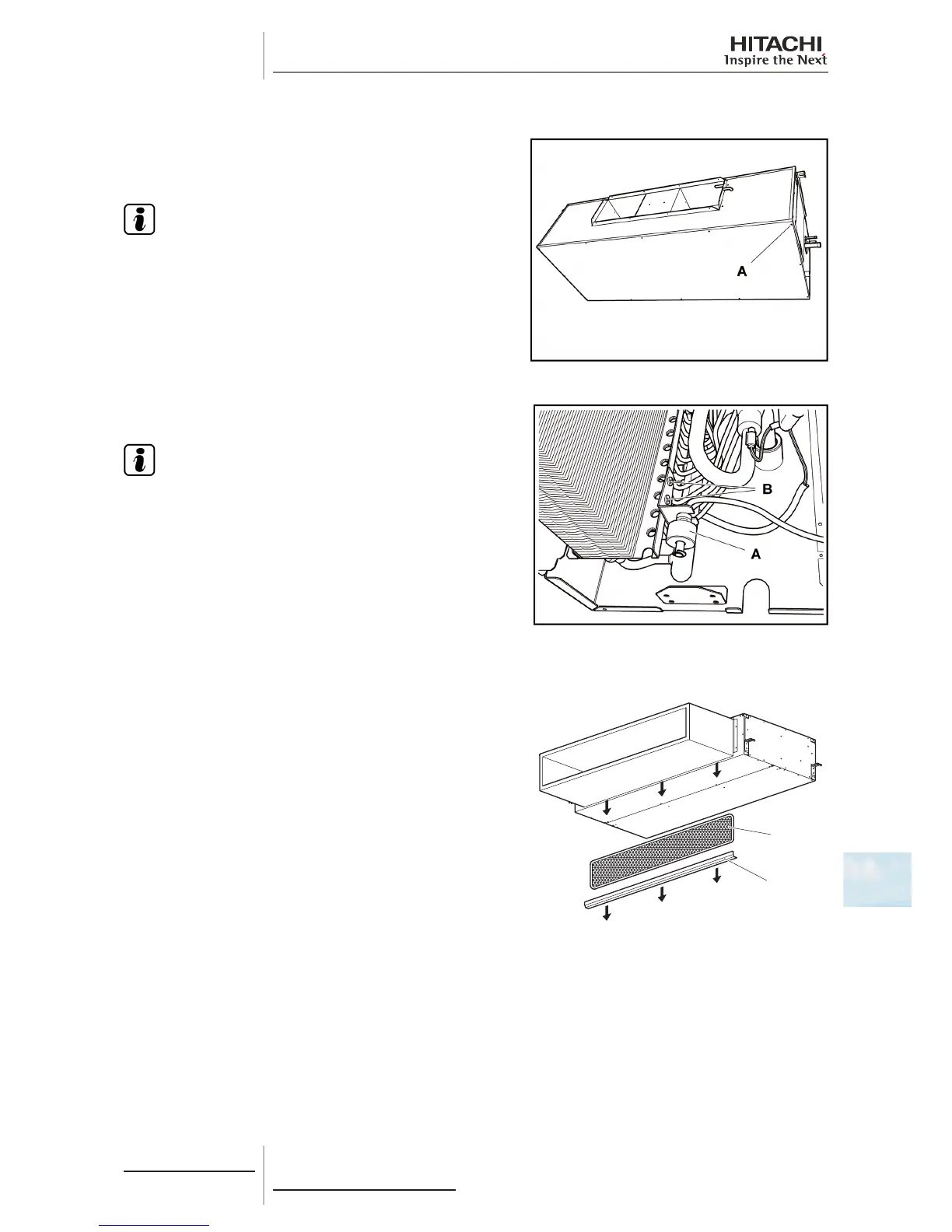

10.7.7 Removal of the oat switch
Remove all screws -A- from the lower cover of the unit and
separate it.
Remove the drain pan Removal of the drain pan.
N O T E
Todisconnectandremovetheoatswitch,previouslyseethe
chapter corresponding to the wiring diagrams in this Manual.
Loosen the resin nut securing the oat switch -A- and remove it. If
the switch support is to be removed, remove screws -B-.
N O T E
The torque value of the resin nut is 0.3 - 0.4 Nm. If the torque
value is higher, the nut will be damaged.
10.7.8 Removal of the air lter
Remove the four set screws from the support xture -1- of the air
lter -2- and separate both parts.
2
1
