10 Servicing
328
SMGB0077 rev.0 - 01/2013

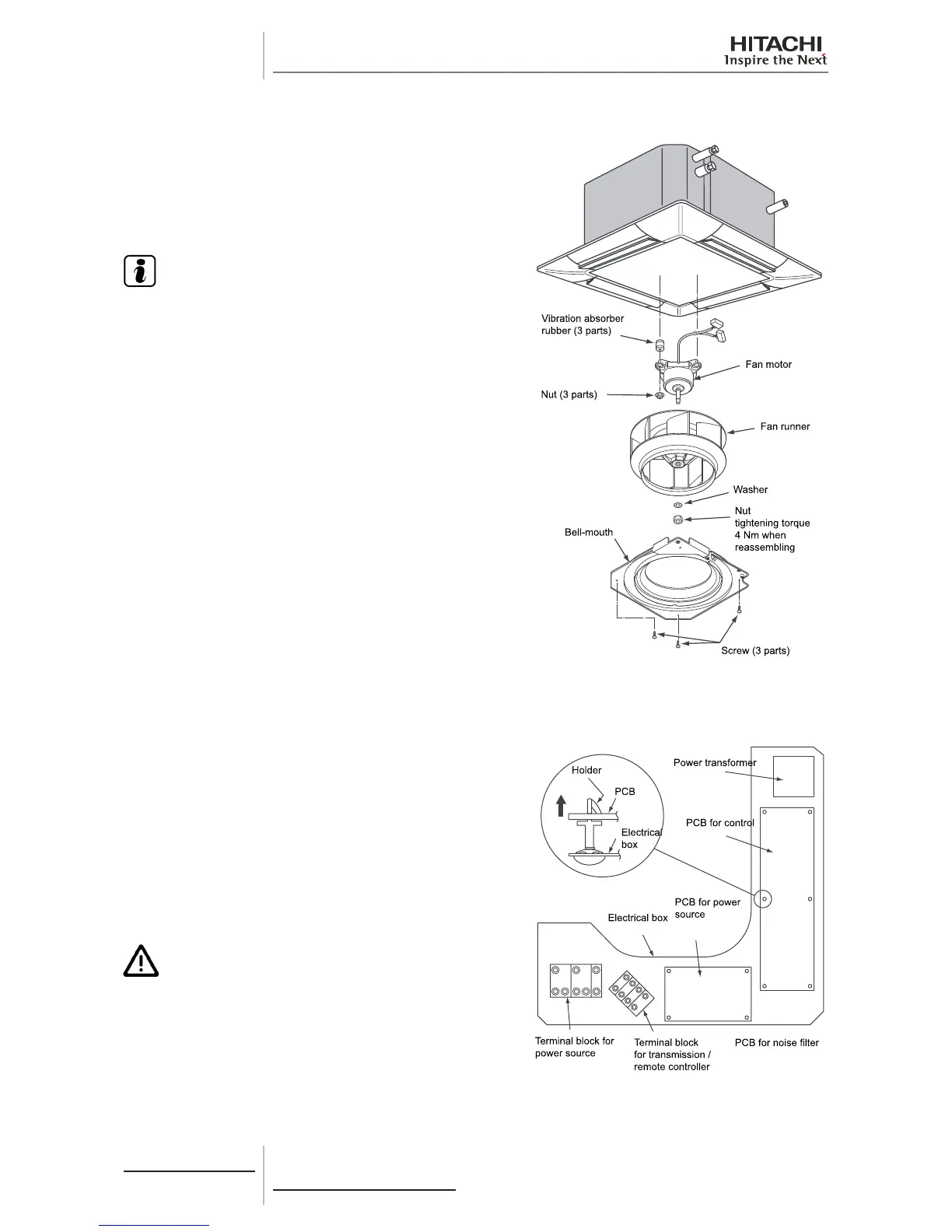

10.3.6 Removal of the fan duct and the fan
Remove the three screws securing the fan duct to the drain pan
and remove it.
Remove the duct by removing the nut and washer securing it.
Remove the fan motor connector.
Remove the three nuts securing the fan motor and remove it.
N O T E
Torque value: maximum 4Nm.
10.3.7 Removal of the printed circuit board (PCB)
Remove the air inlet grille as indicated in chapter Removal of the
air inlet grille.
Remove the electrical box cover as indicated in chapter Removal
of the electrical box.
Separate all of the wiring connectors on the printed circuit boards
(PCB).
Carefully remove the securing supports from the control PCB (six),
from the power supply PCB (four) and from the noise îš¿lter PCB
(four) by pressing carefully on the support tabs with long-tipped
pliers, as shown in the îš¿gure.
C A U T I O N
• Do not touch the electrical components of the PCB.
• Do not apply force to the PCB, as this could damage it.
• Pay special attention to the position of the connectors
on the PCB. An incorrect position during installation may
damage the PCB.
