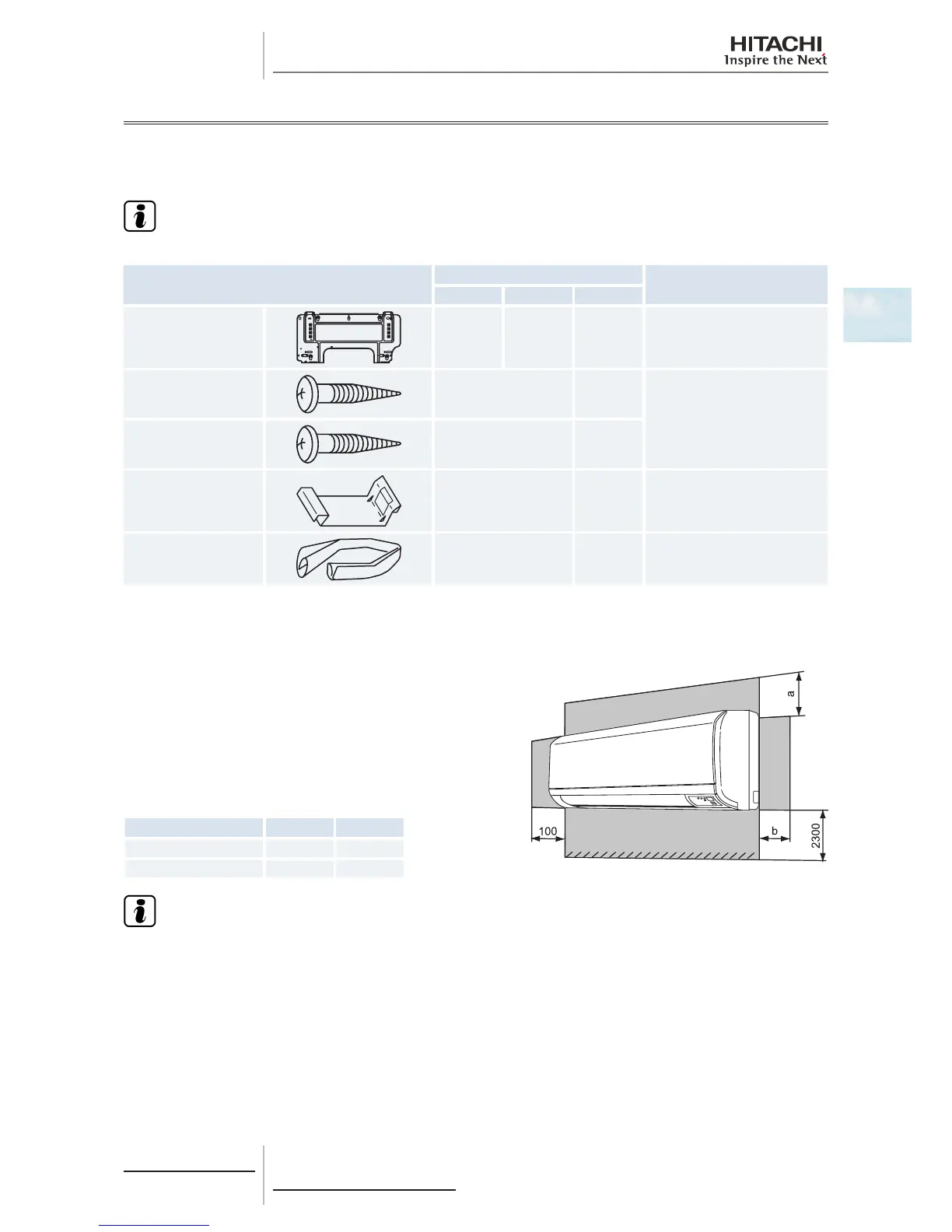

2.7 RPK - FSN(H)3M Wall mounted
2.7.1 Accessories supplied with the unit
Check that the following accessories are supplied with the unit.
N O T E
Please contact your HITACHI distributor if any of the accessories has not been supplied with the unit.
Accessory
Q’ty
Purpose
0.8-1.0 1.5 2.0-4.0
Suspension bracket
1 1 1 For mounting indoor unit
Screw (Ø4 x 25L)
6 8
For xing suspension bracket
Screw (Ø4 x 40L)
2 4
Fixing plate
- 1 For xing piping
Thermal Insulation pipe
1 1 For insulating refrigerant piping
2.7.2 Unit installation
Initial checks
Check that there is enough space around the unit. Consult the
corresponding chapter of the Technical Manual for information on
the unit measurements.
Before starting installation, plan the direction of the pipes and
wiring required. Also bear in mind that there must be enough
space around the unit for installation and maintenance.
Unit: mm
Model a b
RPK-(0.8-1.5)FSN(H)3M 150 100
RPK-(2.0-4.0)FSN3M 100 200
NOTE
Bear in mind the air distribution from the unit to the room and select a suitable place for an even air temperature
in the room.
Check that the drain hose can be installed maintaining the necessary down-slope.
