Hitachi RPI-5.0FSN4E - Removal of the Float Switch; Removal of the Thermistors from the Liquid and Gas Pipes

10 Servicing
322
SMGB0077 rev.0 - 01/2013

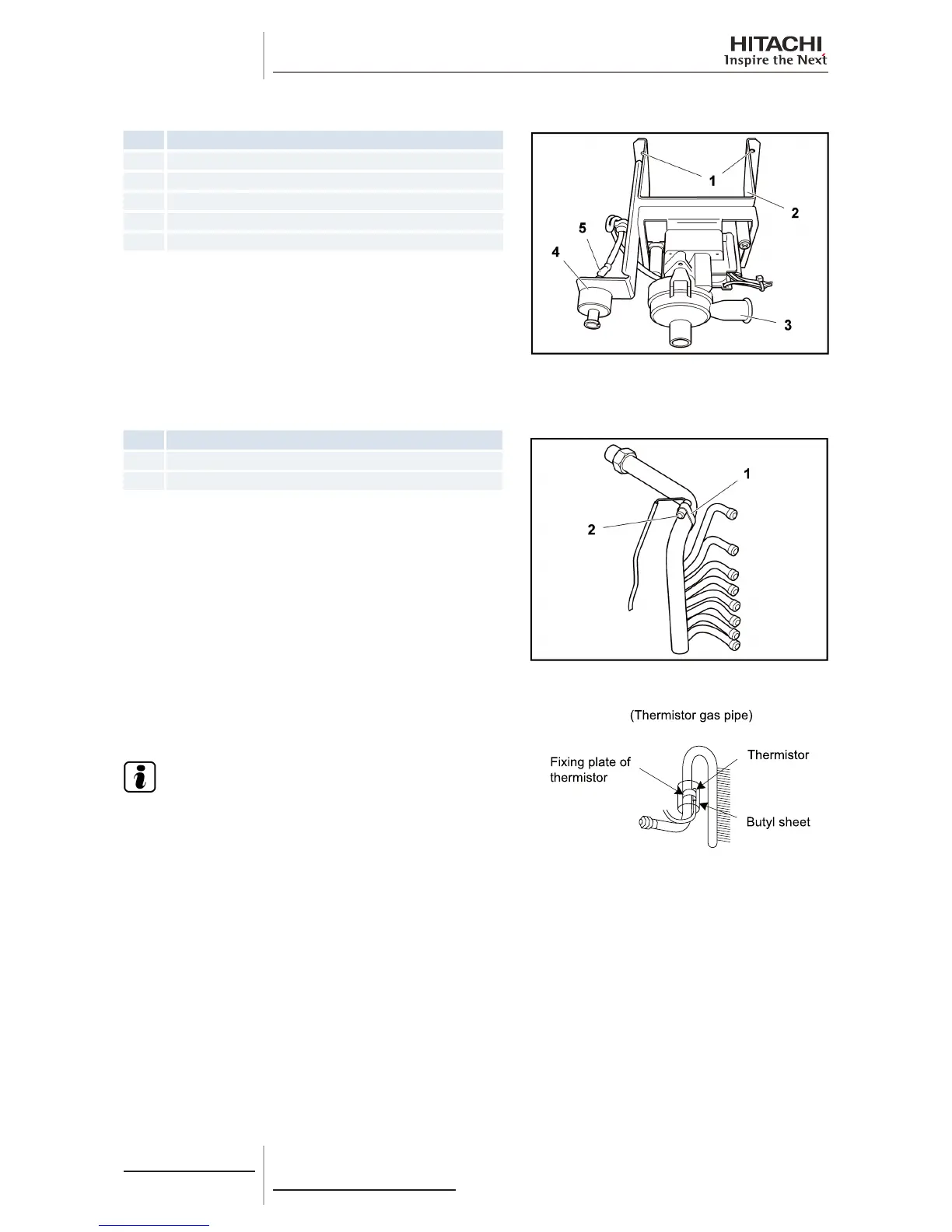

10.2.10 Removal of the oat switch
Nº Part
1 Securing plate screw
2 Securing base
3 Drain mechanism
4 Float switch
5 Nut
Remove the drain pan as indicated in chapter Removal of the
drain pan.
Loosen the resin nut securing the oat switch and remove it.
Remove the two screws securing the drain mechanism to remove
the mechanism.
10.2.11 Removal of the thermistors from the liquid and gas pipes
Nº Part
1 Thermistor securing plate
2 Thermistor
Remove the optional air panel in line with the instructions given in
chapter Removal of the optional air panel.
Remove the fan duct in line with the instructions given in chapter
Bellmouth removal.
Remove the drain pan as indicated in chapter Removal of the
drain pan.
Remove the butyl sheet covering the thermistor. Remove the
plate securing the thermistor to the pipe on which it is located and
remove.
N O T E
The thermistor protection and securing system is the same
on the gas and liquid pipe.
