2 Unit installation
32
SMGB0077 rev.0 - 01/2013

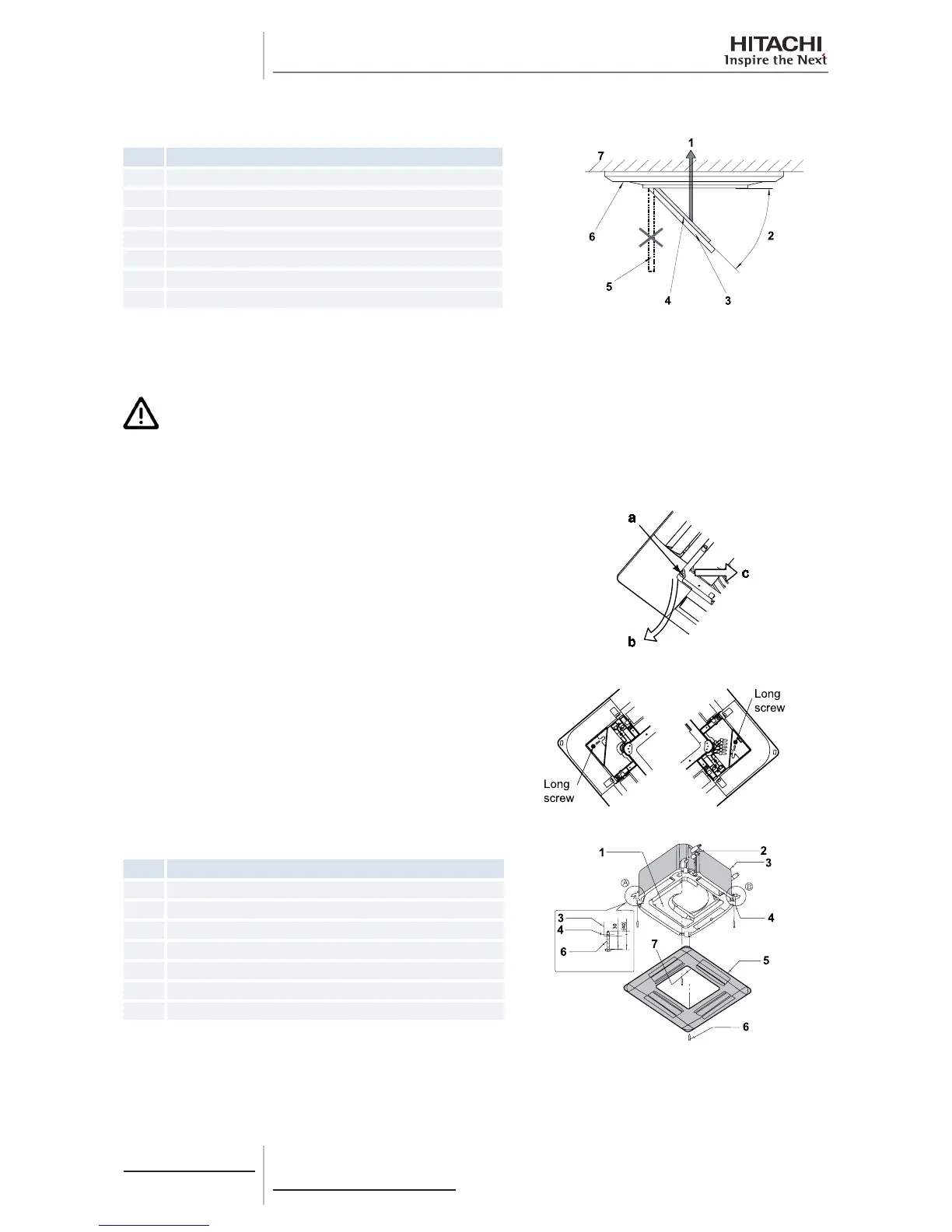

Remove the air inlet grille from the air panel
Nº Part
1 Take up the grille keeping it inclined
2 45° (correct)
3 Air intake grille
4 Air lter
5 Wrong
6 Air panel
7 Ceiling
Open the air inlet grille until it is at an angle of approximately 45° in relation to the air panel surface.
Lift the grille while keeping it tilted.
C A U T I O N
Do not allow the grille to swing freely or the securing mechanism will break.
Air panel installation
Remove the screw located next to mark -a-.
Press the securing tabs in the direction of the arrow -b-.
Remove the corner cover by pulling it in direction -c-.
Thread the long screw to secure the air panel temporarily.
Adjust the corner of the indoor unit at the refrigerant connection
part to the position marked as PIPE SIDE.
Attach the air panel to the long screw (2 position) so that it can be
temporarily tted and adjusted.
Nº Part
1 Electric control box
2 Refrigerant pipe connections
3 Indoor unit
4 Fixing plate
5 Air panel
6 Long screw (4)
7 Indication “PIPE SIDE”
