Hitachi UTOPIA R32 Series User Manual

7
PMEN0654 rev.0 - 12/2023
2
RAS-(2-3)HVRC3

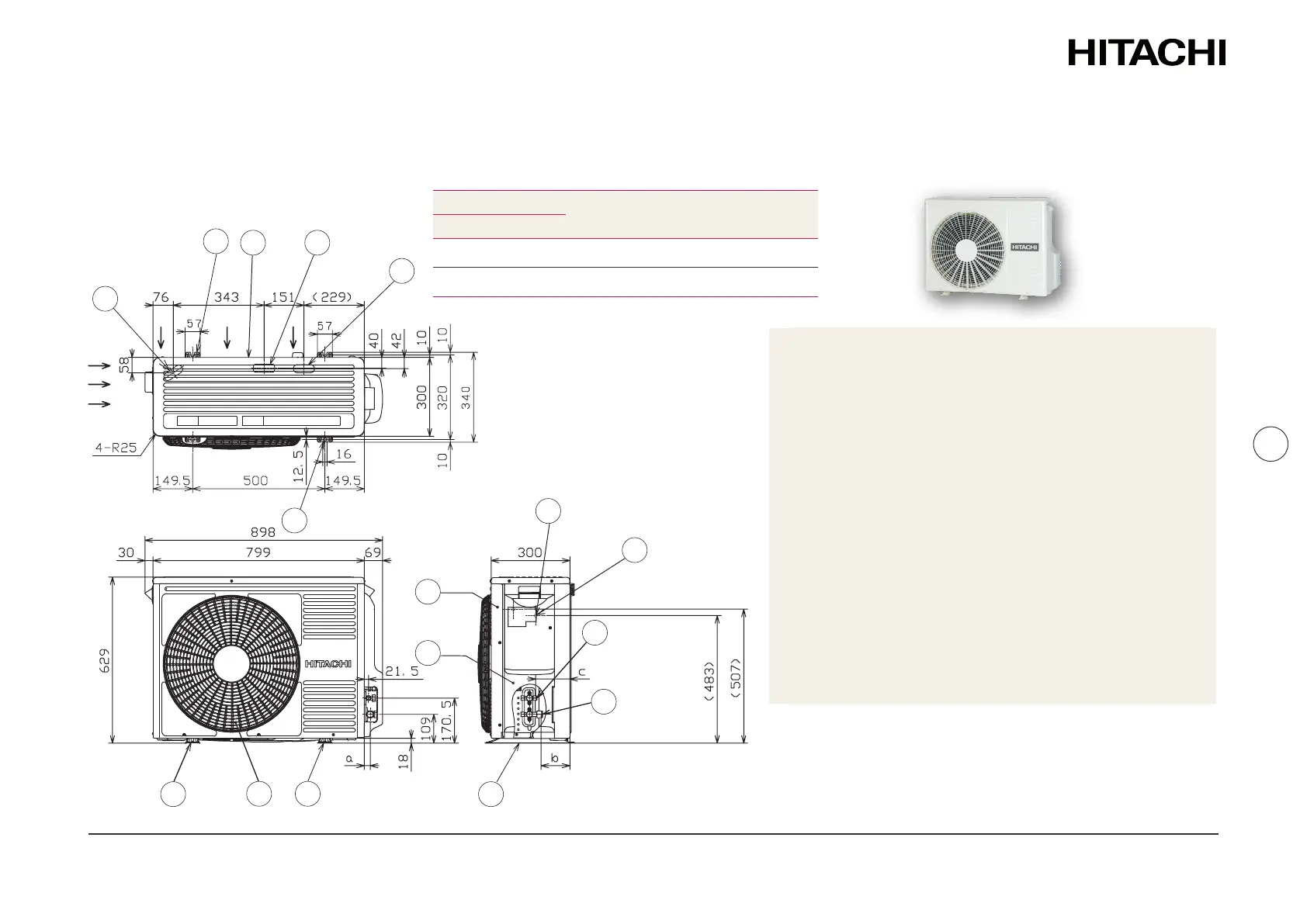

NAME OF PARTS AND DIMENSIONAL DATA
2.1 RAS-(2-3)HVRC3
For more informaon check the technical catalogue.
1. Punched drain hole: 30x80 long hole
2. Aachment hole for M10 anchor bolt: 2-U cut hole
3. Air sucon inlet
4. Punched drain hole: For drain pipe
5. Aachment hole for M10 anchor bolt: 2-Long hole
6. Foot part
7. Air discharge outlet
8. Pipe cover
9. Service cover
10. Terminal board for power supply and transmission
Terminal screw of power supply wire (M5)
Terminal screw of transmission wire (M4)
11. Terminal screw of earth wire (M5)
12. Connecon of refrigerant liquid pipe: with are nut for
Øe copper pipe
13. Connecon of refrigerant gas pipe: With are nut for
Ød copper pipe
1
2
3 4
1
6
7
8
6
9
10
11
12
13
6
5
Dimension
a b c d e
Model
RAS-(2/2.5)HVRC3 22.5 109 129 12.7 6.35
RAS-3HVRC3 26.5 103 127.5 15.88 9.52
