Hitachi UTOPIA R32 Series User Manual

71
PMEN0654 rev.0 - 12/2023
16
SNOWPROTECTIONHOOD
OPTIONAL PARTS FOR RAS-(2-3)HVRC3 SERIES

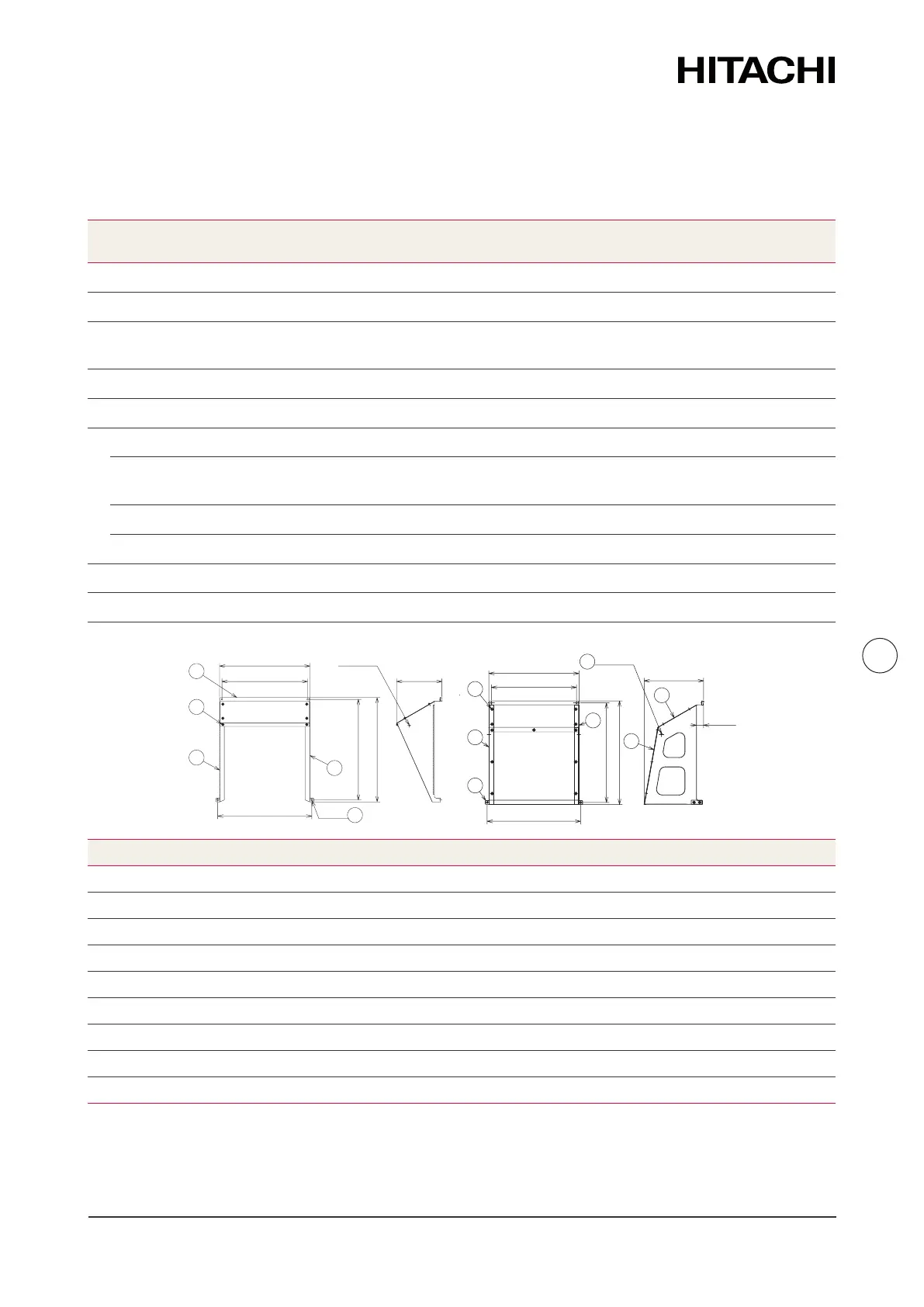

16.4 Snow protecon hood
16.4.1 Air discharge hood
Product name
ASG-SP10FTB (Half) (1)
ASG-SP11FTB (Full) (2)
Material Bonderized steel sheet
Color Gray (1.0Y8.5/0.5)
Weight
(1) 1.9 kg
(2) 4.3 kg
Assembling Assembly on site
Components
Hood For air discharge part x1
Fixing screw
(1) 7 x [M5x12]
(2) 16 x [M5x12]
Hood xing screw (SUS) 5 x [M5x16]
Self-screw 2 x [M4x13]
Installaon restricon Installaon with “Air ow guide” or “Wind guard” is not available.
Safety wire rope ASG-SW20A (for overturning prevenon (oponal parts))
(1) Half type
(2) Full type
1
4
2
8
3
480
240(455)
(534)
554
4 x Ø7
2 x Ø8
(500)
482
318
2 x Ø8
37.5
(532)
553
(455)
2
1
8
9
6
5
7
N° Name of parts Quanty (Half type)
1 Right plate 1
2 Le plate 1
3 Front plate 1
4 Fixing support Hole 4
5 Front plate (Upside) -
6 Front plate (Downside) -
7 Hole (safety wire rope) 2
8 Assembling screw 6
9 Fixing plate -
