17
HITRON CGNV2 USER’S GUIDE
INTRODUCTION

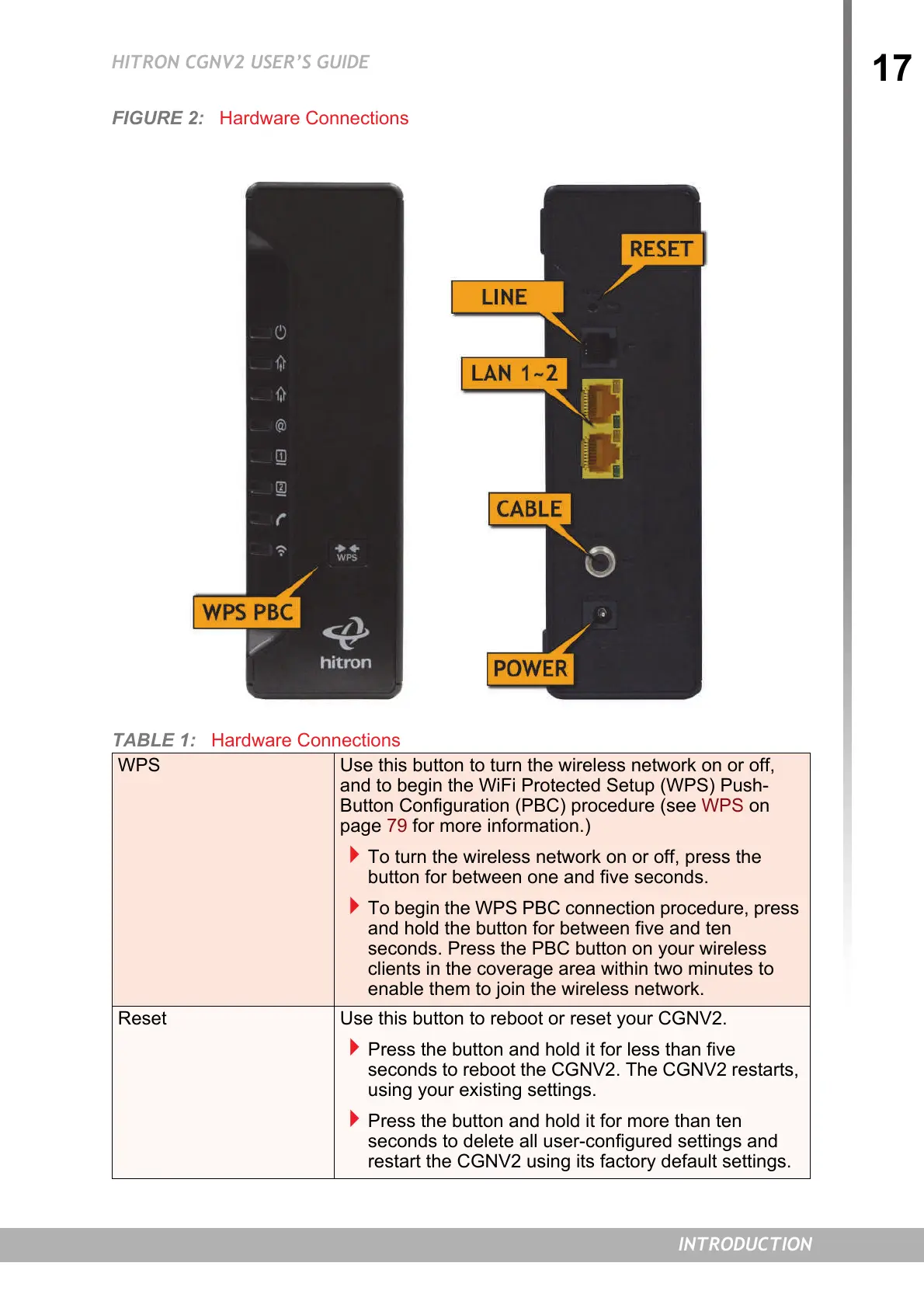

FIGURE 2: Hardware Connections
TABLE 1: Hardware Connections
WPS Use this button to turn the wireless network on or off,
and to begin the WiFi Protected Setup (WPS) Push-
Button Configuration (PBC) procedure (see
WPS on
page
79 for more information.)
To turn the wireless network on or off, press the
button for between one and five seconds.
To begin the WPS PBC connection procedure, press
and hold the button for between five and ten
seconds. Press the PBC button on your wireless
clients in the coverage area within two minutes to
enable them to join the wireless network.
Reset Use this button to reboot or reset your CGNV2.
Press the button and hold it for less than five
seconds to reboot the CGNV2. The CGNV2 restarts,
using your existing settings.
Press the button and hold it for more than ten
seconds to delete all user-configured settings and
restart the CGNV2 using its factory default settings.
