HITRON CGNV2 USER’S GUIDE
INTRODUCTION

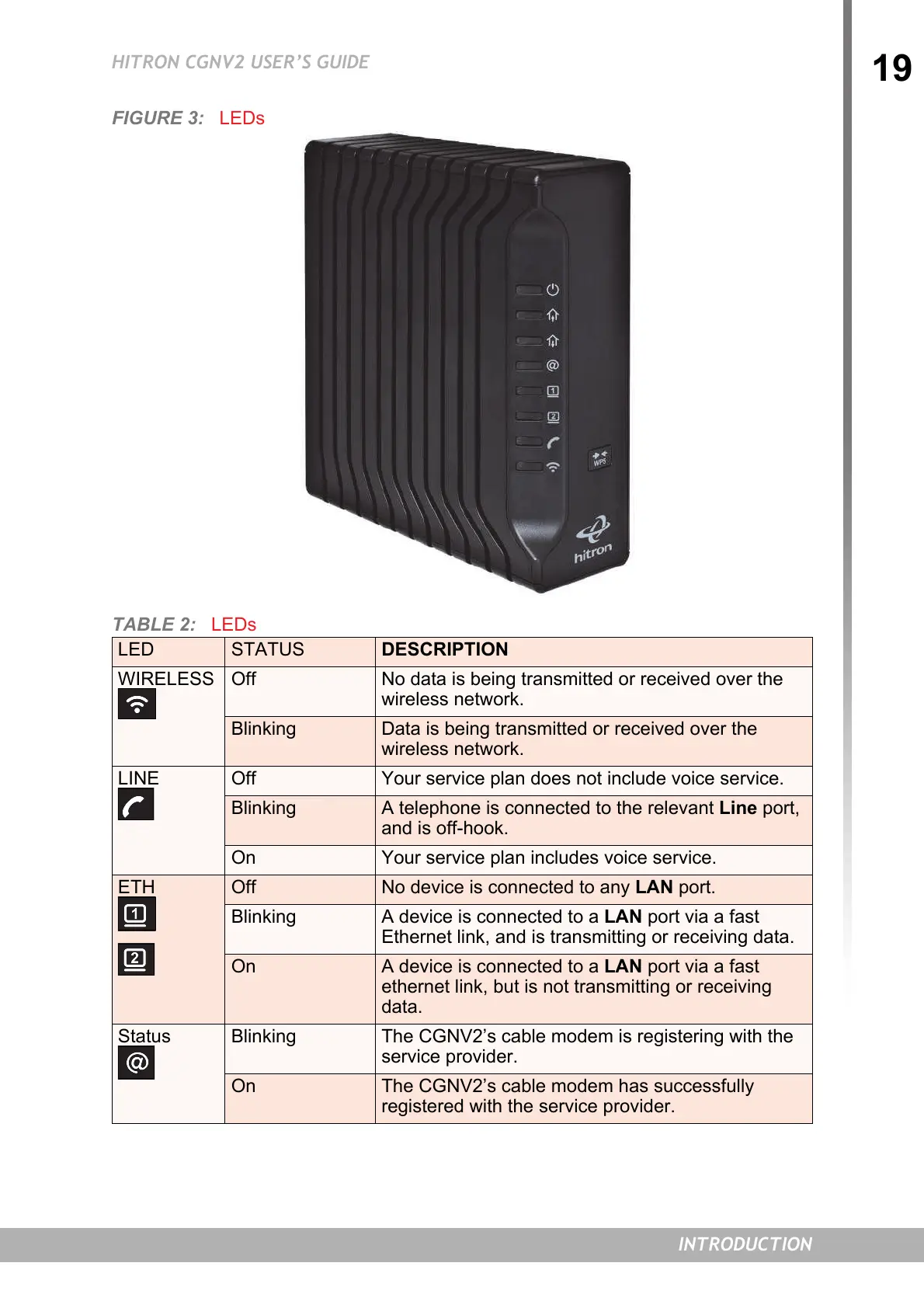

FIGURE 3: LEDs
TABLE 2: LEDs
LED STATUS DESCRIPTION
WIRELESS Off No data is being transmitted or received over the
wireless network.
Blinking Data is being transmitted or received over the
wireless network.
LINE Off Your service plan does not include voice service.
Blinking A telephone is connected to the relevant Line port,
and is off-hook.
On Your service plan includes voice service.
ETH Off No device is connected to any LAN port.
Blinking A device is connected to a LAN port via a fast
Ethernet link, and is transmitting or receiving data.
On A device is connected to a LAN port via a fast
ethernet link, but is not transmitting or receiving
data.
Status Blinking The CGNV2’s cable modem is registering with the
service provider.
On The CGNV2’s cable modem has successfully
registered with the service provider.
