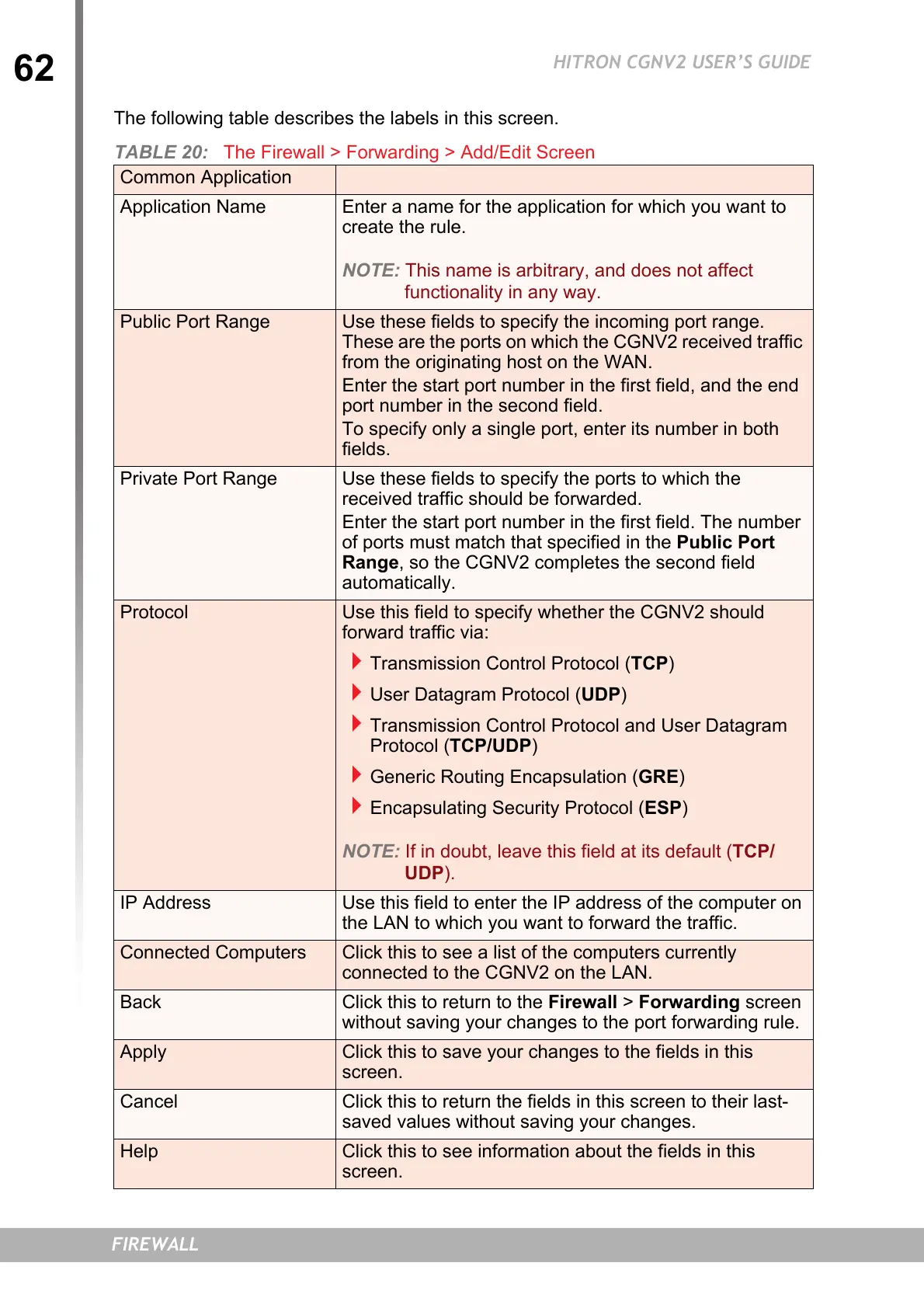

62
HITRON CGNV2 USER’S GUIDE
FIREWALL
The following table describes the labels in this screen.
TABLE 20: The Firewall > Forwarding > Add/Edit Screen
Common Application
Application Name Enter a name for the application for which you want to
create the rule.
NOTE: This name is arbitrary, and does not affect
functionality in any way.
Public Port Range Use these fields to specify the incoming port range.
These are the ports on which the CGNV2 received traffic
from the originating host on the WAN.
Enter the start port number in the first field, and the end
port number in the second field.
To specify only a single port, enter its number in both
fields.
Private Port Range Use these fields to specify the ports to which the
received traffic should be forwarded.
Enter the start port number in the first field. The number
of ports must match that specified in the Public Port
Range, so the CGNV2 completes the second field
automatically.
Protocol Use this field to specify whether the CGNV2 should
forward traffic via:
Transmission Control Protocol (TCP)
User Datagram Protocol (UDP)
Transmission Control Protocol and User Datagram
Protocol (TCP/UDP)
Generic Routing Encapsulation (GRE)
Encapsulating Security Protocol (ESP)
NOTE: If in doubt, leave this field at its default (TCP/
UDP).
IP Address Use this field to enter the IP address of the computer on
the LAN to which you want to forward the traffic.
Connected Computers Click this to see a list of the computers currently
connected to the CGNV2 on the LAN.
Back Click this to return to the Firewall > Forwarding screen
without saving your changes to the port forwarding rule.
Apply Click this to save your changes to the fields in this
screen.
Cancel Click this to return the fields in this screen to their last-
saved values without saving your changes.
Help Click this to see information about the fields in this
screen.
