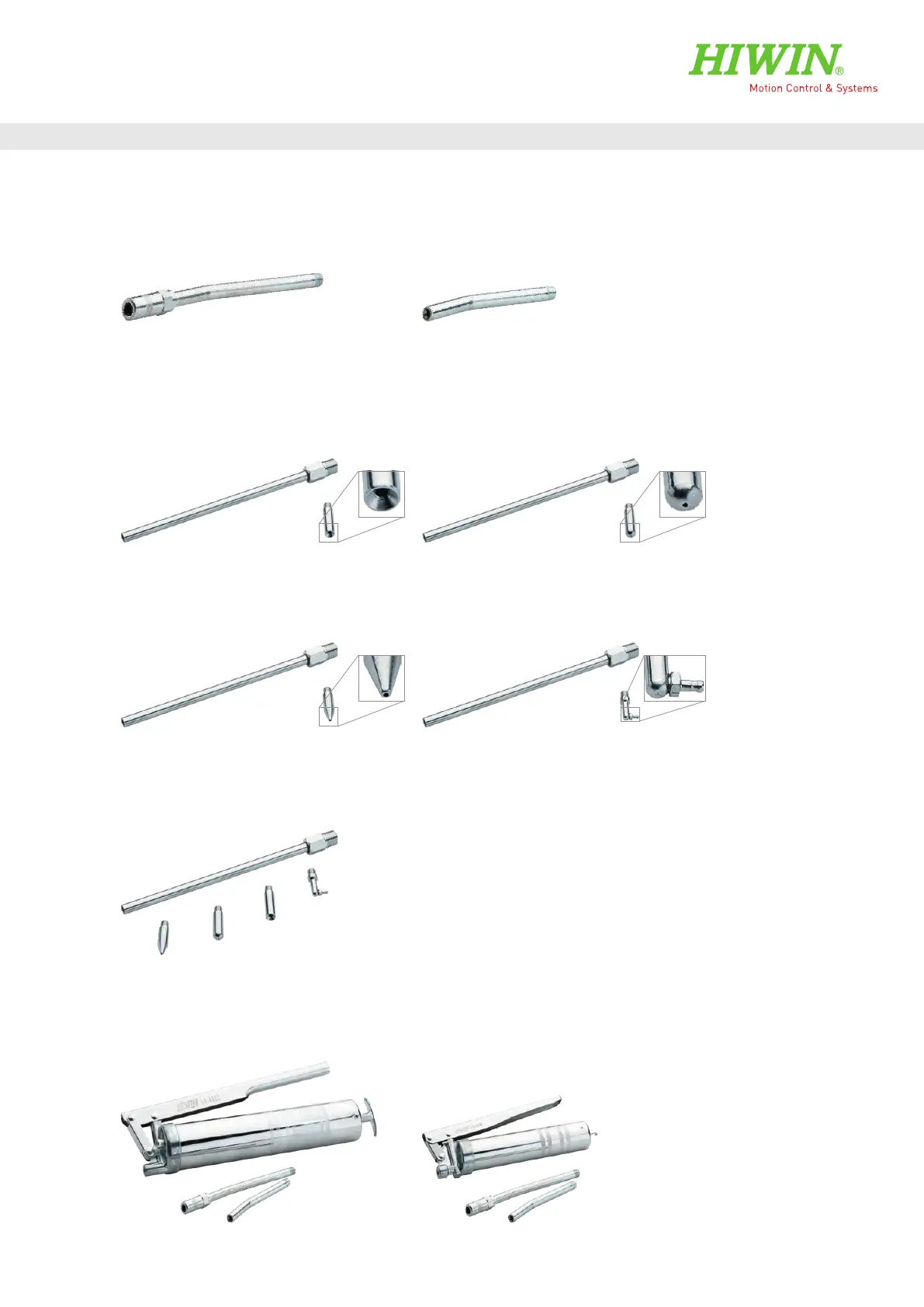

8.9 Grease guns and lubrication adapters
A1: Hydraulic coupling
Suitable for conical grease nipples acc. to DIN 71412, outer
diameter 15 mm
A3: Hollow mouthpiece with lubrication adapter
Suitable for ball grease nipples acc. to DIN 3402, outer
diameter 6 mm
A5: Tip mouthpiece with lubrication adapter
Set of lubrication adapter and nozzles
Set GN-80M: Small grease gun and adapters A1, A2Set GN-400C: Large grease gun and adapters A1, A2
A6: Angled tip mouthpiece with lubrication adapter
A4: Ball type mouthpiece
Suitable for funnel-type grease nipples acc. to DIN 3405,
outer diameter 6 mm
A2: Hollow mouthpiece
Suitable for conical or ball grease nipples acc. to DIN 71412/
DIN 3402, outer diameter 10 mm
Fig. 8.15 A1 Fig. 8.16 A2
Fig. 8.17 A3 Fig. 8.18 A4
Fig. 8.19 A5 Fig. 8.20 A6
Fig. 8.21 Lubrication adapter and nozzles A3, A4, A5, A6
Fig. 8.22 GN-400C Fig. 8.23 GN-80M
