Hobart Handler 125 User Manual

OM-947 Page 42
1
804 243-A
2
3
5 − See Table 9-1
4
6
7
7

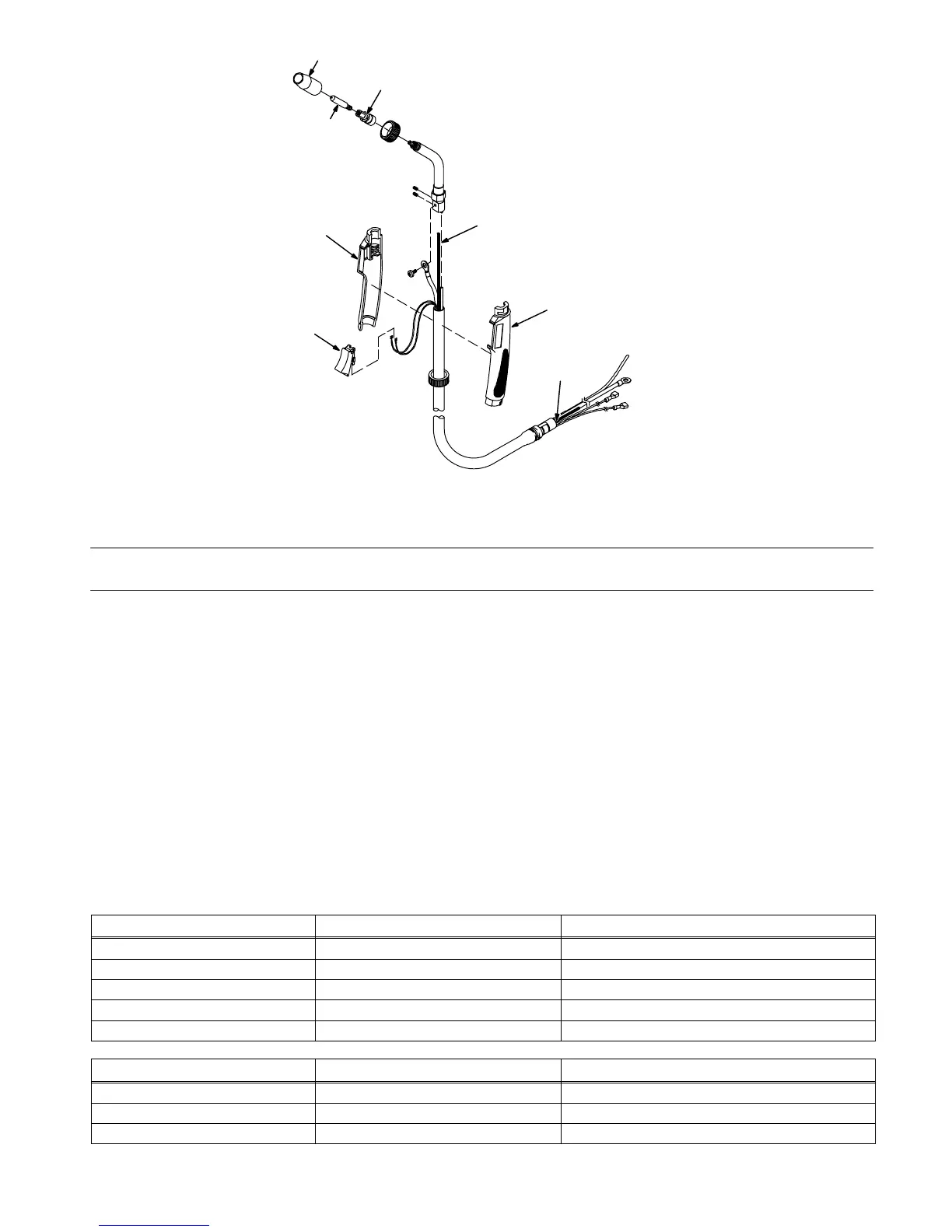

Figure 9-2. H-9B Gun
Description
Part
No.
195 157R
Item
No.
Figure 9-2. H-9B Gun
Quantity
1 169 715 NOZZLE, slip type .500 orf flush 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 ♦226 190 NOZZLE, flux cored slip type 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 169 716 ADAPTER, contact tip 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 225 410 SWITCH, trigger 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 210 970 LINER, monocoil .023/.035 wire x 8ft 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 ♦087 299 TIP, contact scr .023 wire x 1.125. . . . . . . . . . . . . . . . . . .
5 000 067 TIP, contact scr .030 wire x 1.125 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 ♦000 068 TIP, contact scr .035 wire x 1.125. . . . . . . . . . . . . . . . . . .
6 226 010 NUT, liner retainer 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 226 080 HANDLE ASSY 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
♦OPTIONAL
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
Table 9-1. Contact Tip Options
HOBART PART NO. DESCRIPTION REMARKS
196 134 Tip, contact scr .023 wire Pkg of 5
196 131 Tip, contact scr .030 wire Pkg of 5
196 132 Tip, contact scr .035 wire Pkg of 5
196 137 Nozzle, slip type .500 orf flush Qty 1
196 135 Adapter, contact tip Qty 1
WELD-IT PART NO. DESCRIPTION REMARKS
770 174 Tip, contact scr .023 wire Pkg of 5
770 177 Tip, contact scr .030 wire Pkg of 5
770 180 Tip, contact scr .035 wire Pkg of 5

Hobart Handler 125 Specifications

General

Input Voltage	115V
Amperage Output	25-125A
Duty Cycle	20% @ 90A
Weldable Materials	Steel, Stainless Steel, Aluminum
Weight	57 lbs
Processes	MIG (GMAW)
Maximum Material Thickness	3/16 inch
Wire Size	0.023-0.035 inch
