Hobart Handler 125 User Manual

OM-947 Page 43
803 442-B
4
5
1
6
7
8
9
2
3

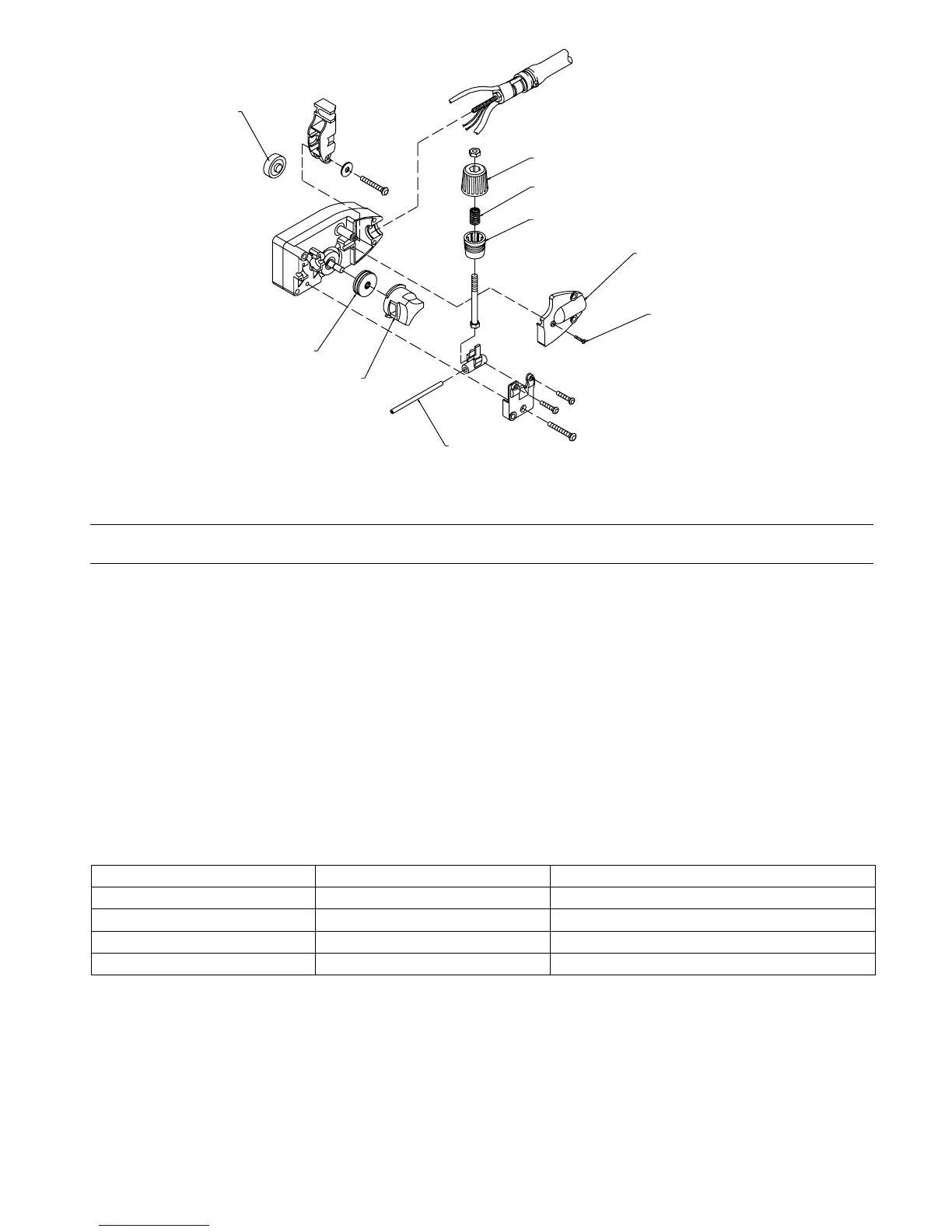

Figure 9-3. Wire Drive Assembly
QuantityDescription
Part
No.
209 532
Item
No.
Figure 9-3. Wire Drive Assembly
1 212 377 BEARING, idler 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 212 379 ROLL, drive .024-.030/.035 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 212 383 RETAINER, feedroll 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 212 368 GUIDE, wire inlet 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 212 384 COVER, torch 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 212 385 KNOB, tension 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 212 387 SPRING, compression 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 212 388 CUP, spring 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 212 389 SCREW, torch cover 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
Table 9-2. Options
PART NO. DESCRIPTION REMARKS
194 776 Small Running Gear/Cylinder Rack For One Small Gas Cylinder, 75 lb (34 kg)
195 158 MIG Conversion Kit For Gas Metal Arc Welding (GMAW)
195 216 Hub Kit For 8 in Wire Spool
195 186 Protective Cover Weatherproof Nylon
NOTE: If individual parts are required, see Parts List chapter of this manual for part number to order.

Hobart Handler 125 Specifications

General

Input Voltage	115V
Amperage Output	25-125A
Duty Cycle	20% @ 90A
Weldable Materials	Steel, Stainless Steel, Aluminum
Weight	57 lbs
Processes	MIG (GMAW)
Maximum Material Thickness	3/16 inch
Wire Size	0.023-0.035 inch
