Hobart Handler 135 User Manual

OM-944 Page 30

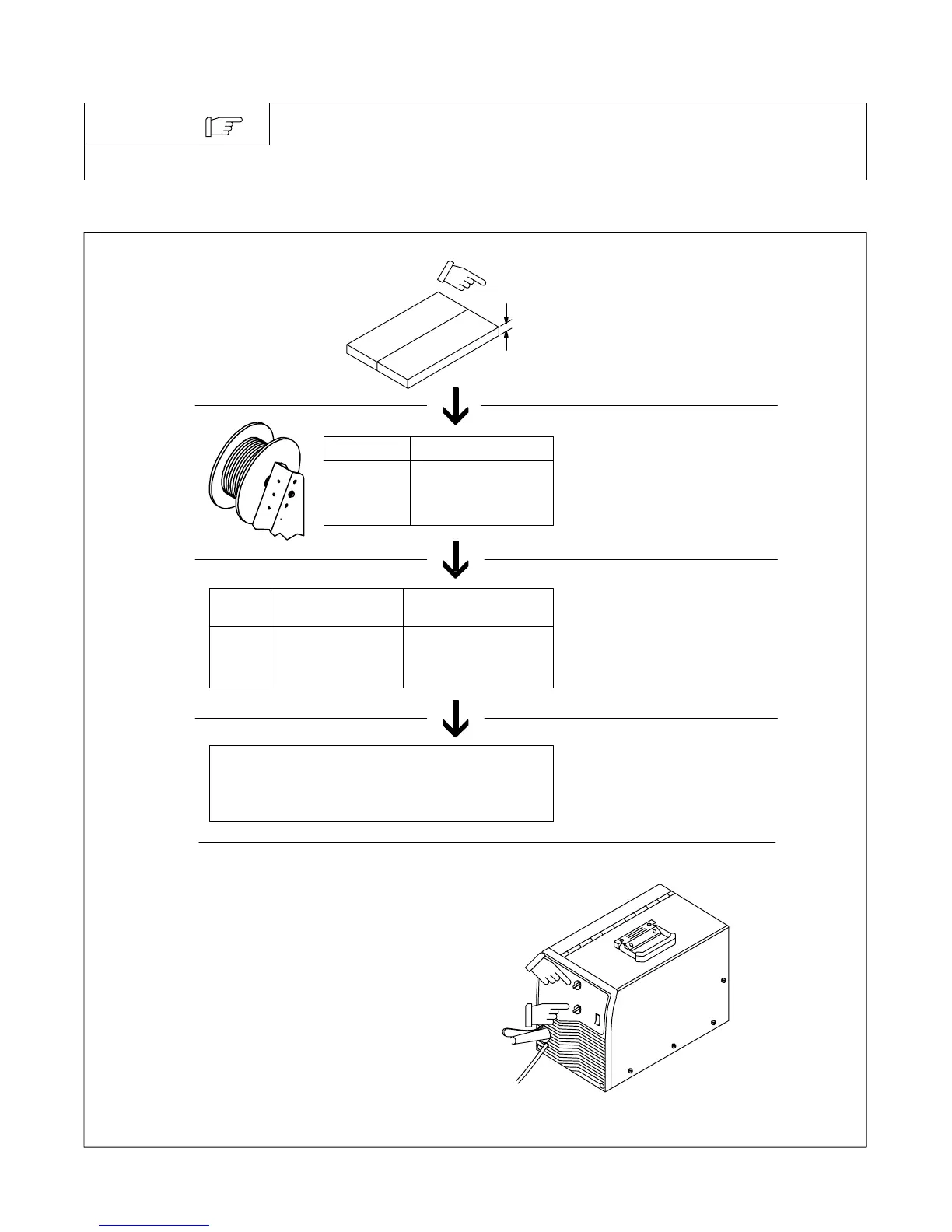

7-2. Typical MIG Process Control Settings
These settings are guidelines only. Material and wire type, joint design, fitup,
position, shielding gas, etc. affect settings. Test welds to be sure they comply to
specifications.
NOTE
1/8 or
.125 in
Material thickness determines weld
parameters.
Convert Material
(.001 in = 1 ampere)
.125 in = 125 A
Select Wire Size
Wire Size Amperage Range
.030 in
.035 in
.023 in
40 – 145 A
50 – 180 A
30 – 90 A
.035 in
Select Wire Speed
Select Voltage
Wire
Recommendation
.030 in
.035 in
.023 in
2 in per ampere
1.6 in per ampere
3.5 in per ampere
Wire Speed
2 x 125 A = 250 ipm
1.6 x 125 A = 200 ipm
3.5 x 125 A = 437 ipm
Set voltage midway between high/low voltage.
Low voltage: wire stubs into work
High voltage: arc is unstable (spatter)
125 A based on 1/8 in
Thickness to
(Amperage)
material thickness
Size (Approx.)
Amperage (A)
ipm = inch per minute
Ref. 802 439
Voltage controls height and width of
weld bead.
Wire speed (amperage) controls weld pe-
netration (wire speed = burn-off rate)

Hobart Handler 135 Specifications

General

Amperage Output	25-135A
Wire Feed Speed	40-700 IPM
Input Current	20A
Output Current Range	25 - 135 A
Welding Processes	MIG (GMAW)
Maximum Material Thickness	1/4 inch
Input Frequency	60 Hz
Wire Size Range	0.023-0.035 inch
Input Phase	Single Phase
