Hobart Handler 135 User Manual

OM-944 Page 17
3-8. Electrical Service Guide For 230 VAC Model
Input Voltage
230
Input Amperes At Rated Output
20
Max Recommended Standard Fuse Or Circuit Breaker Rating In Amperes
20
Min Input Conductor Size In AWG/Kcmil
14
Max Recommended Input Conductor Length In Feet (Meters)
66 (20)
Min Grounding Conductor Size In AWG/Kcmil
12
Reference: 1996 National Electrical Code (NEC) S-0092-J

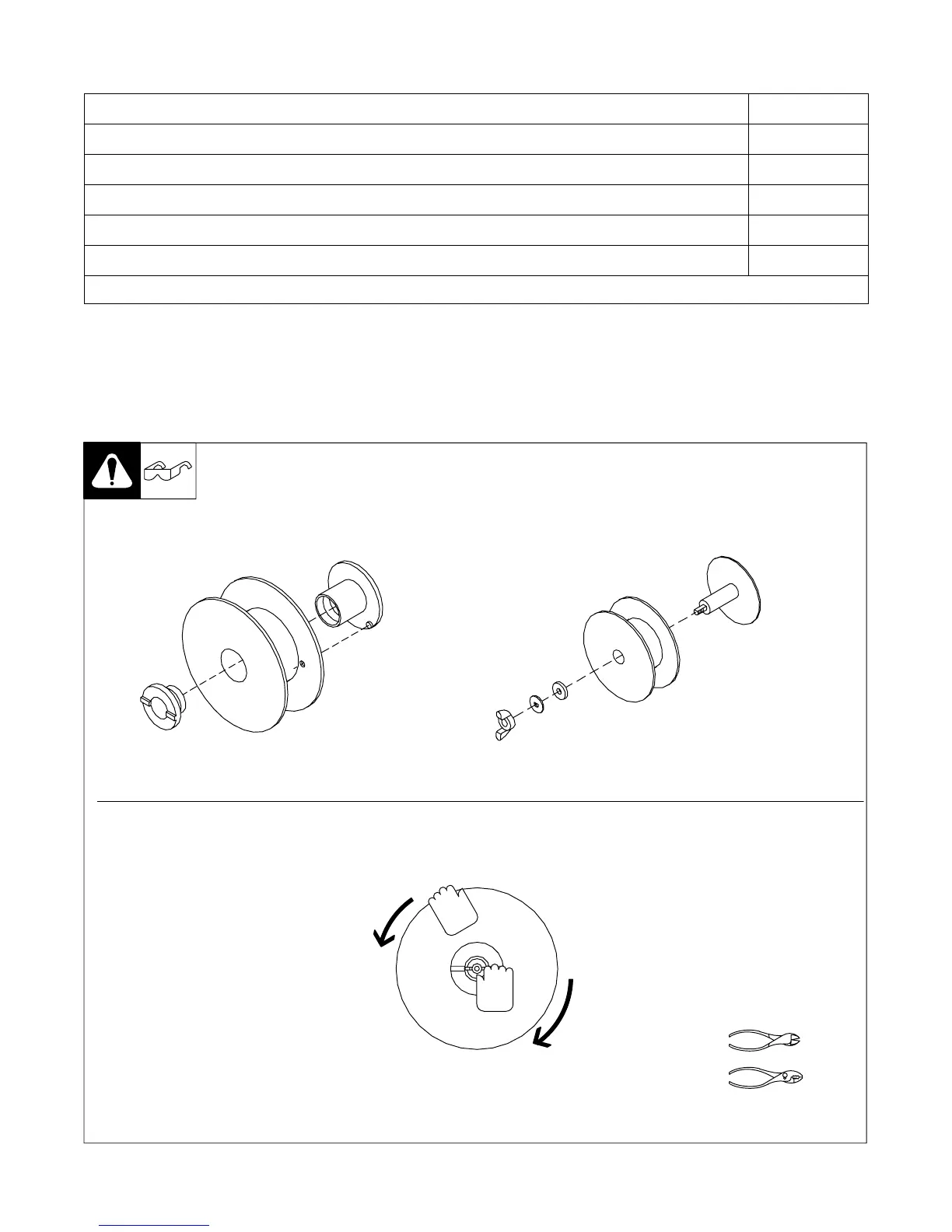

3-9. Installing Wire Spool And Adjusting Hub Tension
S-0499
15/16 in
Standard Wire Spool (8 in)
1 Lb Wire Spool (4 in)
Turn wingnut. When a slight force is
needed to turn spool, tension is set.
Tools Needed:
Adjusting Hub Tension
Install spool so welding wire feeds from bottom.

Hobart Handler 135 Specifications

General

Amperage Output	25-135A
Wire Feed Speed	40-700 IPM
Input Current	20A
Output Current Range	25 - 135 A
Welding Processes	MIG (GMAW)
Maximum Material Thickness	1/4 inch
Input Frequency	60 Hz
Wire Size Range	0.023-0.035 inch
Input Phase	Single Phase
