OM-944 Page 18

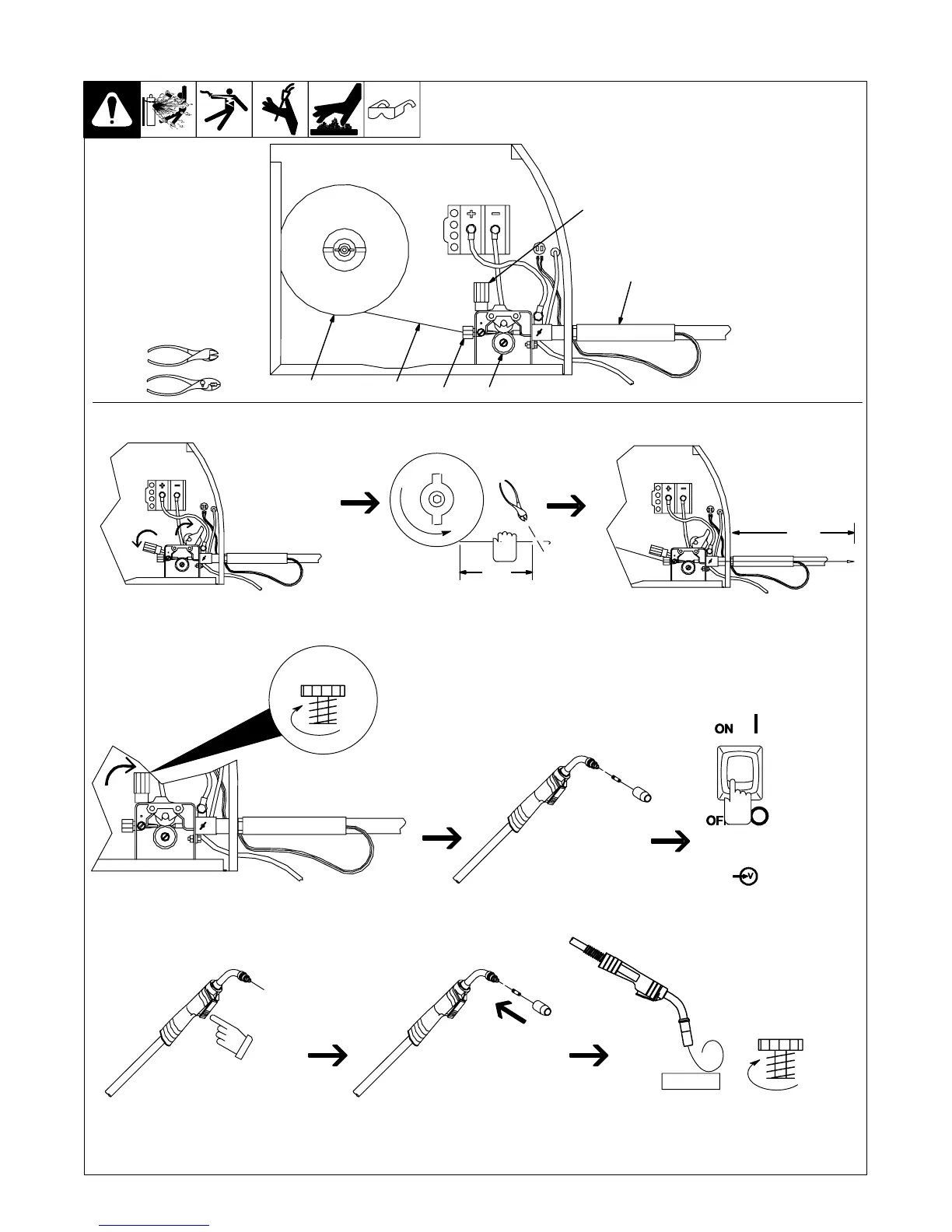

3-10. Threading Welding Wire
1 Wire Spool
2 Welding Wire
3 Inlet Wire Guide
4 Pressure Adjustment Knob
5 Drive Roll
6 Gun Conduit Cable
Lay gun cable out straight.
Tools Needed:
6
1
3
4
5
6 in
(150 mm)
Pull and hold wire; cut off end.
4 in
(102 mm)
Tighten
Remove gun nozzle and contact tip.
Open pressure assembly.
Push wire thru guides into gun;
continue to hold wire.
Close and tighten pressure
assembly, and let go of wire.
. Hold wire tightly to keep it
from unraveling.
Ref. 802 444 / Ref. 205 837
WOOD
Feed wire to check drive roll pressure.
Tighten knob enough to prevent slipping.
Cut off wire. Close door.
Press gun trigger until wire comes
out of gun.
Reinstall contact tip and nozzle.
2
Turn power on.
INPUT
POWER
To Next Page
