Hobart Handler 140 User Manual

. A complete Parts List is available at www.HobartWelders.com
OM-925 Page 12

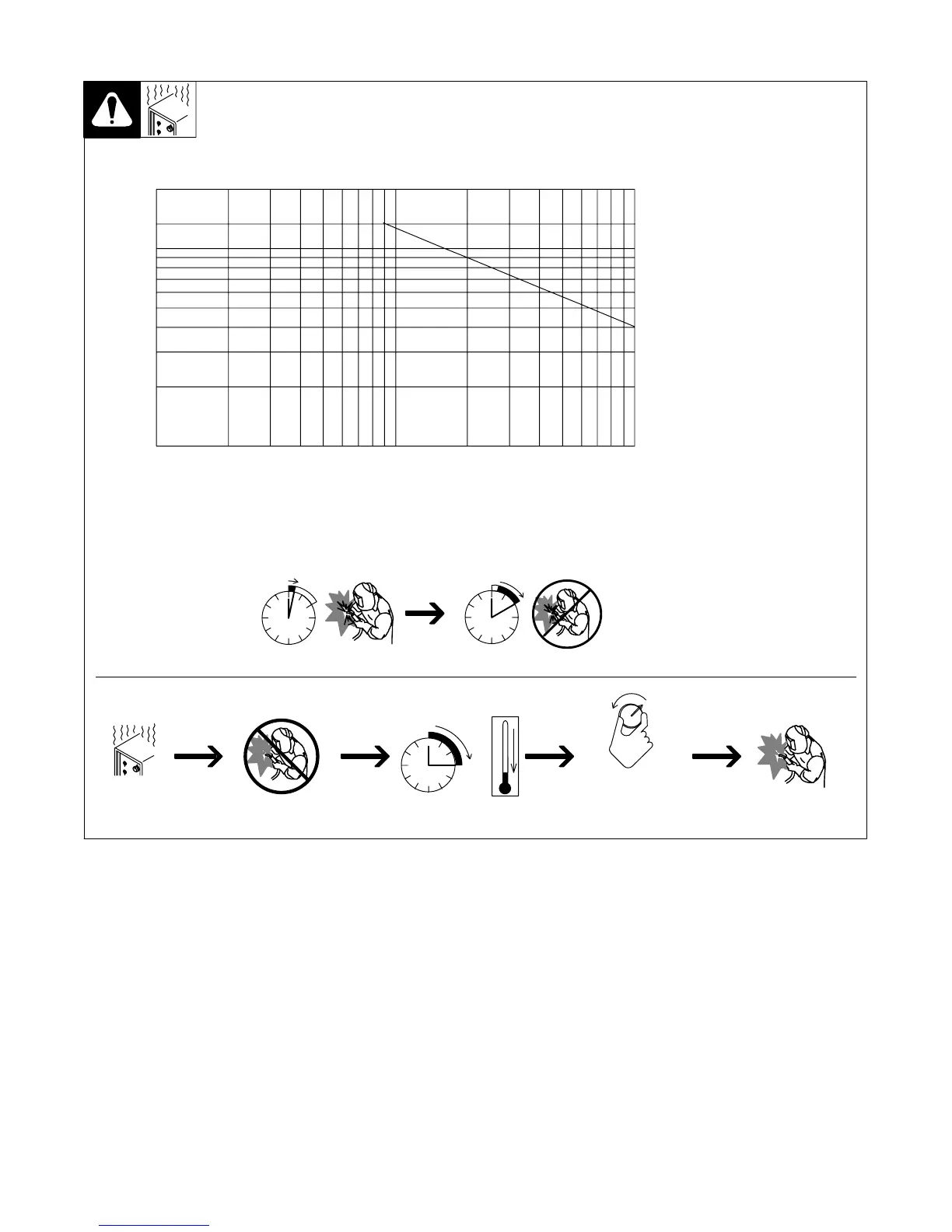

4-2. Duty Cycle And Overheating
Duty Cycle is percentage of 10
minutes that unit can weld at rated
load without overheating.
If unit overheats, thermostat(s)
opens, output stops, and cooling
fan runs. Wait fifteen minutes for
unit to cool. Reduce amperage or
duty cycle before welding.
NOTICE − Exceeding duty cycle
can damage unit or gun and void
warranty.
Overheating
0
15
A or V
OR
Reduce Duty Cycle
Minutes
duty1 4/95 − 217 623-A
20% duty cycle at 90 amps
1
410
20
40 60 100
2
6808
10
20
40
60
80
100
200
140
Duty Cycle %
Output Amperes
2 Minutes Welding 8 Minutes Resting

Hobart Handler 140 Specifications

General

Input Voltage	115V
Welding Amperage Range	25-140 A
Duty Cycle	20% @ 90A
Wire Feed Speed Range	40-700 IPM
Weldable Materials	Mild Steel, Stainless Steel, Aluminum
Weight	57 lbs
Processes	MIG (GMAW), Flux-Cored (FCAW)
Input Current	20A
Welding Thickness	24 ga. - 1/4 in.
Input Phase	Single Phase
Maximum Open Circuit Voltage	28V
Wire Size Range	0.023 - 0.035 in
