Hobart Handler 140 User Manual

. A complete Parts List is available at www.HobartWelders.com
OM-925 Page 29

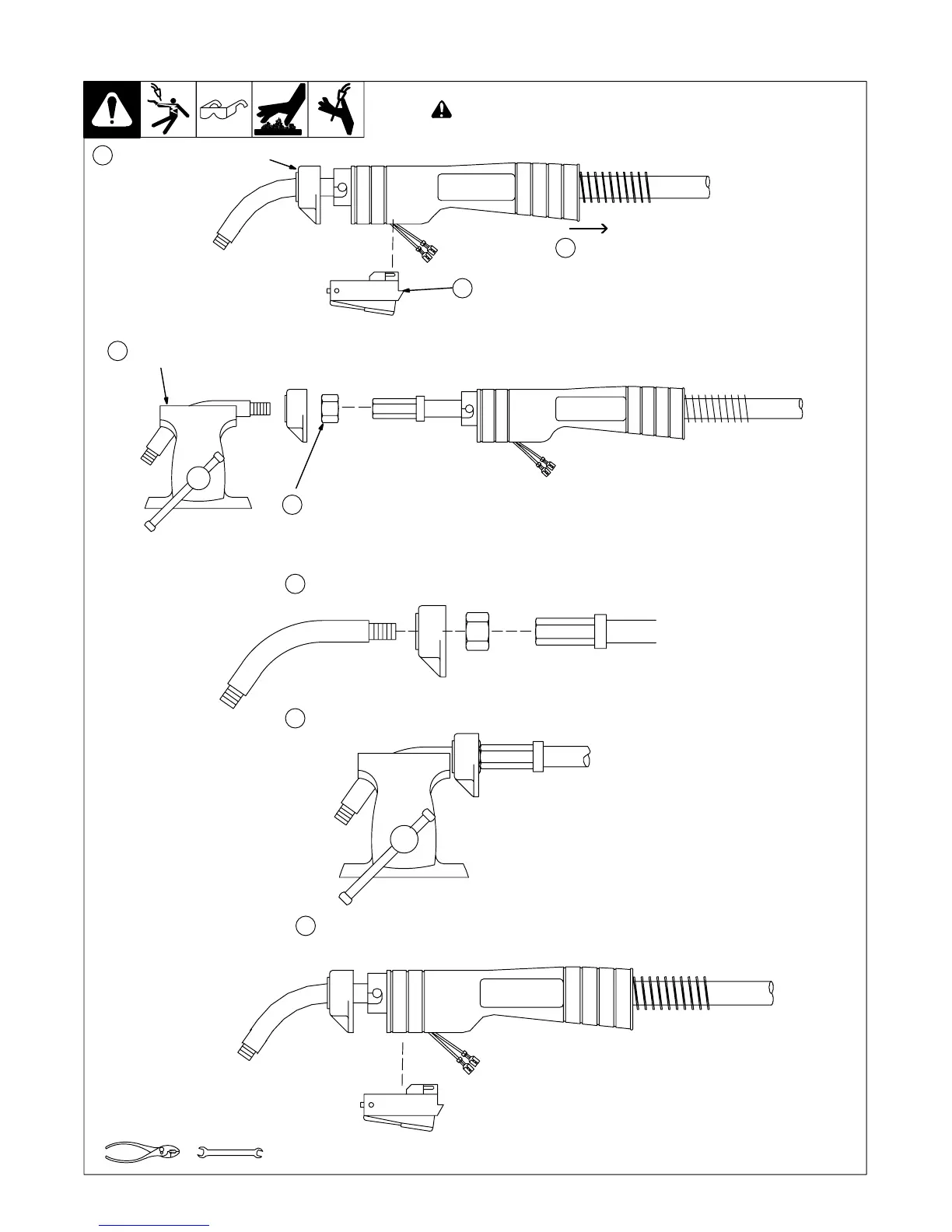

7-7. Replacing Switch And/Or Head Tube
Ref. 800 795-C
Tools Needed:
19 mm
Remove handle locking nut.
Slide handle.
Secure head tube in vice.
Loosen jam nut. Remove from vice
and turn head tube out by hand.
Hand-tighten head tube into cable connector.
Place head tube in vice and tighten until nuts are tight.
Remove from vice. Reposition handle and install
switch housing. Secure with handle locking nut.
! Turn Off welding power source
/wire feeder and disconnect gun.
Remove switch housing. Install new switch and
connect leads (polarity is not important). Reassemble
in reverse order. If replacing head tube, continue to
end of figure.
1
3
2
4
5
8
6
7

Hobart Handler 140 Specifications

General

Input Voltage	115V
Welding Amperage Range	25-140 A
Duty Cycle	20% @ 90A
Wire Feed Speed Range	40-700 IPM
Weldable Materials	Mild Steel, Stainless Steel, Aluminum
Weight	57 lbs
Processes	MIG (GMAW), Flux-Cored (FCAW)
Input Current	20A
Welding Thickness	24 ga. - 1/4 in.
Input Phase	Single Phase
Maximum Open Circuit Voltage	28V
Wire Size Range	0.023 - 0.035 in
