. A complete Parts List is available at www.HobartWelders.com
OM-925 Page 11

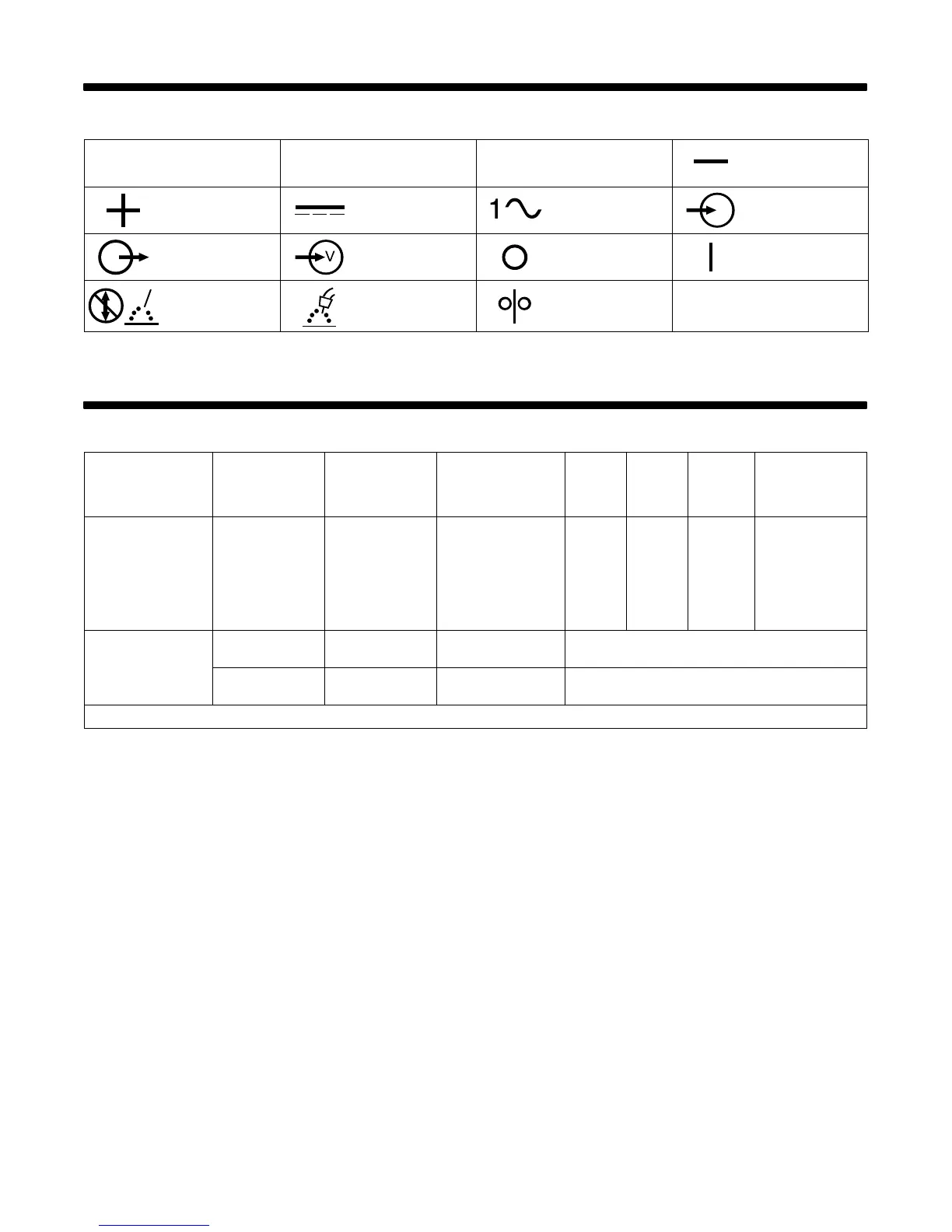

SECTION 3 − DEFINITIONS
3-1. Symbols And Definitions
A
Amperage
V
Voltage
Hz
Hertz Negative
Positive
Direct Current
(DC)
Single Phase Input
Output Voltage Input Off On
Do Not Switch
While Welding
Gas Metal Arc
Welding (GMAW)
Wire Feed
SECTION 4 − SPECIFICATIONS
4-1. Specifications
Rated Welding
Output
Amperage
Range
Maximum Open-
Circuit Voltage
DC
Amperes Input at
Rated Load Output
115 V, 60 Hz, Single-
Phase
KVA KW
Weight
W/ Gun
Overall
Dimensions
90 A @ 19 Volts DC,
20% Duty Cycle
63 A @ 21 Volts DC,
20% Duty Cycle*
25 − 140
28
20
15*
2.90
2.20*
2.50
1.77*
57 lb
(26 kg)
Length: 19-1/2 in.
(495 mm)
Width: 10-5/8 in.
(270 mm)
Height: 12-3/8 in.
(314 mm)
Wire Type
And Diameter
Solid/
Stainless
Flux Cored Aluminum
Wire Feed Speed Range
.023 − .035 in.
(0.6 − 0.9 mm)
.030 − .035 in.
(0.8 − 0.9 mm)
.030 in.
(0.8 mm)
50 − 740 IPM (1.3 − 18.8 m/min) At No Load
40 − 700 IPM (1.0 − 17.8 m/min) Feeding Wire
* CSA Rating
